7. CLEANING

The front panel should not be cleaned with dissolvent or abrasive substances because silk-
printing could be damaged. To clean it, use a soft cloth slightly wet with water and neutral liquid soap;
dry it with a clean cloth. Be careful that water never gets into the unit through the holes of the front
panel.

8. FUNCTION LIST

1. USB port with LED indicator showing data activity
2. SD/SDHC card slot with LED indicator showing data activity
3. IR receiver
4. DATA LED indicating network traffic
5. PLAYER A key
6. PLAYER B key
7. LCD display
8. CONTROL digital encoder
9. MENU key
10. Transport bar (PREV/RW, STOP, PLAY/PAUSE and NEXT/FF)
11. Programmable function keys (F1-F5)
12. Remote control, RS-232 port
13. RJ45 connector, Ethernet
14. GPI ports
15. PLAYER A balanced stereo output
16. PLAYER B balanced stereo output
17. Mains socket
18. Fuse holder
19. Mains switch, POWER

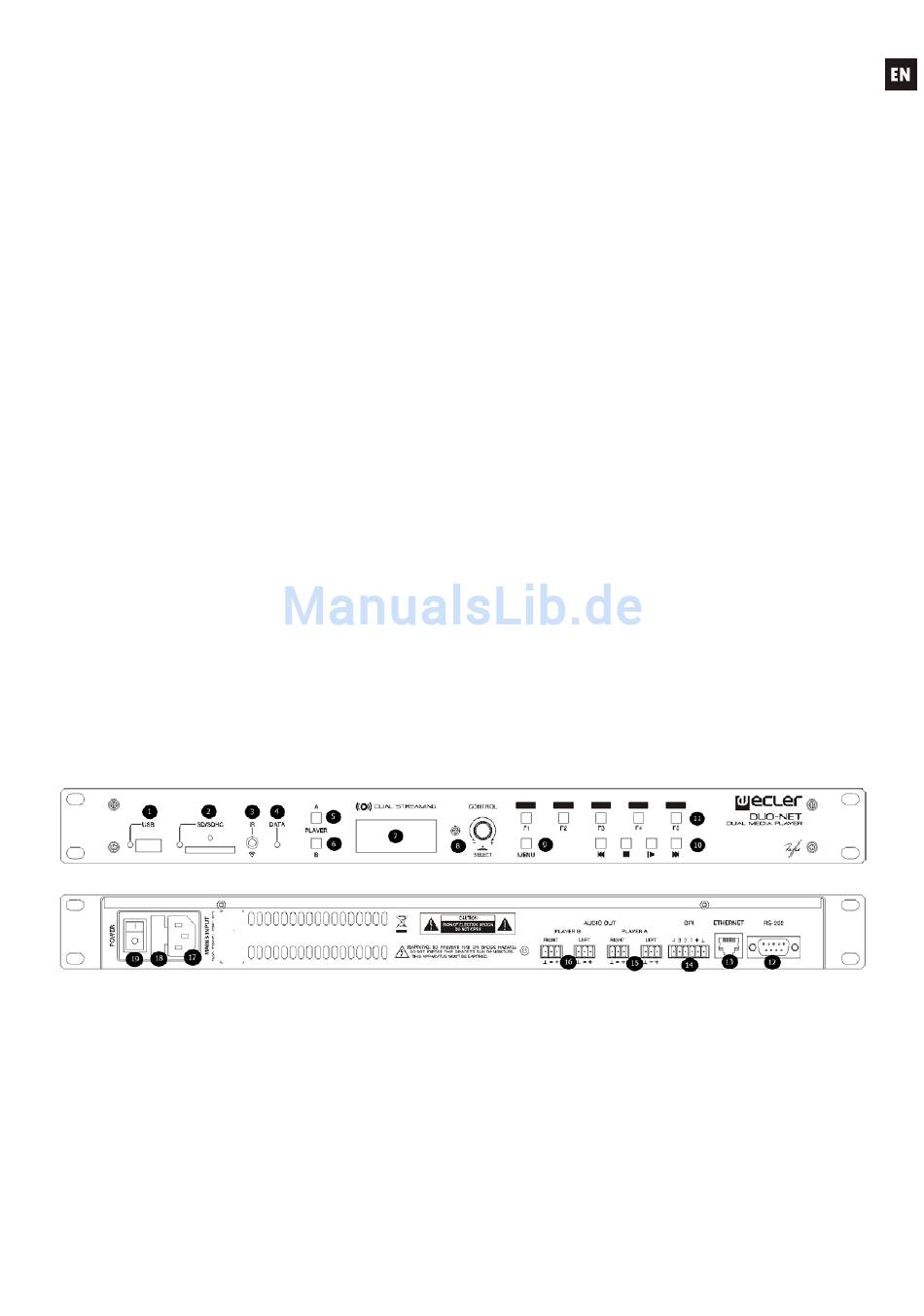

9. FUNCTION DIAGRAM
