Front panel controls and indicators:
o LCD display.
o Digital encoder to navigate in the menus and set the parameters.
o 7 backlit keys with pre-assigned function: MENU, PLAYER A, PLAYER B, STOP,
PLAY/PAUSE, NEXT/FF and PREV/RW.
o 5 backlit keys with programmable function: F1, F2, F3, F4 and F5.
To setup the DUO-NET PLAYER, you have to use the EclerNet Manager** application. See the
EclerNet Manager application manual for more information.
* For those applications where punctuality is a must, Ecler strongly recommends to use NTP
services.
**The EclerNet Manager application is available for download from www.ecler.com

3. INSTALLATION

3.1. Location, set up, ventilation

The PLAYER DUO-NET has been especially designed to be installed in a standard 19" rack,
taking up 1U.
In professional installations it is highly recommended to locate the device in the same rack as the
sound sources.
Since its power consumption is very low, forced ventilation is not necessary. However, avoid
exposing the device to extreme temperature and the environment in which it is placed should be as dry
and clean (no dust) as possible.

3.2. AC connection and powering on

The DUO-NET PLAYER operates using alternating current from 90 to 264 V and 47 to 63 Hz.
This device features an oversized power supply able to accept any country's voltage.
On the rear panel, the power on/off switch of the unit (19) is next to the IEC power connector.
The front panel LCD displays a "loading" message when the device is turned on.
To avoid buzzing, do not allow the power cable to intertwine with the audio shielded cables.

3.3. Audio output connections

The DUO-NET PLAYER features 2 separate balanced stereo outputs (one for each player) on
the rear panel.

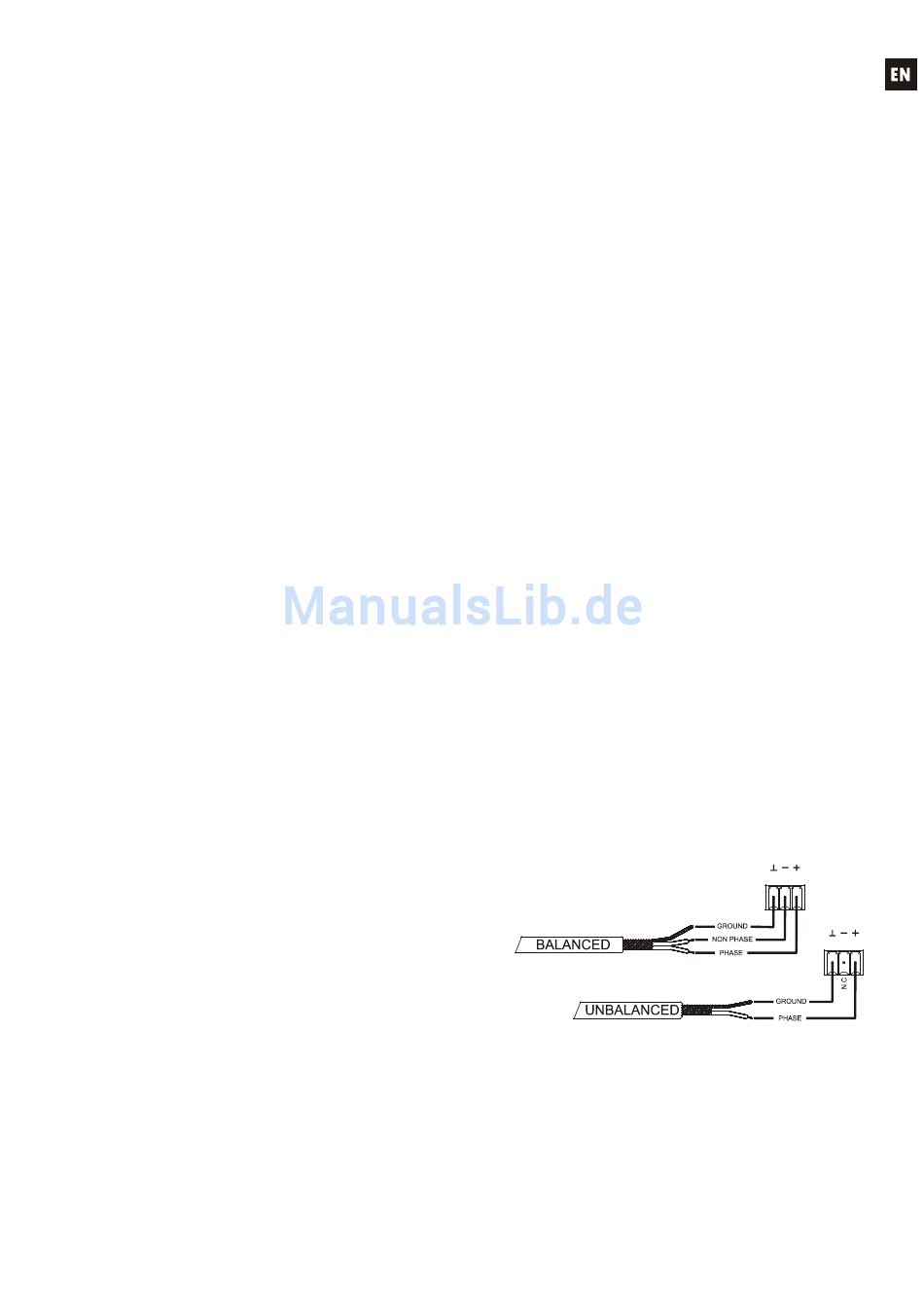

Signal outputs use 3-position screw terminal
blocks (Euroblocks). The wiring is as follows:
Hot or direct signal
Cold or inverted signal
Ground
For unbalanced connection, don't connect the
terminal -.
> Terminal +
> Terminal -
Terminal ⊥
>
