4. INSTALLATION
REFER TO GENERAL SAFETY INSTRUCTIONS
A safe electrostatic system installation requires compliance with all applicable safety standards and
requirements outlined in this manual. Any improper installation or misuse of the electrostatic coating
system can cause serious body injury, fire, explosion or electric shock hazard.
The European safety standard EN 50 053 covers installation and operation regulations of electrostatic
coating system.

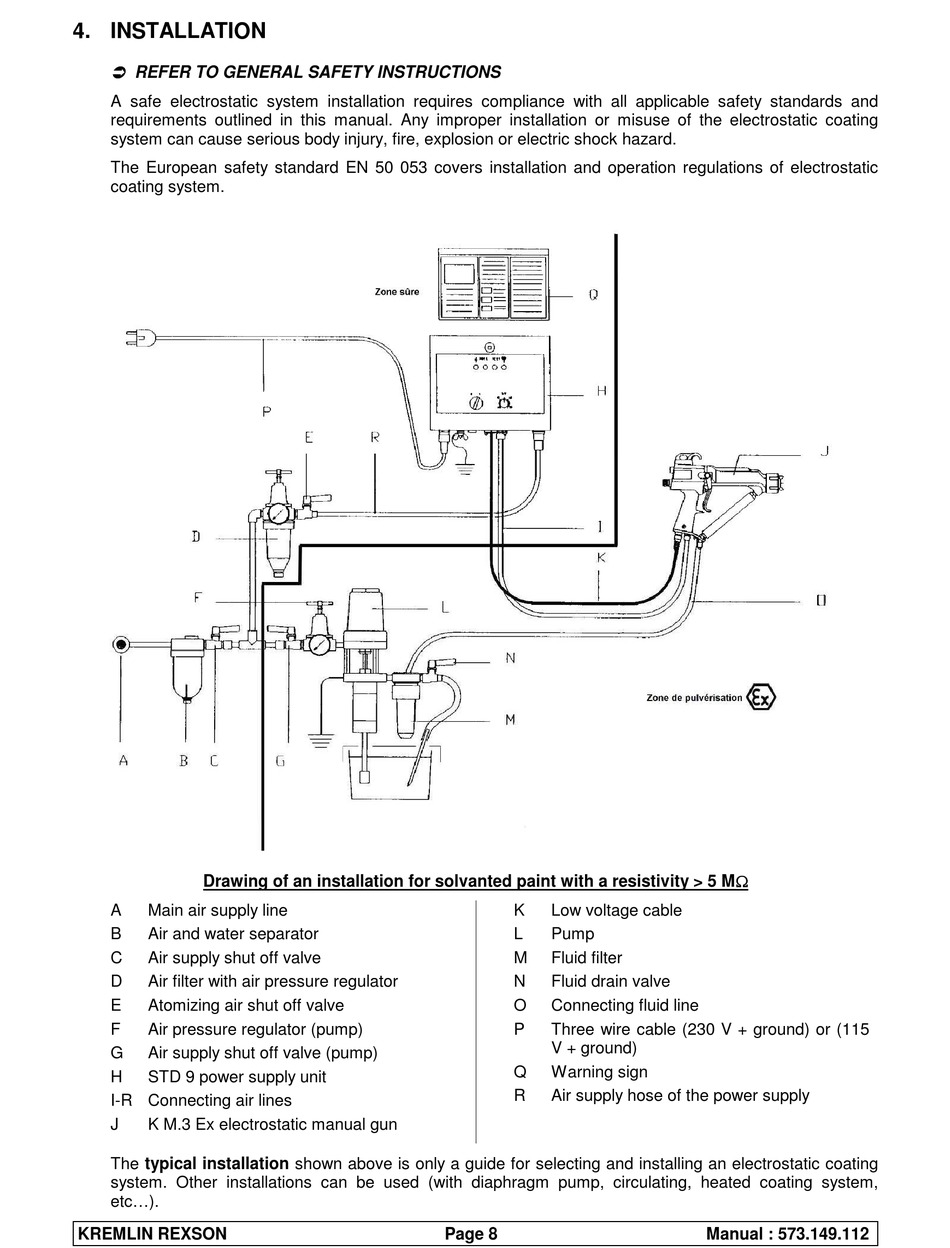

Drawing of an installation for solvanted paint with a resistivity > 5 M
A
Main air supply line
B
Air and water separator
C
Air supply shut off valve
D
Air filter with air pressure regulator
E
Atomizing air shut off valve
F
Air pressure regulator (pump)
G
Air supply shut off valve (pump)
H
STD 9 power supply unit
I-R Connecting air lines
J
K M.3 Ex electrostatic manual gun
The typical installation shown above is only a guide for selecting and installing an electrostatic coating
system. Other installations can be used (with diaphragm pump, circulating, heated coating system,
etc...).
KREMLIN REXSON
K
Low voltage cable
L
Pump
M
Fluid filter
N
Fluid drain valve
O
Connecting fluid line
P
Three wire cable (230 V + ground) or (115
V + ground)
Q
Warning sign
R
Air supply hose of the power supply
Page 8
Manual : 573.149.112
