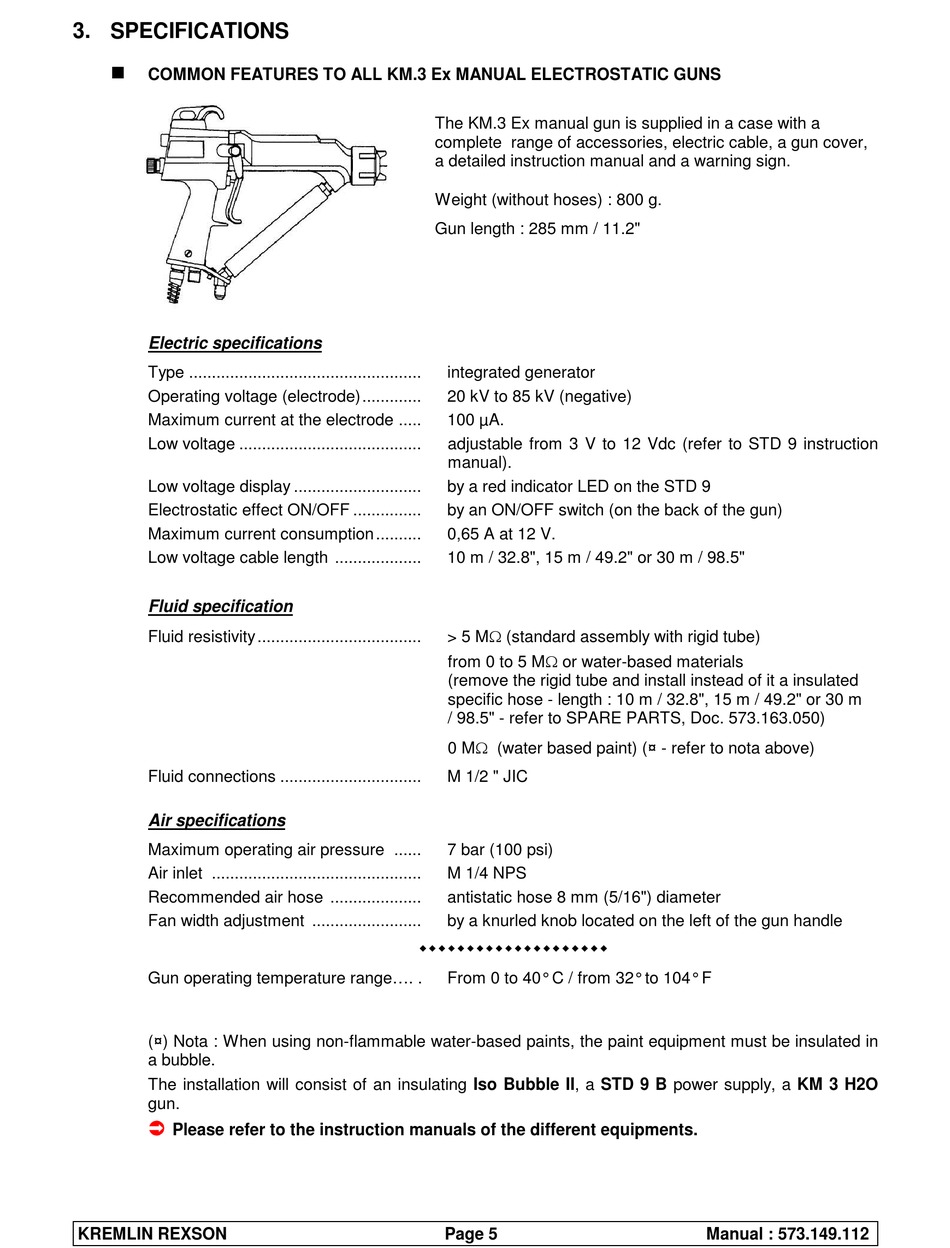

3. SPECIFICATIONS
COMMON FEATURES TO ALL KM.3 Ex MANUAL ELECTROSTATIC GUNS
Electric specifications
Type ...................................................
Operating voltage (electrode).............
Maximum current at the electrode .....
Low voltage ........................................
Low voltage display ............................
Electrostatic effect ON/OFF ...............
Maximum current consumption ..........
Low voltage cable length ...................
Fluid specification
Fluid resistivity ....................................
Fluid connections ...............................
Air specifications
Maximum operating air pressure ......
Air inlet ..............................................
Recommended air hose ....................
Fan width adjustment ........................
Gun operating temperature range.... .
(¤) Nota : When using non-flammable water-based paints, the paint equipment must be insulated in
a bubble.
The installation will consist of an insulating Iso Bubble II, a STD 9 B power supply, a KM 3 H2O
gun.
Please refer to the instruction manuals of the different equipments.
KREMLIN REXSON
The KM.3 Ex manual gun is supplied in a case with a
complete range of accessories, electric cable, a gun cover,
a detailed instruction manual and a warning sign.
Weight (without hoses) : 800 g.
Gun length : 285 mm / 11.2"
integrated generator
20 kV to 85 kV (negative)
100 µA.
adjustable from 3 V to 12 Vdc (refer to STD 9 instruction
manual).
by a red indicator LED on the STD 9
by an ON/OFF switch (on the back of the gun)
0,65 A at 12 V.
10 m / 32.8", 15 m / 49.2" or 30 m / 98.5"
> 5 M (standard assembly with rigid tube)
from 0 to 5 M or water-based materials
(remove the rigid tube and install instead of it a insulated
specific hose - length : 10 m / 32.8", 15 m / 49.2" or 30 m
/ 98.5" - refer to SPARE PARTS, Doc. 573.163.050)
0 M (water based paint) (¤ - refer to nota above)
M 1/2 " JIC
7 bar (100 psi)
M 1/4 NPS
antistatic hose 8 mm (5/16") diameter
by a knurled knob located on the left of the gun handle
From 0 to 40° C / from 32° to 104° F
Page 5
Manual : 573.149.112
