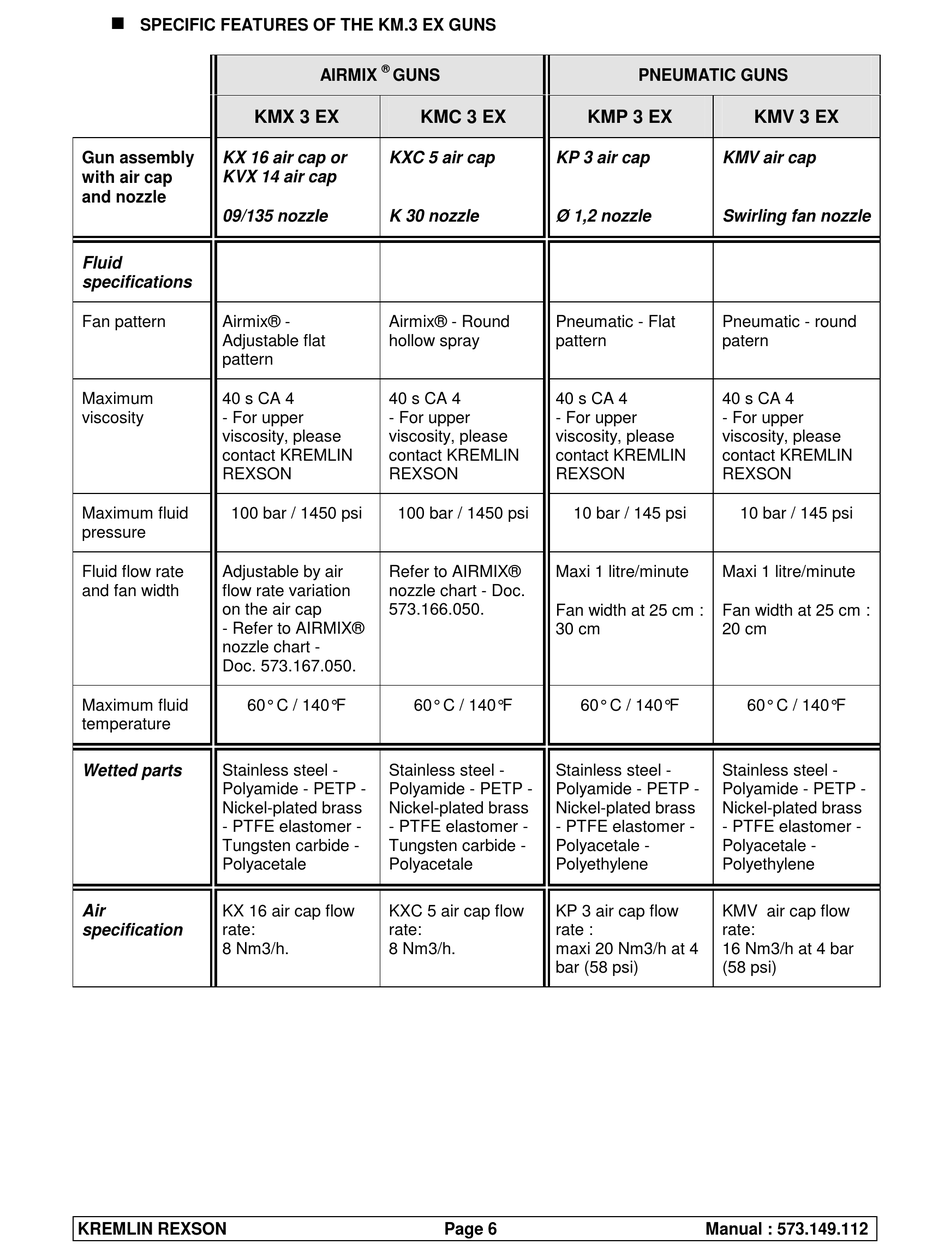

SPECIFIC FEATURES OF THE KM.3 EX GUNS
KMX 3 EX
Gun assembly
KX 16 air cap or
KVX 14 air cap
with air cap
and nozzle
09/135 nozzle
Fluid
specifications
Fan pattern
Airmix® -
Adjustable flat
pattern
Maximum
40 s CA 4
viscosity
- For upper
viscosity, please
contact KREMLIN
REXSON
Maximum fluid
100 bar / 1450 psi
pressure
Fluid flow rate
Adjustable by air
and fan width
flow rate variation
on the air cap
- Refer to AIRMIX®
nozzle chart -
Doc. 573.167.050.
Maximum fluid
60° C / 140°F
temperature
Wetted parts
Stainless steel -
Polyamide - PETP -
Nickel-plated brass
- PTFE elastomer -
Tungsten carbide -
Polyacetale
KX 16 air cap flow
Air
rate:
specification
8 Nm3/h.
KREMLIN REXSON
®
AIRMIX
GUNS
KMC 3 EX
KXC 5 air cap
K 30 nozzle
Airmix® - Round
hollow spray
40 s CA 4
- For upper
viscosity, please
contact KREMLIN
REXSON
100 bar / 1450 psi
Refer to AIRMIX®
nozzle chart - Doc.
573.166.050.
60° C / 140°F
Stainless steel -
Polyamide - PETP -
Nickel-plated brass
- PTFE elastomer -
Tungsten carbide -
Polyacetale
KXC 5 air cap flow
rate:
8 Nm3/h.
Page 6
PNEUMATIC GUNS
KMP 3 EX
KP 3 air cap
KMV air cap
Ø 1,2 nozzle
Swirling fan nozzle
Pneumatic - Flat
Pneumatic - round
pattern
patern
40 s CA 4
40 s CA 4
- For upper
- For upper
viscosity, please
viscosity, please
contact KREMLIN
contact KREMLIN
REXSON
REXSON
10 bar / 145 psi
Maxi 1 litre/minute
Maxi 1 litre/minute
Fan width at 25 cm :
Fan width at 25 cm :
30 cm
20 cm
60° C / 140°F
Stainless steel -
Stainless steel -
Polyamide - PETP -
Polyamide - PETP -
Nickel-plated brass
Nickel-plated brass
- PTFE elastomer -
- PTFE elastomer -
Polyacetale -
Polyacetale -
Polyethylene
Polyethylene
KP 3 air cap flow
KMV air cap flow
rate :
rate:
maxi 20 Nm3/h at 4
16 Nm3/h at 4 bar
bar (58 psi)
(58 psi)
Manual : 573.149.112
KMV 3 EX
10 bar / 145 psi
60° C / 140°F
