Frequency adjustment

Page 10 von 12
The crossover frequency of the add-on tweeter ELAC 4 PI PLUS.2 can be adjusted by means of a selector switch (2).
This enables maximum flexibility in regard of the adjustment of the main speakers and also in regard of your individual

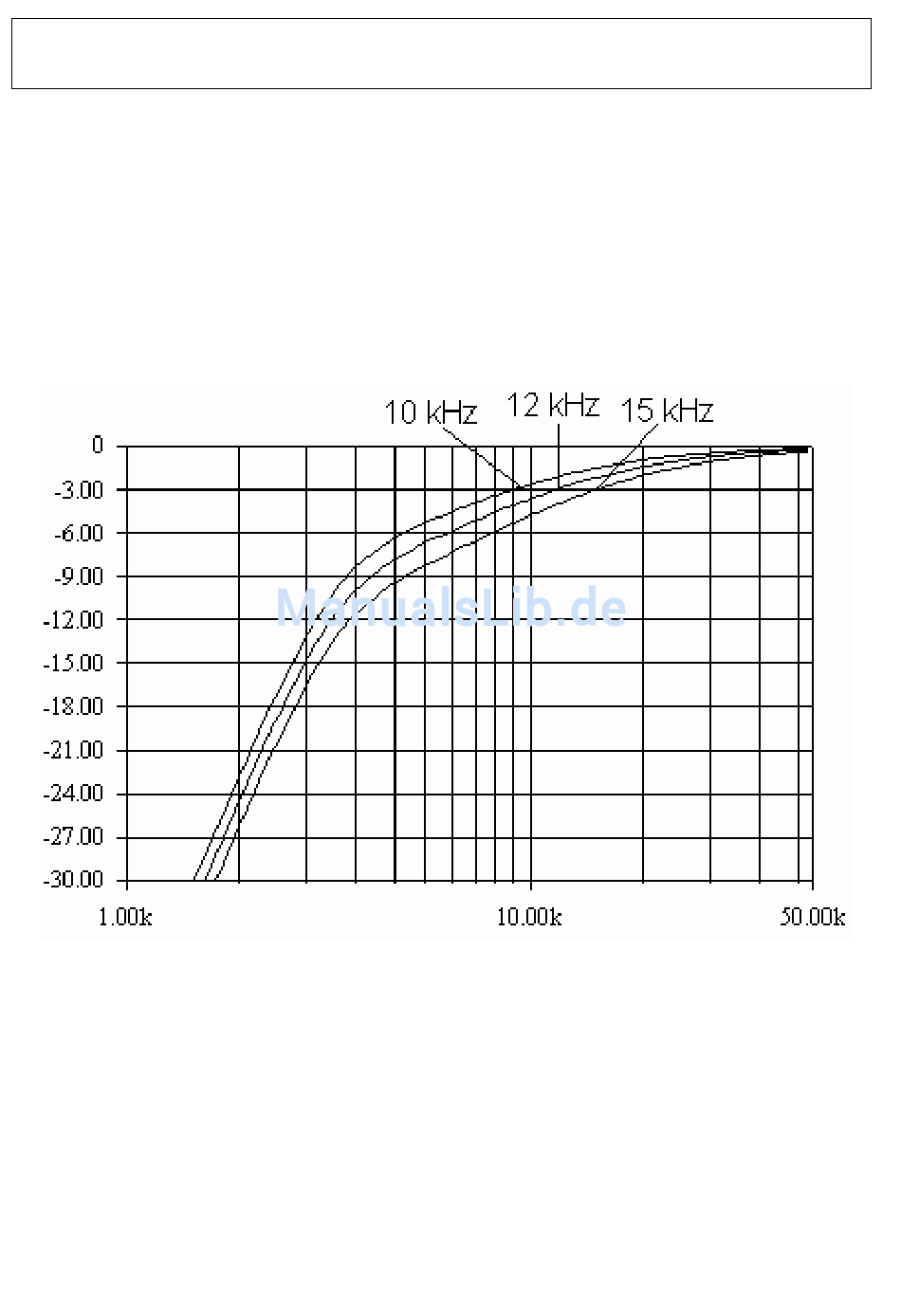

taste. The following figure shows the frequency responses of the ELAC 4 PI PLUS.2, depending on the position of the
selector switch (2). The mid-position of the switch is "12 kHz". This is an appropriate position for other possible ad-
justments. If the spacious sound effect of the 4 PI PLUS.2 shall be increased, the switch should be turned to "10
kHz". The adjustment of the position "15 kHz" enables the 4 PI PLUS.2 to reproduce only the highest frequencies.
This way, the room is excited by only these frequencies and there is a low effect of spaciousness.
