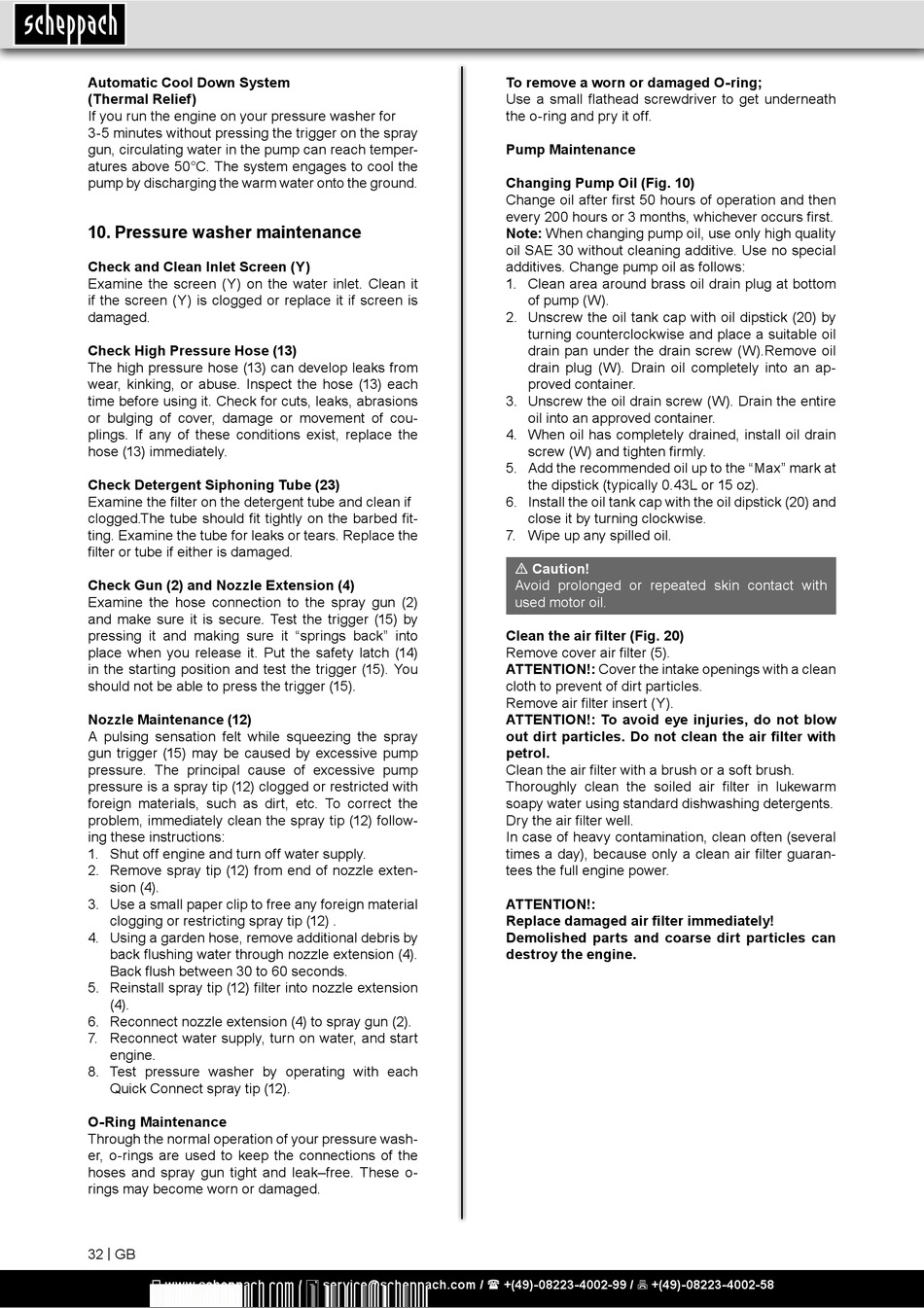

Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray
gun, circulating water in the pump can reach temper-
atures above 50°C. The system engages to cool the
pump by discharging the warm water onto the ground.

10. Pressure washer maintenance

Check and Clean Inlet Screen (Y)
Examine the screen (Y) on the water inlet. Clean it
if the screen (Y) is clogged or replace it if screen is
damaged.
Check High Pressure Hose (13)
The high pressure hose (13) can develop leaks from
wear, kinking, or abuse. Inspect the hose (13) each
time before using it. Check for cuts, leaks, abrasions
or bulging of cover, damage or movement of cou-
plings. If any of these conditions exist, replace the
hose (13) immediately.
Check Detergent Siphoning Tube (23)
Examine the filter on the detergent tube and clean if
clogged.The tube should fit tightly on the barbed fit-
ting. Examine the tube for leaks or tears. Replace the
filter or tube if either is damaged.
Check Gun (2) and Nozzle Extension (4)
Examine the hose connection to the spray gun (2)
and make sure it is secure. Test the trigger (15) by
pressing it and making sure it "springs back" into
place when you release it. Put the safety latch (14)
in the starting position and test the trigger (15). You
should not be able to press the trigger (15).
Nozzle Maintenance (12)
A pulsing sensation felt while squeezing the spray
gun trigger (15) may be caused by excessive pump
pressure. The principal cause of excessive pump
pressure is a spray tip (12) clogged or restricted with
foreign materials, such as dirt, etc. To correct the
problem, immediately clean the spray tip (12) follow-
ing these instructions:
1. Shut off engine and turn off water supply.
2. Remove spray tip (12) from end of nozzle exten-
sion (4).
3. Use a small paper clip to free any foreign material
clogging or restricting spray tip (12) .
4. Using a garden hose, remove additional debris by
back flushing water through nozzle extension (4).
Back flush between 30 to 60 seconds.
5. Reinstall spray tip (12) filter into nozzle extension
(4).
6. Reconnect nozzle extension (4) to spray gun (2).
7. Reconnect water supply, turn on water, and start
engine.
8. Test pressure washer by operating with each
Quick Connect spray tip (12).
O-Ring Maintenance
Through the normal operation of your pressure wash-
er, o-rings are used to keep the connections of the
hoses and spray gun tight and leak–free. These o-
rings may become worn or damaged.
32 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
To remove a worn or damaged O-ring;
Use a small flathead screwdriver to get underneath
the o-ring and pry it off.
Pump Maintenance
Changing Pump Oil (Fig. 10)
Change oil after first 50 hours of operation and then
every 200 hours or 3 months, whichever occurs first.
Note: When changing pump oil, use only high quality
oil SAE 30 without cleaning additive. Use no special
additives. Change pump oil as follows:
1. Clean area around brass oil drain plug at bottom
of pump (W).
2. Unscrew the oil tank cap with oil dipstick (20) by
turning counterclockwise and place a suitable oil
drain pan under the drain screw (W).Remove oil
drain plug (W). Drain oil completely into an ap-
proved container.
3. Unscrew the oil drain screw (W). Drain the entire
oil into an approved container.
4. When oil has completely drained, install oil drain
screw (W) and tighten firmly.
5. Add the recommended oil up to the "Max" mark at
the dipstick (typically 0.43L or 15 oz).
6. Install the oil tank cap with the oil dipstick (20) and
close it by turning clockwise.
7. Wipe up any spilled oil.
m Caution!
Avoid prolonged or repeated skin contact with
used motor oil.
Clean the air filter (Fig. 20)
Remove cover air filter (5).
ATTENTION!: Cover the intake openings with a clean
cloth to prevent of dirt particles.
Remove air filter insert (Y).
ATTENTION!: To avoid eye injuries, do not blow
out dirt particles. Do not clean the air filter with
petrol.
Clean the air filter with a brush or a soft brush.
Thoroughly clean the soiled air filter in lukewarm
soapy water using standard dishwashing detergents.
Dry the air filter well.
In case of heavy contamination, clean often (several
times a day), because only a clean air filter guaran-
tees the full engine power.
ATTENTION!:
Replace damaged air filter immediately!
Demolished parts and coarse dirt particles can
destroy the engine.
