Assembly:
Unscrew the grille fastener anticlockwise to detach it from the front of the motor housing.
1.
Mount the rear grille against the front of the motor housing (VT 9 & 16: with the grip facing
2.
forwards!), so that the pins in the motor housing fit into the holes in the grille.
Screw the grille fastener firmly clockwise onto the protruding screw thread of the motor
3.
housing.
Remove the PVC socket from the motor spindle and throw it away.
4.
Press the fan blades onto the motor spindle, with the notches over the pins.
5.
VT12 blanc & VT16 blanc: Screw the fan fastener firmly anticlockwise onto the end of the
6.
motor spindle.
Unscrew the clamping ring screw nearly all the way and mount it loosely with the rearmost
7.
slot around the rear grille. Now position the front grille onto the rear grille, in the front slot of
the clamping ring. Tighten the screw firmly; this clamps the grille parts together.
Now place the VT models upright; they are ready for use.
VS16 blanc:
Place both base parts crosswise over each other.
8.
Place the bottom support on the base, holes over holes, and screw the base and support
9.
tight with the four bolts.
Pull the adjustable standard part out of the bottom support to the required height and fix this
10.
height by firmly tightening the clamp coupling.
Now mount the fan unit over the adjustable standard part and clamp it firmly tight with the
11.
fastening bolt.

OPERATION

The fans can be set to different speeds: The VT9 BLANC has two settings; the VT12 BLANC,
VT16 BLANC and VS16 BLANC have three settings. All types of fan are equipped with an
oscillation function (45°).
If - the fan has been fully assembled
- all connections have been properly secured
- all safety guidelines have been taken into account
8

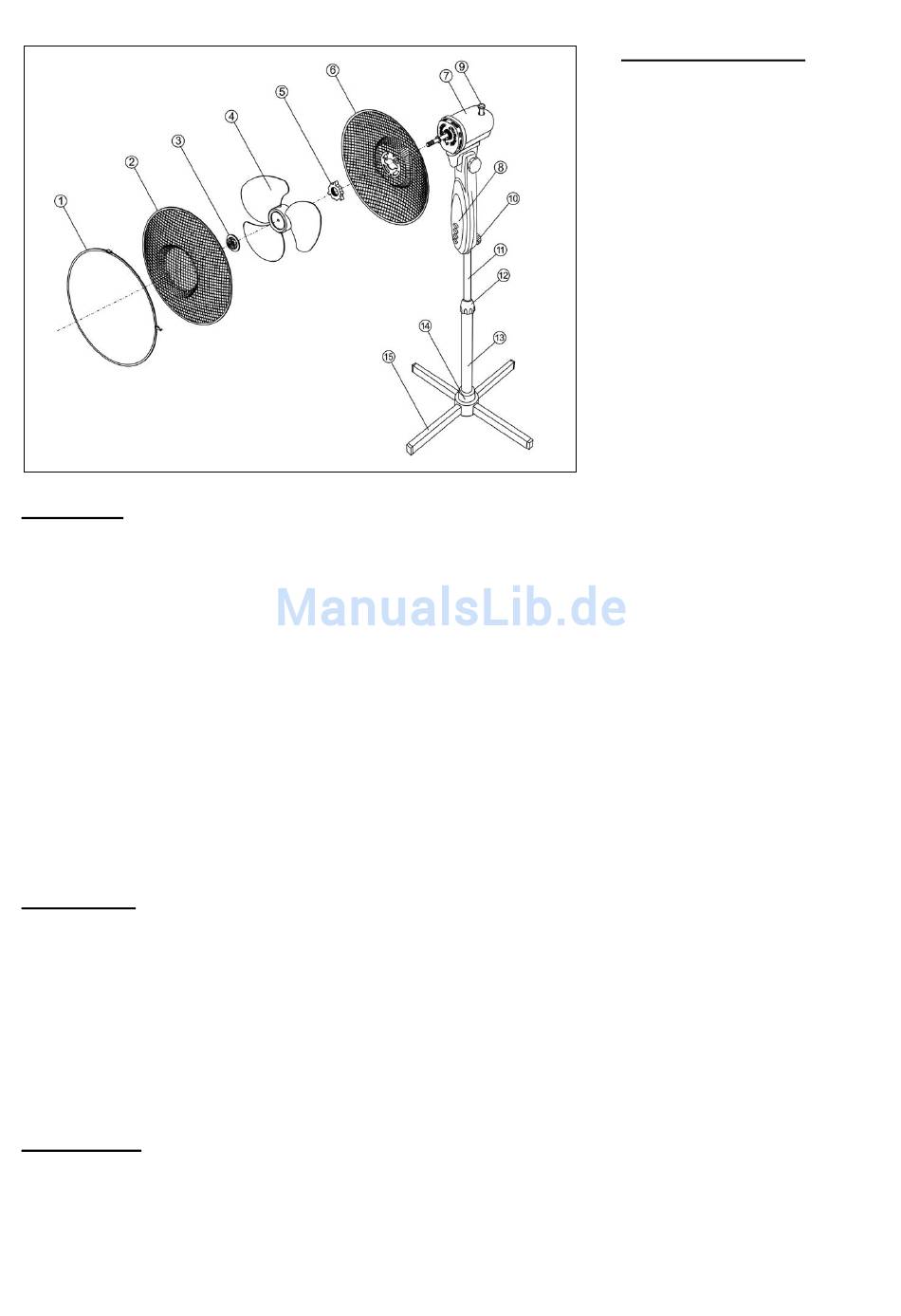

VS16 BLANC blanc
Clamping ring grilles
1.
Front grille
2.
Fan fastener
3.
Fan blades
4.
Grille fastener
5.
Rear grille
6.
Motor housing
7.
Buttons
8.
Oscillate button
9.
Fastening bolt
10.
Adjustable standard part
11.
Clamp coupling
12.
Bottom support
13.
Covering cap
14.
Base
15.
