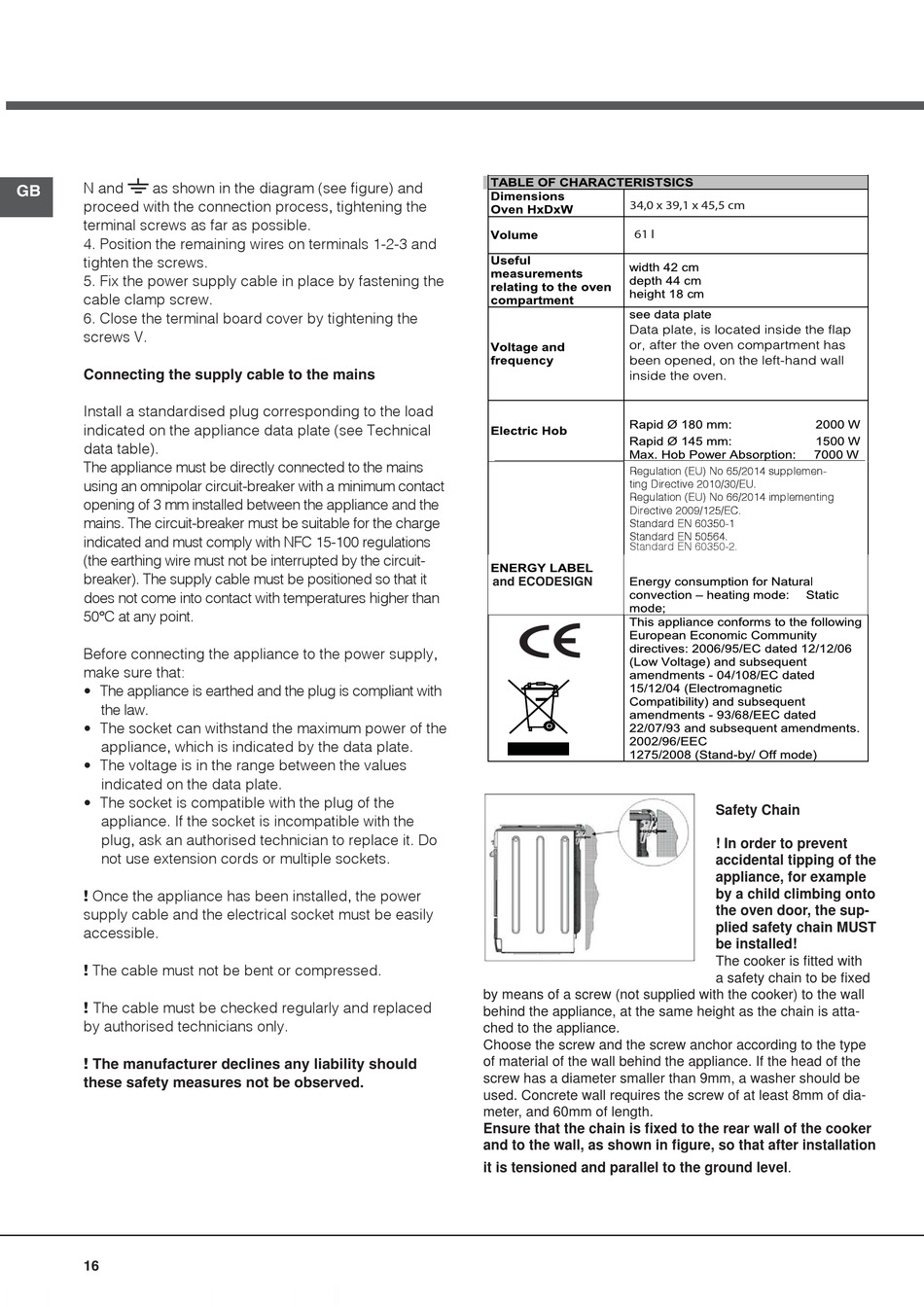

N and as shown in the diagram (see figure) and
GB
proceed with the connection process, tightening the
terminal screws as far as possible.
4. Position the remaining wires on terminals 1-2-3 and
tighten the screws.
5. Fix the power supply cable in place by fastening the
cable clamp screw.
6. Close the terminal board cover by tightening the
screws V.
Connecting the supply cable to the mains
Install a standardised plug corresponding to the load
indicated on the appliance data plate (see Technical
data table).
The appliance must be directly connected to the mains
using an omnipolar circuit-breaker with a minimum contact
opening of 3 mm installed between the appliance and the
mains. The circuit-breaker must be suitable for the charge
indicated and must comply with NFC 15-100 regulations
(the earthing wire must not be interrupted by the circuit-
breaker). The supply cable must be positioned so that it
does not come into contact with temperatures higher than
50°C at any point.
Before connecting the appliance to the power supply,
make sure that:
• The appliance is earthed and the plug is compliant with
the law.
• The socket can withstand the maximum power of the
appliance, which is indicated by the data plate.
• The voltage is in the range between the values
indicated on the data plate.
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only.
! The manufacturer declines any liability should
these safety measures not be observed.
16
34,0 x 39,1 x 45,5 cm
61 l
Regulation (EU) No 65/2014 supplemen- Regulation (EU) No 65/2014 supplemen-
ting Directive 2010/30/EU. ting Directive 2010/30/EU.
Regulation (EU) No 66/2014 implementing Regulation (EU) No 66/2014 implementing
Directive 2009/125/EC. Directive 2009/125/EC.
Standard EN 60350-1 Standard EN 60350-1
Standard EN 50564. Standard EN 50564.
Standard EN 60350-2.
and ECODESIGN
by means of a screw (not supplied with the cooker) to the wall
behind the appliance, at the same height as the chain is atta-
ched to the appliance.
Choose the screw and the screw anchor according to the type
of material of the wall behind the appliance. If the head of the
screw has a diameter smaller than 9mm, a washer should be
used. Concrete wall requires the screw of at least 8mm of dia-
meter, and 60mm of length.
Ensure that the chain is fi xed to the rear wall of the cooker
and to the wall, as shown in fi gure, so that after installation
it is tensioned and parallel to the ground level.
Safety Chain
! In order to prevent
accidental tipping of the
appliance, for example
by a child climbing onto
the oven door, the sup-
plied safety chain MUST
be installed!
The cooker is fi tted with
a safety chain to be fi xed
