Analog output
The Multi tester VC-80 has an analog output, i.e. if current measure-
ments are made the Multi Tester will convert the current signalled
into an analog output voltage which can be picked off from the out-
put jacks.
- Connect the black measuring line to the COM jack and the red
measuring line to the + jack.
- Connect the measuring lines to the input of a multimeter, oscillos-
cope or the like.
- Make a current measurement. The measuring instrument which is
connected will now display the output voltage converted by the
multi tester.
Note:
For current measurements, an alternating voltage (10mV 20kHz per
Ampere) is output by the multitester.
Maintenance and cleaning
Clean the casing at intervals, using a dry cloth.
Never use a damp cloth or cleansing agents. Any repair or mainten-
ance should be made only by qualified personnel who are conver-
sant with the relevant regulations (VDE 100, VDE 0701).
Remove the batteries from the instrument when you do not need it
for a long time.
26

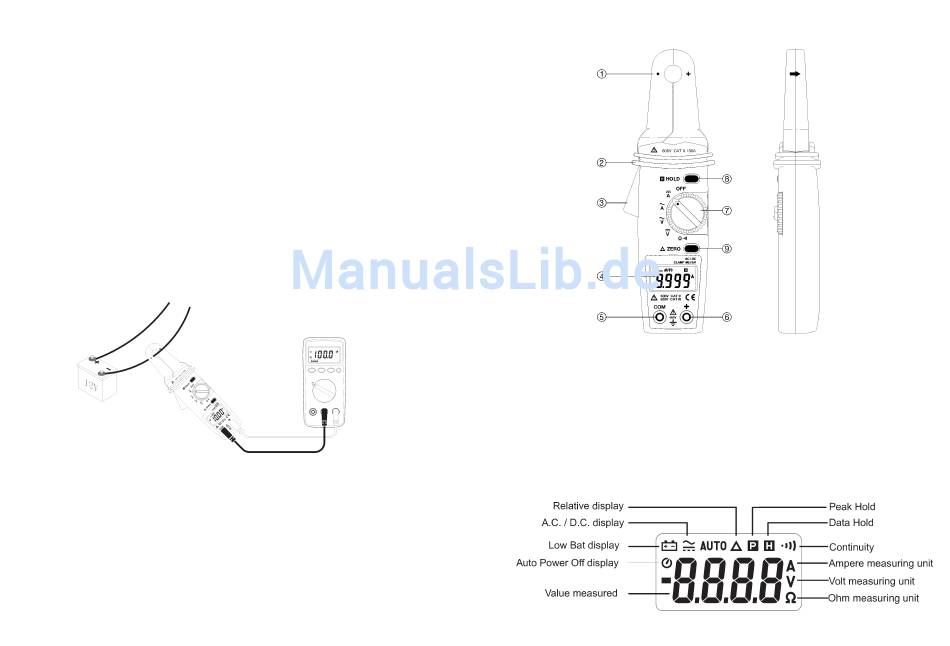

Survey of components
1. Clip-on current sensor
2. Protective shroud
3. Handle to open the clip
4. LC display
5. Grounding jack "COM"
LC display
6. Positive input jack
7. Functional rotary switch
8. Key for peak/data hold
9. Key for zero position
19
