Fluid Set Replacement

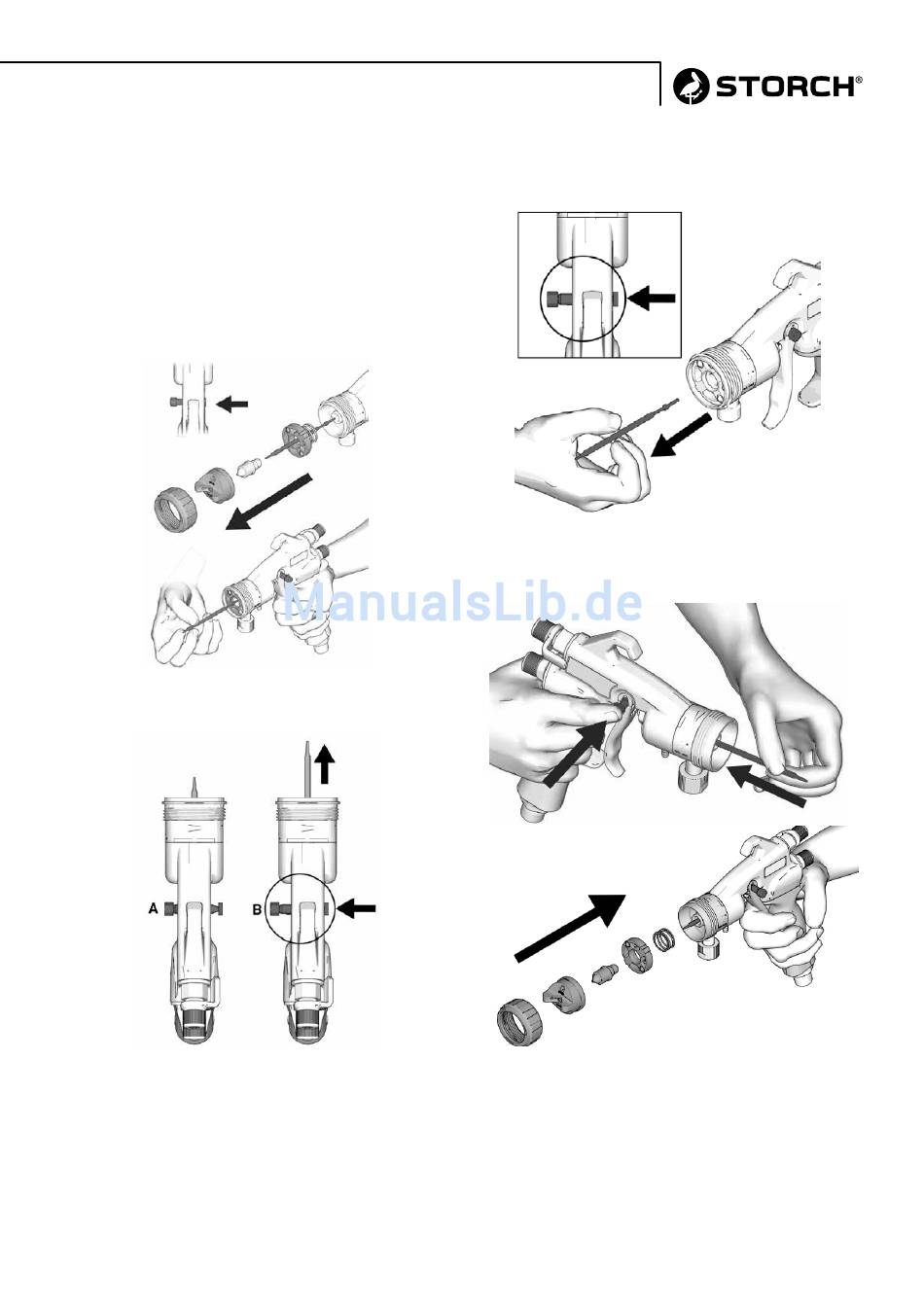

Removal
1. Perform Pressure Relief Procedure.
2. Remove retaining ring and air cap.
3. Trigger the gun and remove fluid nozzle.
NOTICE:
Trigger the gun whenever removing or installing the fluid
nozzle. This prevents the fluid nozzle and needle seating
surfaces from being damaged.
4. Move trigger slide from SPRAY position (A) to NEED-
LE REMOVAL position (B).
SPRAY
position
5. Remove needle from front of gun.
NOTICE:
Do not use a pliers to remove needle. Damage to the
needle tip will cause leaking at the fluid nozzle.
Installation
1. Insert needle and move trigger slide from NEEDLE
REMOVAL position (B) to SPRAY position (A).
NEEDLE
REMOVAL
position
2. Trigger the gun and install air cap guide with spring
and fluid nozzle.
3. Install air cap and retaining ring.
79 Original instruction
