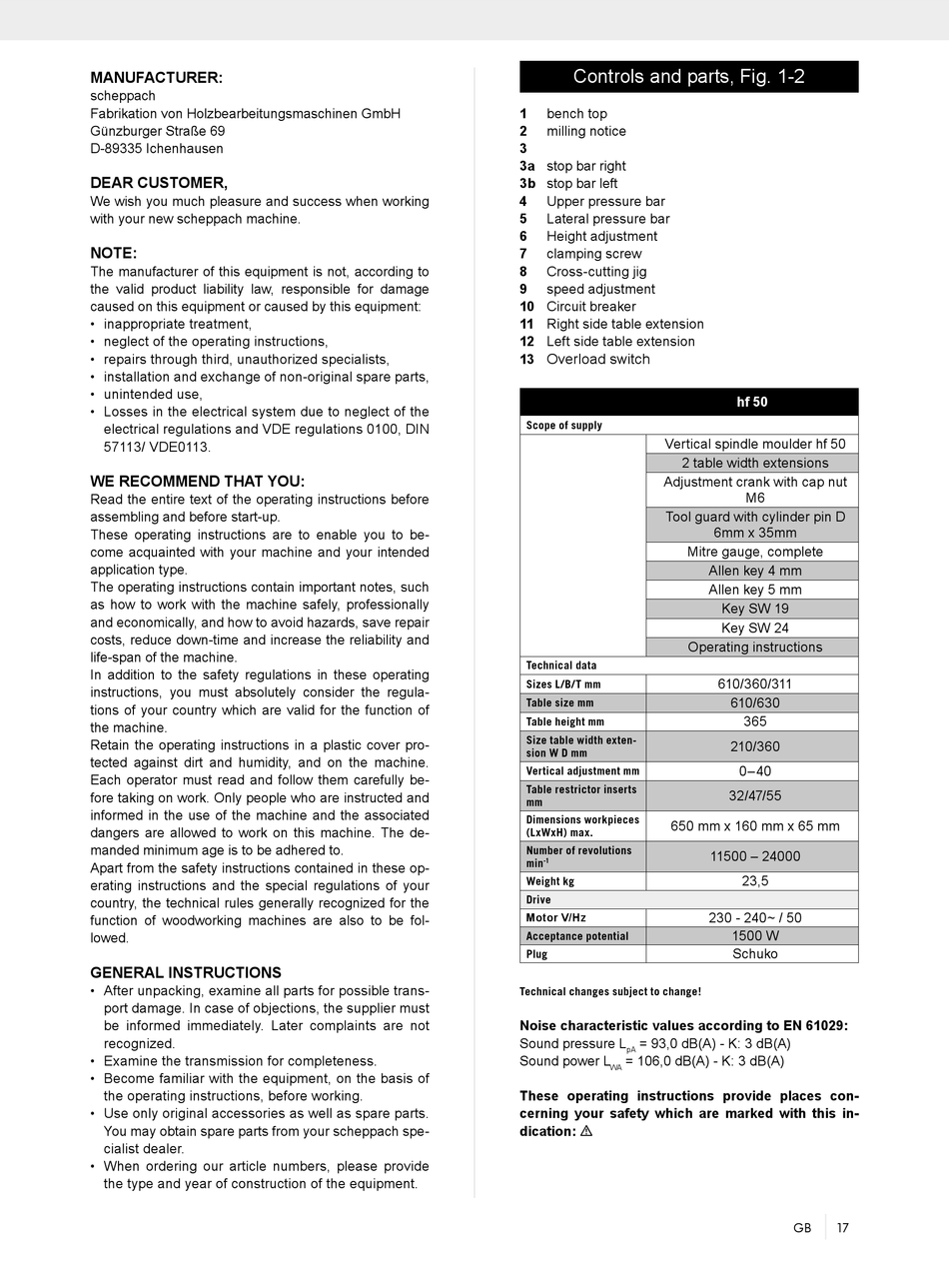

Scheppach HF50 Originalbetriebsanleitung Seite 17

MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
DEAR CUSTOMER,
We wish you much pleasure and success when working
with your new scheppach machine.
NOTE:
The manufacturer of this equipment is not, according to
the valid product liability law, responsible for damage
caused on this equipment or caused by this equipment:
• inappropriate treatment,
• neglect of the operating instructions,
• repairs through third, unauthorized specialists,
• installation and exchange of non-original spare parts,
• unintended use,
• Losses in the electrical system due to neglect of the
electrical regulations and VDE regulations 0100, DIN
57113/ VDE0113.
WE RECOMMEND THAT YOU:
Read the entire text of the operating instructions before
assembling and before start-up.
These operating instructions are to enable you to be-
come acquainted with your machine and your intended
application type.
The operating instructions contain important notes, such
as how to work with the machine safely, professionally
and economically, and how to avoid hazards, save repair
costs, reduce down-time and increase the reliability and
life-span of the machine.
In addition to the safety regulations in these operating
instructions, you must absolutely consider the regula-
tions of your country which are valid for the function of
the machine.
Retain the operating instructions in a plastic cover pro-
tected against dirt and humidity, and on the machine.
Each operator must read and follow them carefully be-
fore taking on work. Only people who are instructed and
informed in the use of the machine and the associated
dangers are allowed to work on this machine. The de-
manded minimum age is to be adhered to.
Apart from the safety instructions contained in these op-
erating instructions and the special regulations of your
country, the technical rules generally recognized for the
function of woodworking machines are also to be fol-
lowed.
GENERAL INSTRUCTIONS
• After unpacking, examine all parts for possible trans-
port damage. In case of objections, the supplier must
be informed immediately. Later complaints are not
recognized.
• Examine the transmission for completeness.
• Become familiar with the equipment, on the basis of
the operating instructions, before working.
• Use only original accessories as well as spare parts.
You may obtain spare parts from your scheppach spe-
cialist dealer.
• When ordering our article numbers, please provide
the type and year of construction of the equipment.
Controls and parts, Fig. 1-2
1
bench top
2 milling notice
3
3a stop bar right
3b stop bar left
4 Upper pressure bar
5 Lateral pressure bar
6
Height adjustment
7 clamping screw
8
Cross-cutting jig
9 speed adjustment
10 Circuit breaker
11 Right side table extension
12 Left side table extension
13 Overload switch
Scope of supply
Vertical spindle moulder hf 50
2 table width extensions
Adjustment crank with cap nut
Tool guard with cylinder pin D
Mitre gauge, complete
Operating instructions
Technical data
Sizes L/B/T mm
Table size mm
Table height mm
Size table width exten-
sion W D mm
Vertical adjustment mm
Table restrictor inserts
mm
Dimensions workpieces
650 mm x 160 mm x 65 mm
(LxWxH) max.
Number of revolutions
min
-1
Weight kg
Drive
Motor V/Hz
Acceptance potential
Plug
Technical changes subject to change!
Noise characteristic values according to EN 61029:
Sound pressure L = 93,0 dB(A) - K: 3 dB(A)
pA
Sound power L = 106,0 dB(A) - K: 3 dB(A)
WA
These operating instructions provide places con-
cerning your safety which are marked with this in-
dication: m
hf 50
M6
6mm x 35mm
Allen key 4 mm
Allen key 5 mm
Key SW 19
Key SW 24
610/360/311
610/630
365
210/360
0–40
32/47/55
11500 – 24000
23,5
230 - 240~ / 50
1500 W
Schuko
