SIMATIC HMI
Mobile Panels 2nd Generation
Connection box standard and connection box advanced
Product Information
A5E33878459
Validity
This product information is valid for the following connection boxes:
● Connection box standard, article number 6AV2125-2AE13-0AX0
● Connection box advanced, article number 6AV2125-2AE23-0AX0
For further information about using the connection boxes, please refer to the "Mobile Panels 2nd Generation" operating
instructions.
This product information contains important notes. These notes supplement the operating instructions and take precedence
over statements in the "Mobile Panels 2nd Generation" operating instructions, in the release notes, and in the online help.
Mounting the connection box
Mounting position
The connection box is designed to be mounted on a vertical
surface of a stationary enclosure.
The connection box standard and connection box advanced
can be installed in any mounting position.

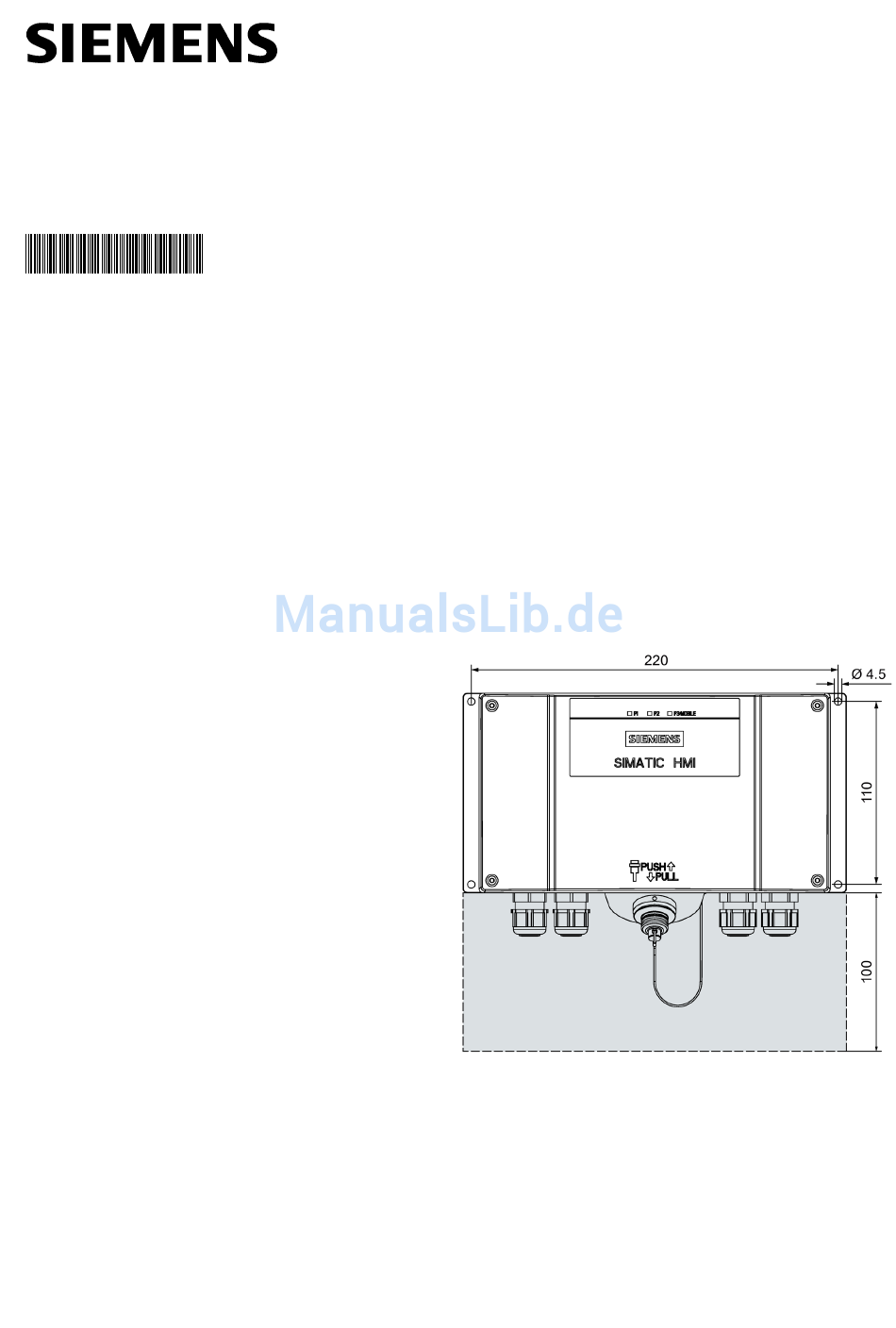

Clearance
At least 100 mm for unimpeded access to the interfaces;
see figure to the right.
Fastening the connection box
Example: Fastening to a cabinet wall.
1. Hold the connection box on the area where you want to
mount it.
2. Mark locations for the mounting holes.
3. Drill holes or threaded holes for the 4 cylinder head
screws according to your requirements.
4. Attach the connection box.
© Siemens AG 2015. All rights reserved
A5E33878459-AB, 12/2015
All dimensions in mm.
3
