Preparation

Install Display on solid horizontal surface such as a table or desk.

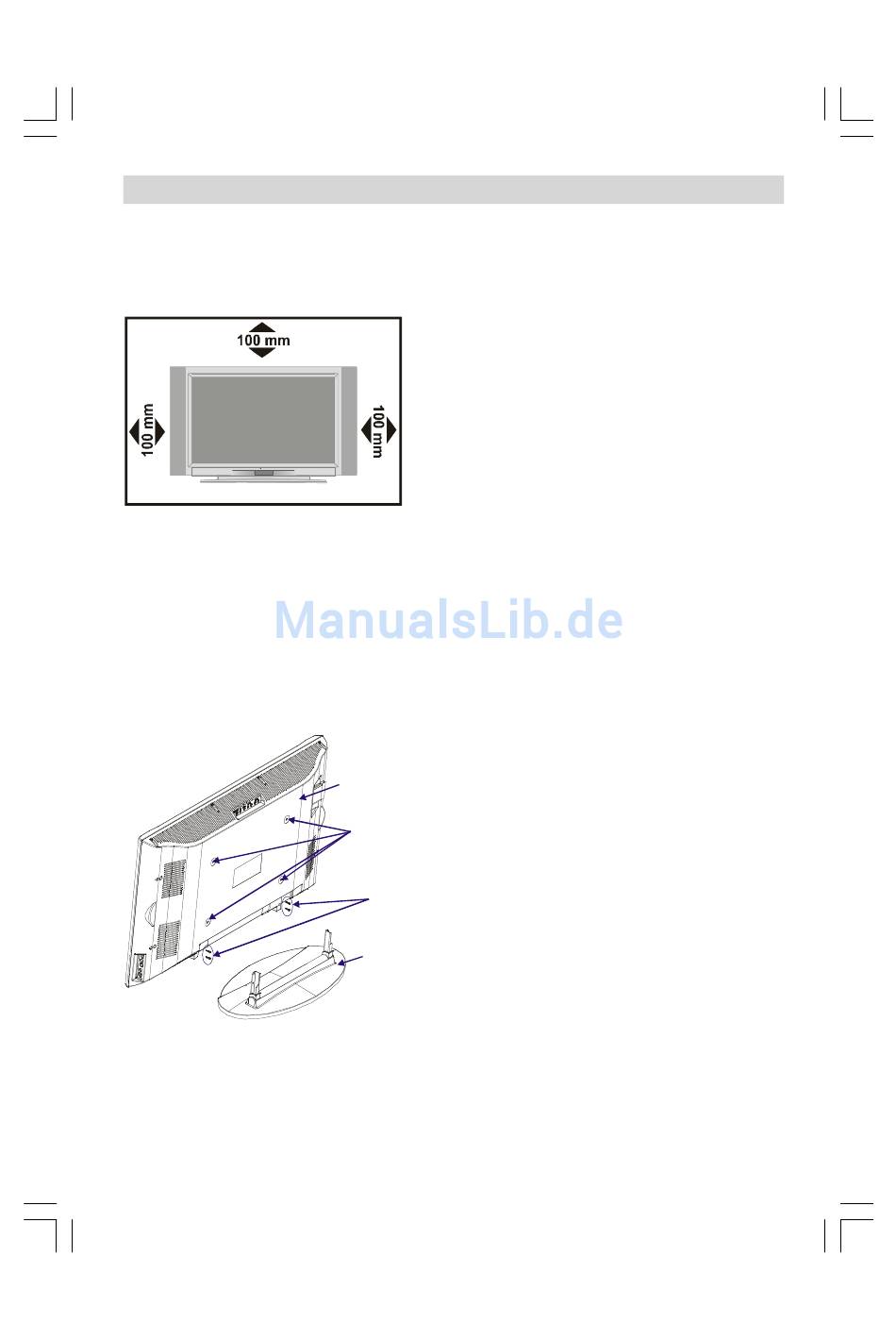

For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault
and unsafe situations, please do not place any objects on top of the set.
This apparatus can be used in tropical and/or moderate climates.

Installation Of The TFT TV To The Wall

1- To install the TFT TV on the wall, first of all, foot assembly should be removed. (Figure 1).
Unscrew the 4 screws (M4 x 6) that attach the foot assembly to the TFT panel and remove the
foot assembly from the TFT panel.
FIGURE 1
ENG-2707W-1543 UK-27 INCH TFT (17MB08)-DUVAR MON-(WO PIP)(CHI MEI-B1).p65
2- Place the 4 plastic pins to the circular
screw holes at the rear of the TFT and
screw them to the TFT panel with 4 (M6 x
TFT PANEL
20) screws.
3- Install the wall hanger as in figure 2 to
SCREW HOLES
FOR PLASTIC PINS
the wall with 4 anchors (M7 x 30) and 4
screws (M4 x 30).
4 SCREWS
Decide the place on the wall where the TFT
(M4 X 6)
panel would be placed. Level and mark
with a pencil the 4 mounting points on the
wall hanger. Drill pilot holes for the plastic
FOOT ASSEMBLY
anchors and then fix the wall hanger with 4
screws (M4 x 30).
4- Raise the TFT panel and hang it to the
holes on the wall hanger from the 4 hang-
ing screws at the rear of the TFT panel.
- 5 -
