4. Use
The Home Server is used as the interface between the tablet / smartphone and the instantane-
ous water heater. The control of the instantaneous water heater and the configuration of the
Home Server is accomplished with the control app. For more information on the use of the con-
trol app please read the chapter "How to use the app".

4.1 Terminals and signal lamps

Power supply Power LED Status LED Four Ethernet terminals

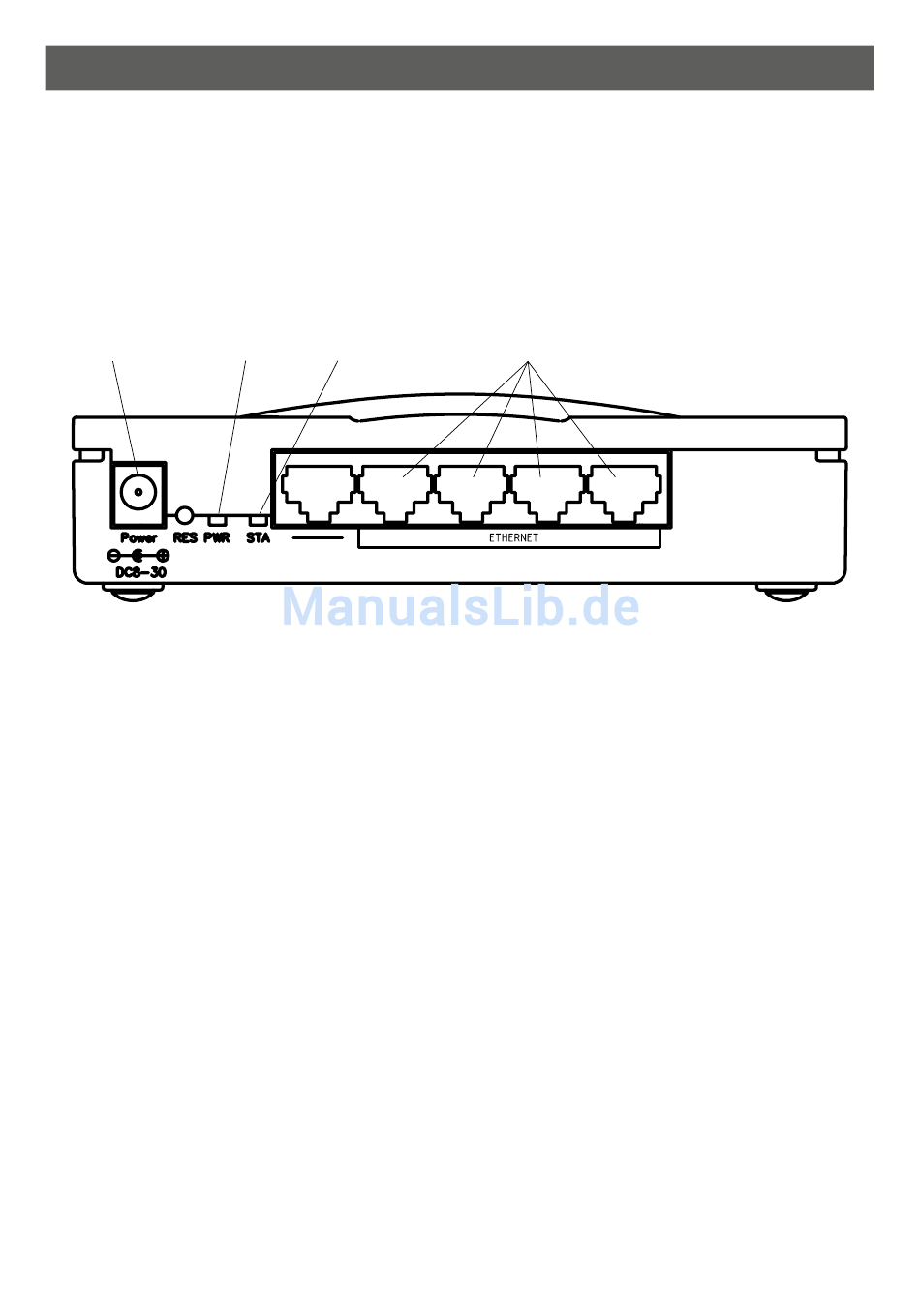

Figure 5: "Connections"
Note: Only use the supplied power pack for the power supply of the Home Server.
The Home Server communicates via radio and Wi-Fi. As an option, the Home Server can be
connected as DHCP client with a router via a LAN cable. The Wi-Fi is deactivated as soon as a
LAN cable is connected to one of the Ethernet terminals at the right side of the Home Server.
Do not use the left-hand RJ45 terminal.
The "Power LED" lights up if the Home Server is supplied with voltage via the power pack.
The "Status LED" lights up if the Home Server can be reached as access point via Wi-Fi. If this
LED is flashing, the flash code indicates a Home Server error. In this case, you must contact the
after sales service.

4.2 Integration of the Home Server in the existing network infrastructure

You can either use the Home Server as a stand-alone device (a so-called access point), or inte-
grate it as a client in the infrastructure of an existing home network. For convenient use, we
recommend integrating the Home Server in an existing network. To this end, you can either
use a Wi-Fi connection or a LAN cable.
Note: In order to integrate the Home Server in a network infrastructure via a Wi-Fi con-
nection, it is necessary to know the Wi-Fi name (the so-called SSID) and the correspond-
ing password.
