Installation

3.3 Installation of the Home Server on the wall

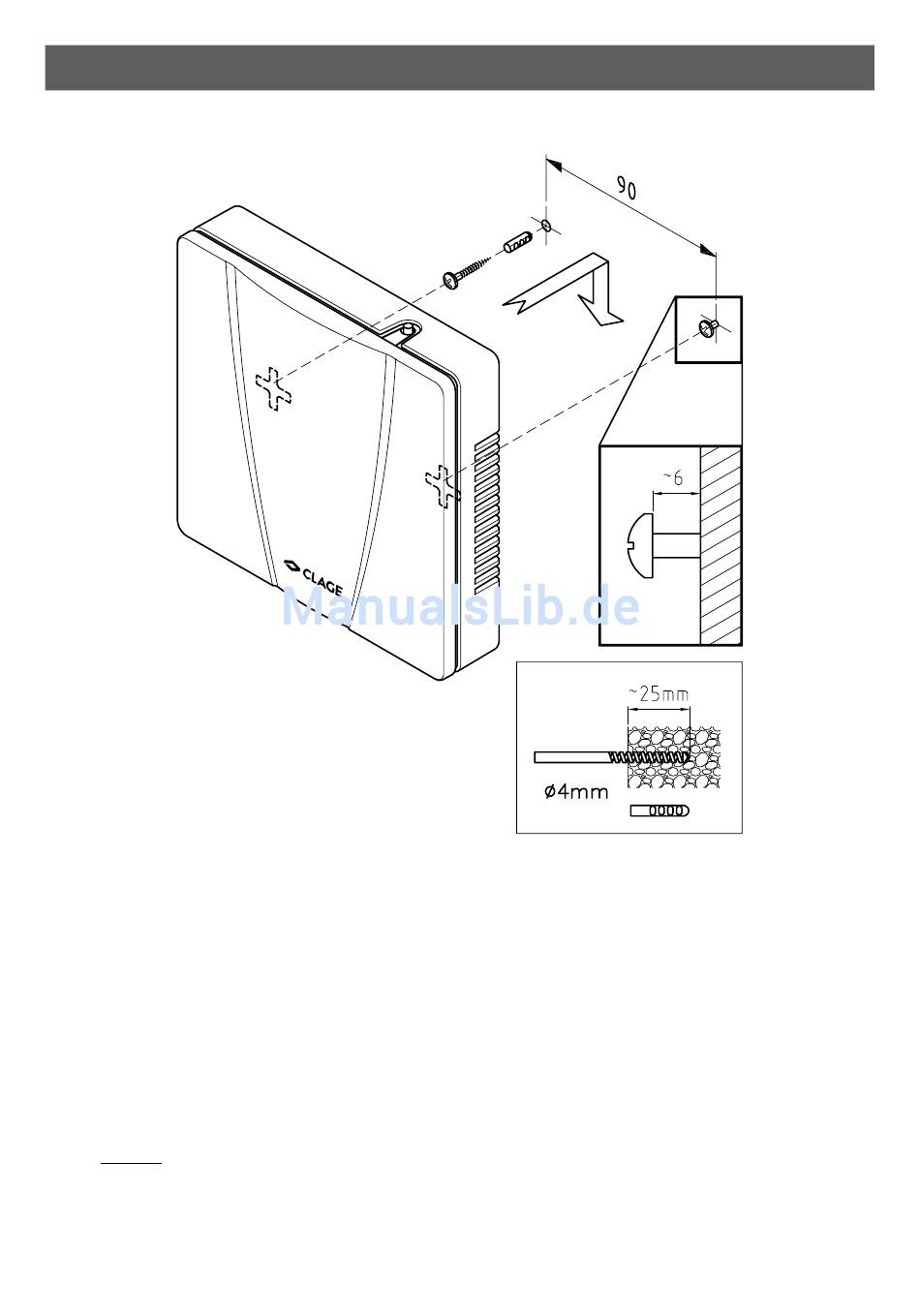

Figure 4: "Wall installation"
1. Determine the position of the holes using the template provided inside these operating
instructions. Please note that the screws must be positioned at the top of the snap cross.
2. When using the supplied screws and dowels, you must drill holes with a depth of 25 mm
using an appropriate 4 mm-drill.
3. Insert the dowels into the holes and screw in the screws until there is a space of 6 mm
between the wall and the screw head.
4. Hang the Home Server with the snap cross onto the screws.
5. Do not yet connect the Home Server with the supplied power pack! To this end, read the
"Initial operation" chapter.
