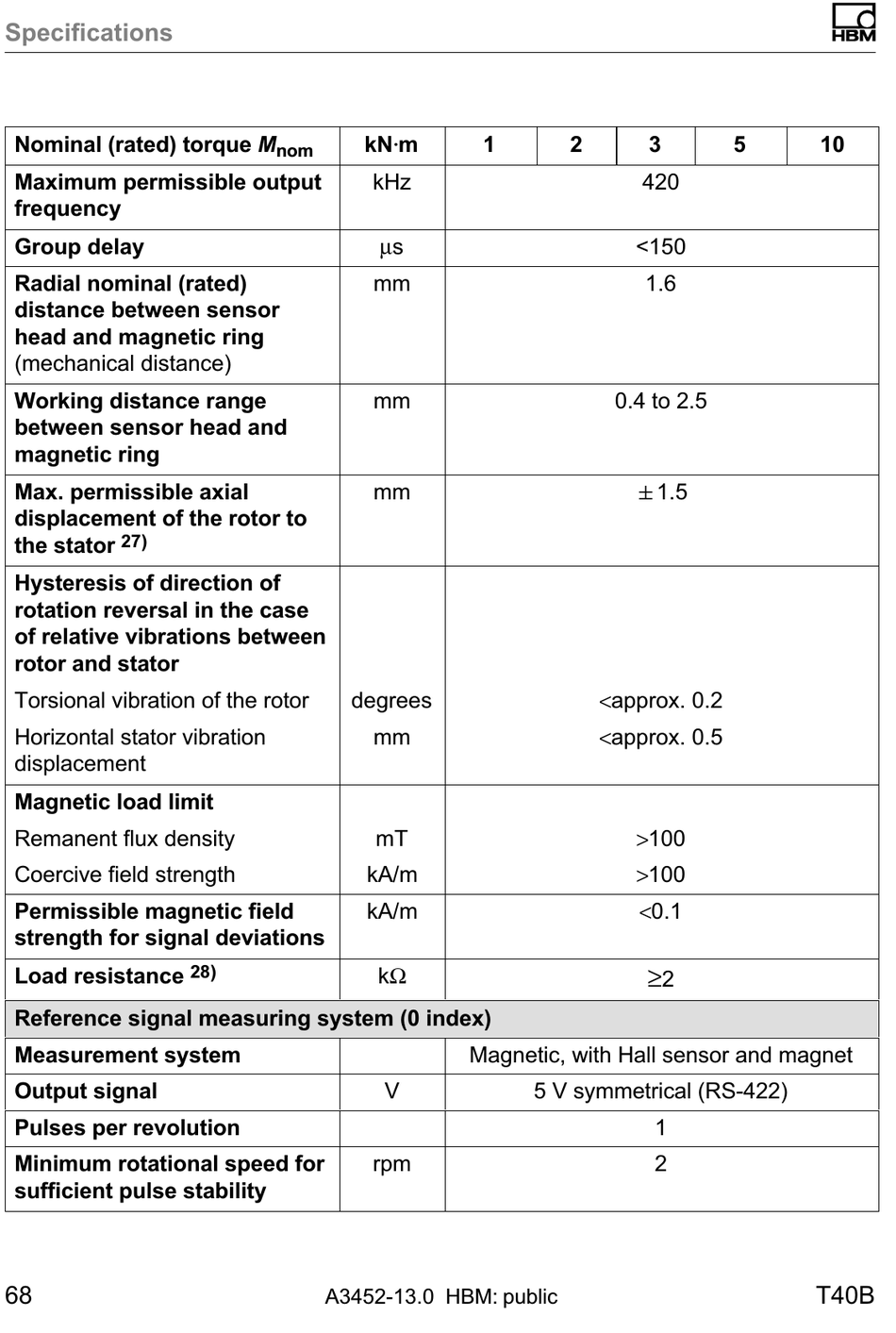

Specifications
Nominal (rated) torque M
Maximum permissible output
frequency
Group delay
Radial nominal (rated)
distance between sensor
head and magnetic ring
(mechanical distance)
Working distance range
between sensor head and
magnetic ring
Max. permissible axial
displacement of the rotor to
27)
the stator
Hysteresis of direction of
rotation reversal in the case
of relative vibrations between
rotor and stator
Torsional vibration of the rotor
Horizontal stator vibration
displacement
Magnetic load limit
Remanent flux density
Coercive field strength
Permissible magnetic field
strength for signal deviations
Load resistance
Reference signal measuring system (0 index)
Measurement system
Output signal
Pulses per revolution
Minimum rotational speed for
sufficient pulse stability
68
nom
degrees
28)
A3452-13.0 HBM: public
kNVm 1
kHz
μs
mm
mm
mm
mm
mT
kA/m
kA/m
kΩ
Magnetic, with Hall sensor and magnet
V 5 V symmetrical (RS‐422)
rpm
2 3 5
420
<150
1.6
0.4 to 2.5
"1.5
<approx. 0.2
<approx. 0.5
>100
>100
<0.1
≥
2
1
2
10
