USER MANUAL
Aluminium reclining wheelchair
Product code: ALH 008
1. Characteris�cs
The wheelchair is made of aluminium frame, reinforced with double cross bar and
is equipped with supplementary transverse stabiliza�on at the hand grips for an
accompanying person. The wheelchair possesses nylon-coton seat which is
addi�onally upholstered by the covers which are made of air permeable fabric.
The wheelchair is equipped with extended backrest, pillow, an�-�pping wheels,
and atendant brake (drum brake system). The backrest and footrests' angle can
be adjusted within the range of 0
version. The wheelchair is supplied with pneuma�c rear wheels (24'') with
aluminium handrims and solid rubber front wheels (8'') which are more resistant
to abrasions.
The set includes: frame with seat, right footrest with footplate, le� footrest with
footplate, headrest, upholstery with pillow stabilizing head, pump, Set of keys.

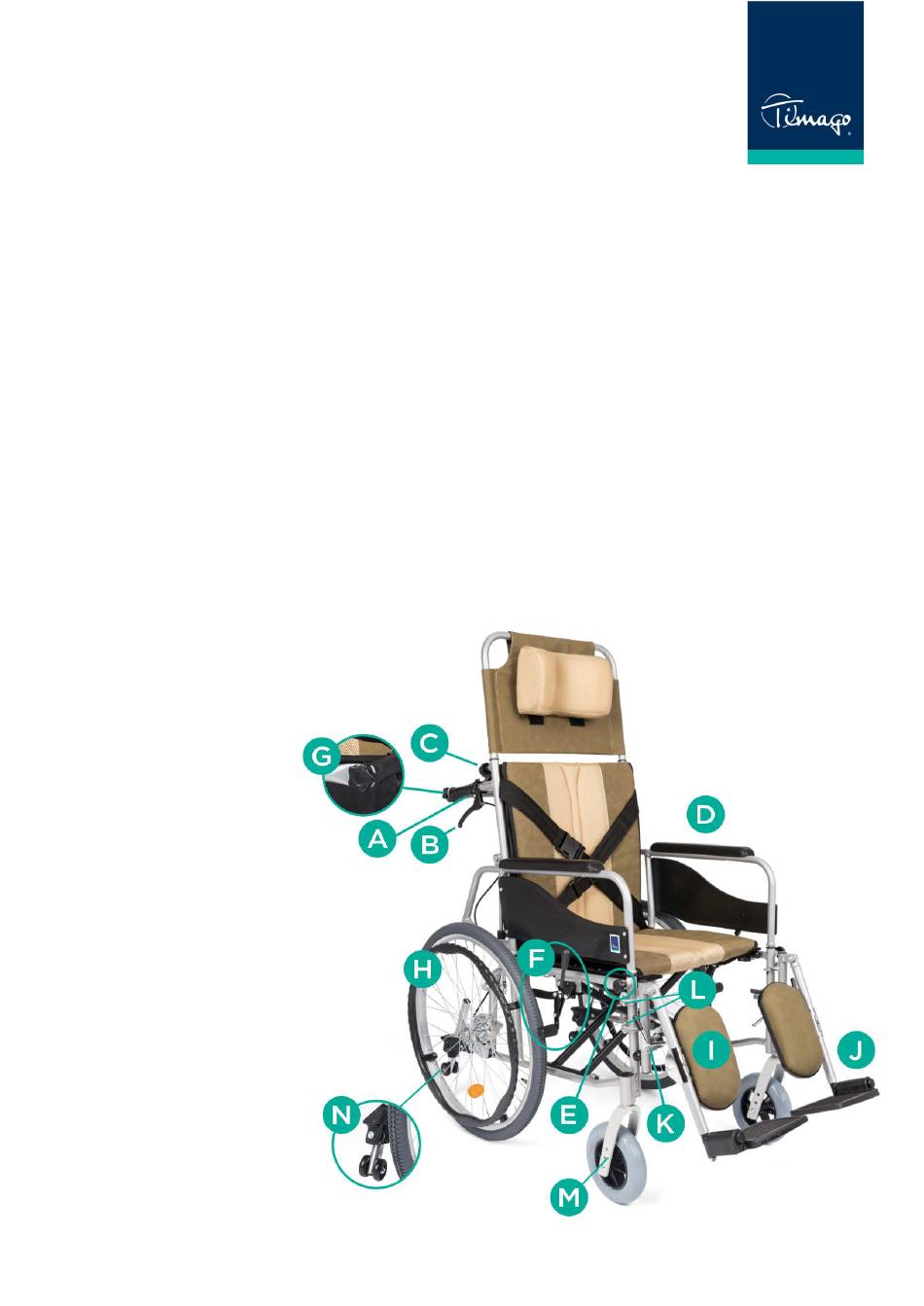

Elements of the wheelchair:
A. Hand grip
B.
Atendant brake
C.
Func�on of backrest
inclina�on
D. Armrest
E. Assembly knob
F. Wheel lock
G. Fixing screw of transverse
stabiliza�on
H. Handrim
I. Calf pad
J. Footrest
K. Footrest lever
L.
Assembly pin of the footrest
M.
Adjustment of the
centre of gravity
N. An�-�p wheels
-90 . Removable armrests are made in a long
