Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(provide for oneself) and spanner.
1
2
Washer
Rear
hubcap
Ø10
Locknut
Ø10 Washer
Ø10
Gear box
Driving wheel

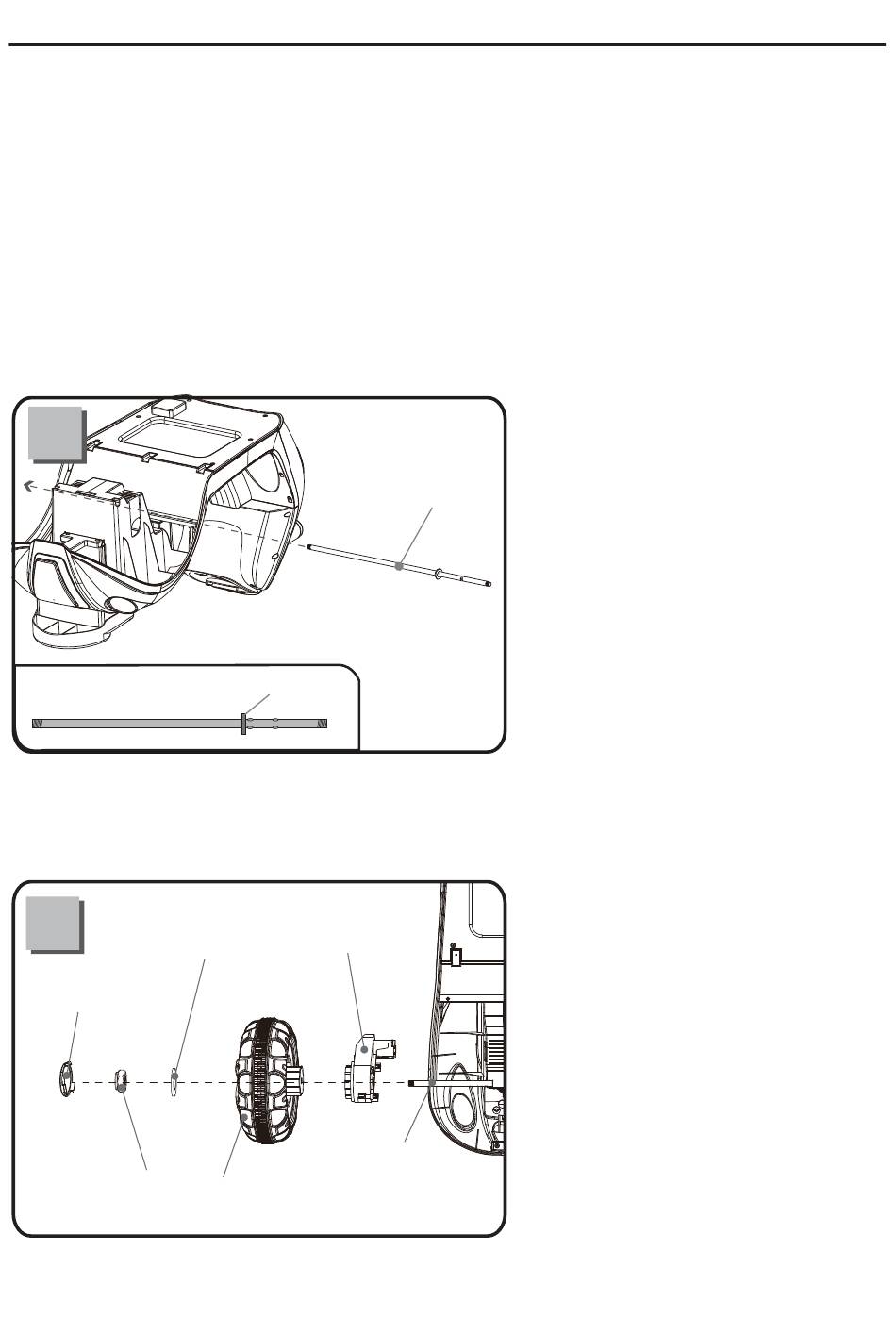

● Turn the vehicle body downside
up.
Remove all the parts from the rear axle.
●
Rear axle
Slide a Ø10 washer onto the rear axle
●
from the longer end.
Insert the rear axle through the hole in
●
vehicle body from the right side (standing at
the back of the vehicle body).
● Fit the gear box onto the rear axle from the
Left side (Standing at the rear of the vehicle
body). And make the motor on the gear box
pass through the hole in the vehicle body.
● Fit the driving wheel onto the rear axle,
keep it match with the gear box.
● Fit a Ø10 washer onto the rear axle.
● Fit a Ø10 locknut to the end of the rear
axle.
Rear axle
● Insert the tabs on the rear hubcap into
slots in the driving wheel.
2WD
