7. Control Elements and Connections

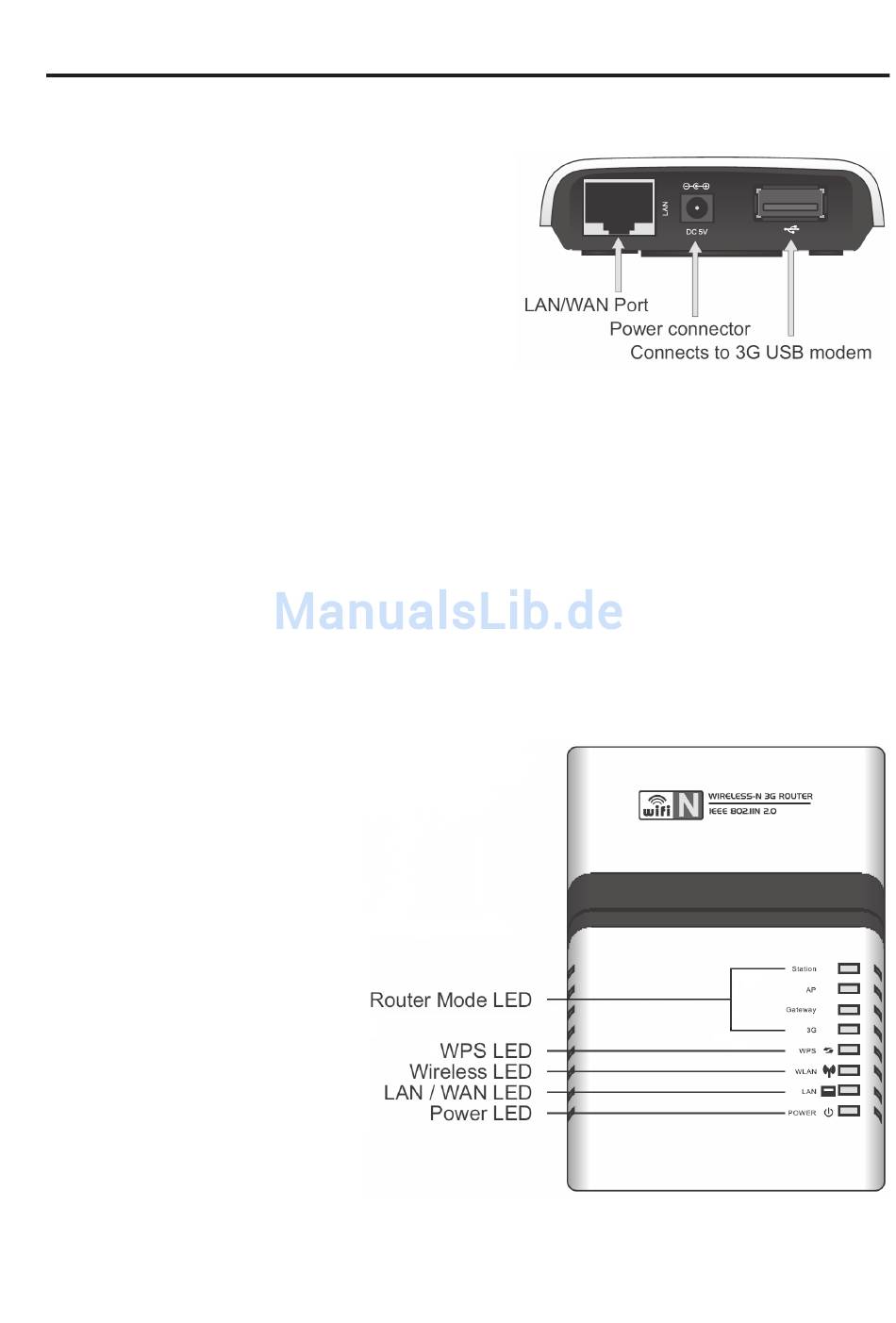

a) Router Connections

LAN/WAN Port
Power Connector
USB Port

b) LEDs at the Router

Router Mode LED
WPS LED
Wireless LED
LAN / WAN LED
Power LED
32
Depending on the router's
operating mode, a corre-
sponding device (DSL mo-
dem, computer, etc.) is con-
nected here with a 1:1-
linked network cable.
For power supply. The in-
cluded mains adapter must
be connected here.
In the operating mode "3G Wireless", the USB-UMTS modem is con-
nected here.
The respective LED shows which operating mode is active.
This LED flashes quickly when the WPS is active.
The LED is lit during active WLAN reception or flashes during data
transfer.
The LED is permanently lit if a
device is connected to the
router with a network cable; it
flashes during data transfer.
The LED is lit when the router is
connected to the power supply
via the mains adapter.
