NEC MultiSync LCD3210 Bedienerhandbuch Seite 16
40" lcd colour monitor
Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer's screen image.
Some video cards may not display an image correctly.
Scanning frequency
Resolution
Horizontal
640 x 480
31.5Hz
800 x 600
37.9Hz
1024 x 768
48.4Hz
1280 x 768
48Hz
1360 x 768
48Hz
1280 x 1024
64Hz
1600 x 1200
75Hz

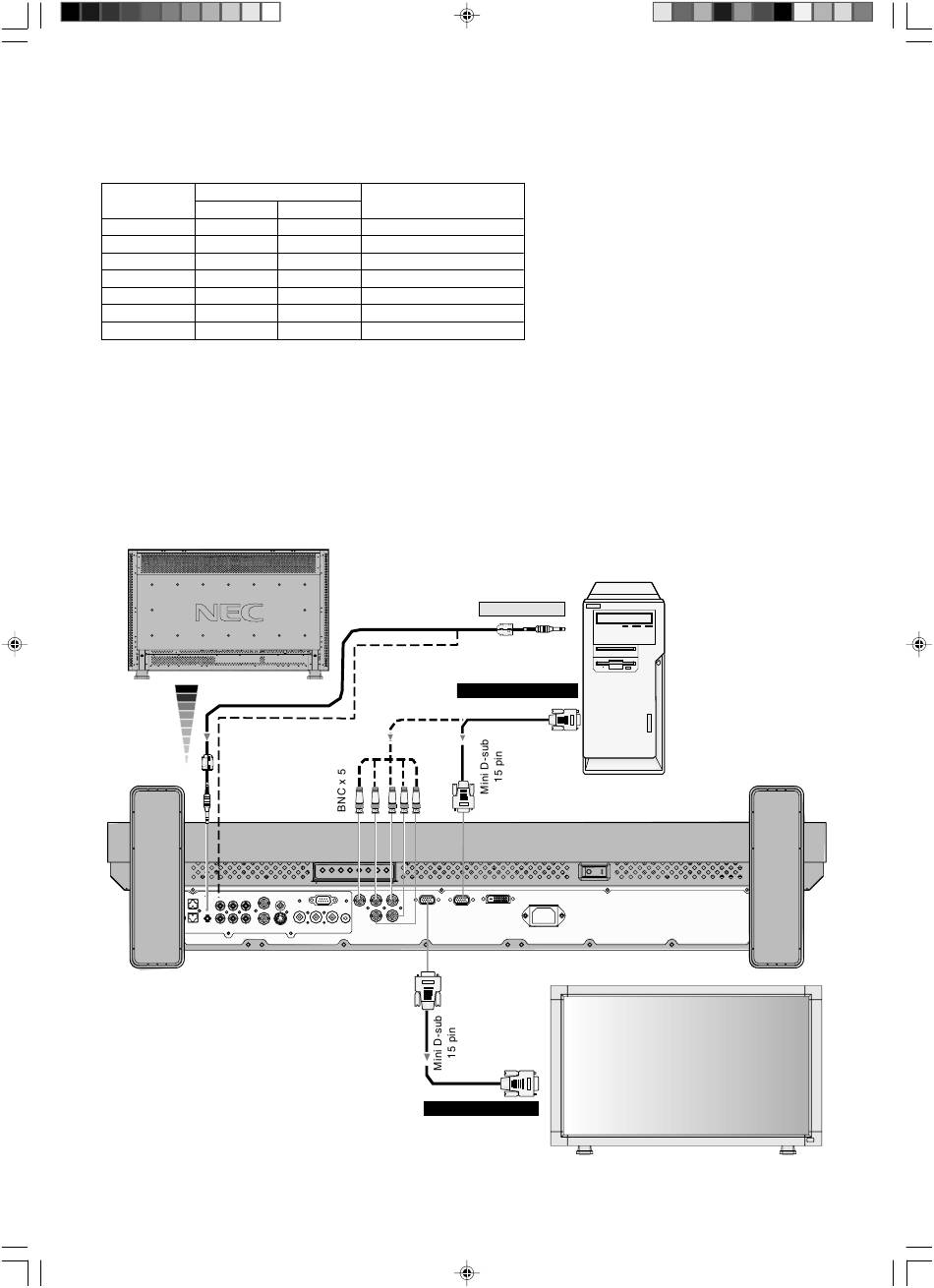

Connect the LCD Monitor to a Personal Computer
•
To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal
cable (mini D-sub 15 pin to mini D-sub 15 pin).
•
To connect the RGB 3 connector (BNC) on the LCD monitor, use a signal cable which is available separately
(mini D-sub 15 pin to BNC x 5). Select RGB 3 from the INPUT button.
•
When connecting one or more LCD monitors, use the RGB OUT connector (mini D-sub 15 pin).
•
The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
LCD monitor
01_English
Remarks
Vertical
60Hz
60Hz
60Hz
60Hz
60Hz
Recommended resolution
60Hz
Compressed image
60Hz
Compressed image
12
To audio output
To analog RGB output
Mini D-sub 15 pin
PC or IBM compatible
To analog RGB input
Mini D-sub 15 pin
English-12
06/06/2005, 11:05
LCD monitor (second monitor)
