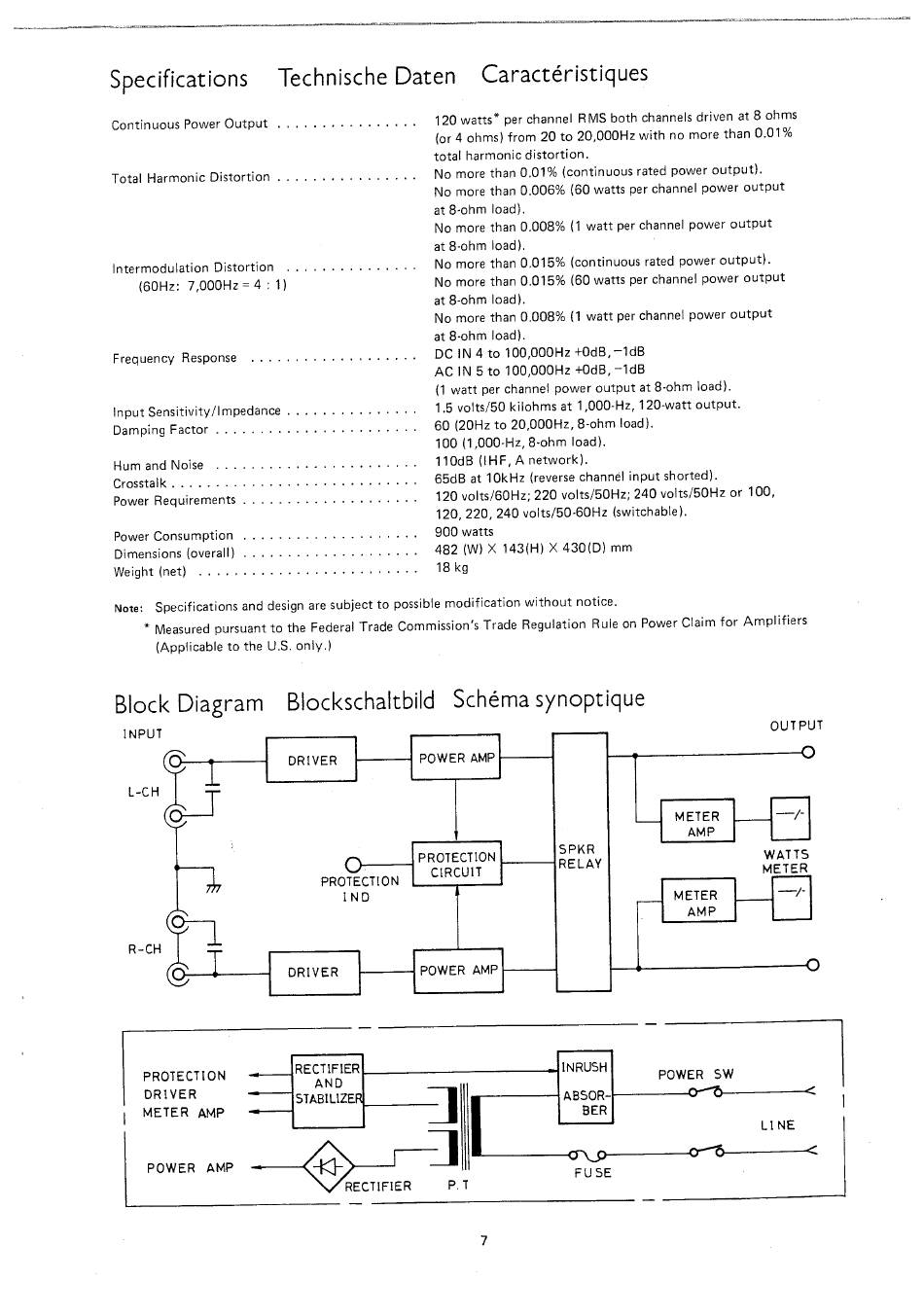

s Specification Technische Daten Caractéristiques
Continuous Power Output
Total Harmonic Distortion
Intermodulation Distortion
(60Hz: 7,000Hz-4 : 1)
Frequency Response
Input Sensitivity/lmpedance
Damping Factor . . .
Hum and Noise
Crosstalk .
Power Requirements .
Power Consumption
Dimensions (overall)
Weight (net)
Note: Specifications anddesign aresubject t o possible m odification withoutnotice.
d Measure pursuant totheFederal Trade C ommission's
(Applicable to the U.S. only.)
BlockDiagram Blockschaltbild Schéma s ynoptique
INPUT
L -CH
PROTECTION
DRIVER
METER AMP
POWER AMP
120watts* perchannelRMSboth channels drivenat 8 ohms
(or4 ohms) f rom20to 20,000Hz w ith nomorethan0.01%
total harmonic distortion.
No more than 0.01% (continuous rated power output).
No more than 0.006% (60 watts perchannelpower output
at 8-ohm load).
No more than 0.008% (I watt per channel power output
at 8-ohm
No more than 0.015% (continuous rated power output).
No more than 0.015% (60 watts per channel power output
at 8-ohm load).
No more than 0.008% (1 watt per channelpower output
at 8-ohm
DC IN 4 to IOO,OOOHz+0dB,-1dB
AC IN 5 to 100,000Hz +0dB, -ldB
(1 watt perchannel p oweroutput at 8-ohmload).
I .5 volts/50 kilohms at I ,OOO-Hz, 1 20-watt output.
60 (20Hz to 20,OOOHz,8-ohm load).
100 (1 ,OOO.Hz, 8 -ohm load).
110dB (IHF, A network).
65dB at 10kHz (reversechannélinput shorted).
120volts/60Hz;220volts/50Hz;240volts/50Hzor 100,
120, 220, 240 volts/50-60Hz (switchable).
900 watts
482 (W) X 1430-4) X 430(D) mm
18 kg
POWER AMP
DRIVER
PROTECTION
CIRCUIT
PROTECTION
IND
POWER
DRIVER
RECTIFIER
AND
STABILIZE
RECTIFIER
ioad).
load).
Trade R egulation Rule onPower Claim forAmplifiers
S PKR
RELAY
AMP
INRUSH
ABSOR-
BER
FU SE
7
OUTPUT
METER
AMP
WATTS
METER
METER
AM p
POWER SW
LINE
