Exchanging wire-guidance nozzles

Safety

Tools needed

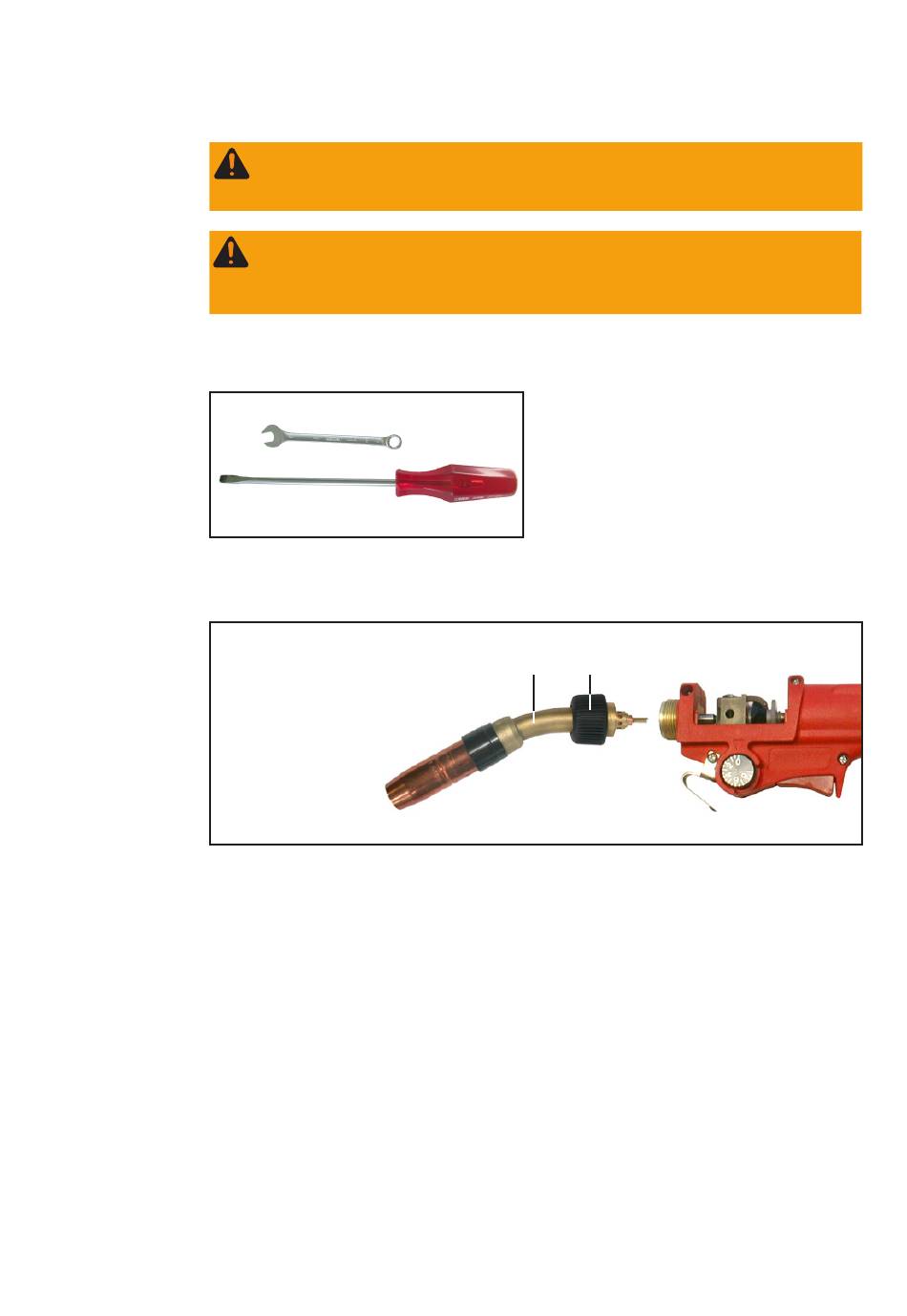

Fig.25 Fork spanner and flat screwdriver
Unscrew the
torch neck from
the PT drive
Fig.26 Detaching the torch neck
-
WARNING! Work that is not carried out correctly can cause serious injury and
damage. The actions described below may ONLY be carried out by skilled,
Fronius-trained personnel! Observe and follow all safety rules.
WARNING! Risk of injury from electric shock and from welding electrode emerg-
ing at speed from the torch. Before performing any of the actions described
below, unplug the power source from the mains and shift the mains switch to the
"O" position.
Undo the swivel nut (13) and detach the torch neck (14) from the PT Drive
14
- Fork spanner
span: 8 mm (.32 in.)
- Flat screwdriver 6,5 mm (.26 in.)
(14) (13)
