Cleaning The Welding Torch Hosepack; After Two Wirespools Have Been Used; Disposal - Fronius Pt-Drive Bedienungsanleitung

Cleaning the
welding torch
hosepack

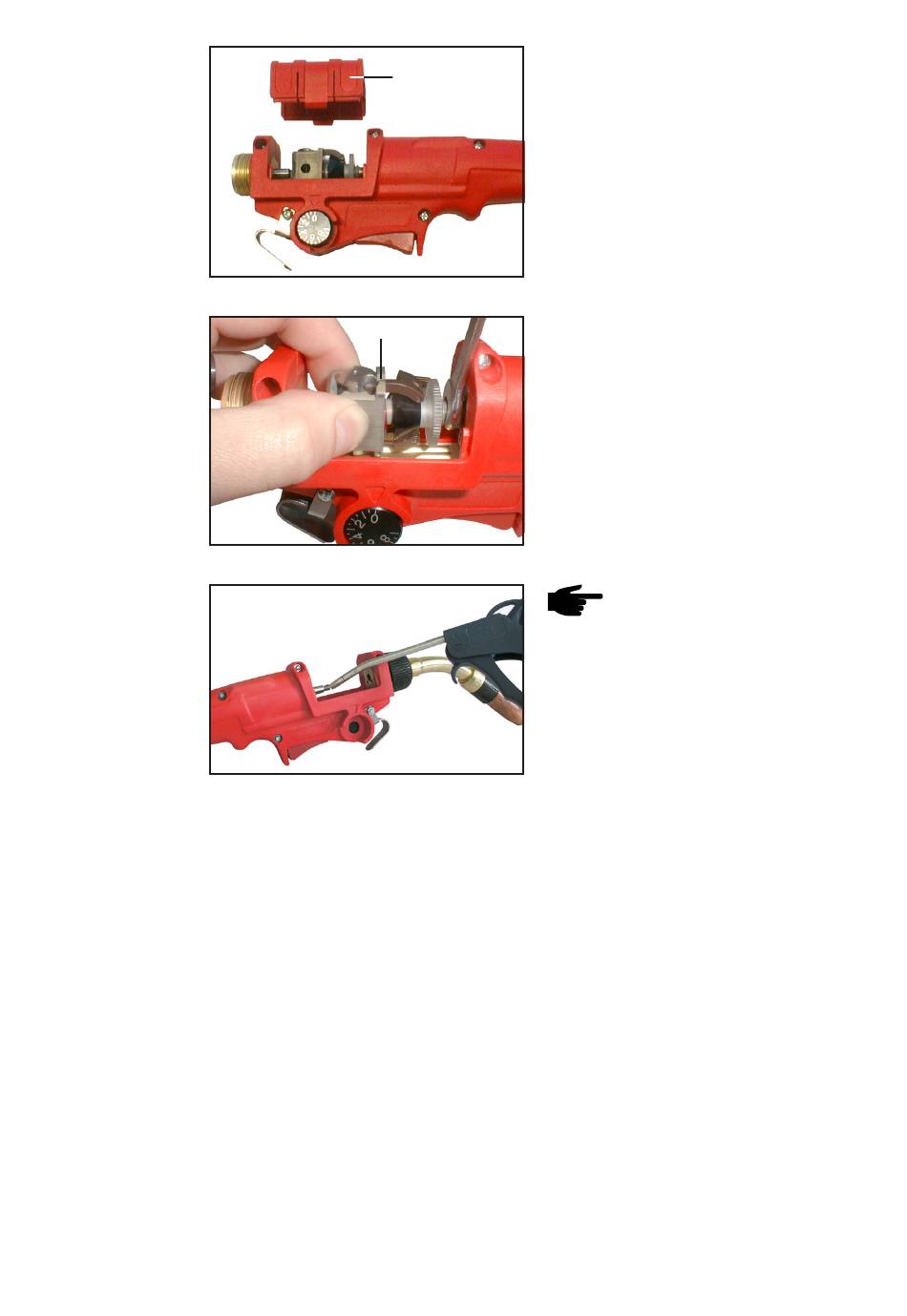

Fig. 53 Removing the cover
Fig. 54 Removing the drive head
Fig. 55 Cleaning the welding torch hosepack
After two wire- Replace welding torch inner liner as described in „Fitting/replacing the inner liner"
spools have been
used

Disposal

Dispose of in accordance with the applicable national and local regulations.
(27)
(2)
32
- Take cover (27) off PT drive
- Secure drive shaft using flat spanner
(size 8 mm - 0.32 in.)
- Unscrew drive head (2) and remove
NOTE! There may be dust
deposits and blockages in the
welding torch hosepack. When
cleaning the welding torch hose-
pack, only apply the compressed
air against the wirefeeding
direction.
- Clean the welding torch hosepack on
the drive shaft using dry, reduced
compressed air
