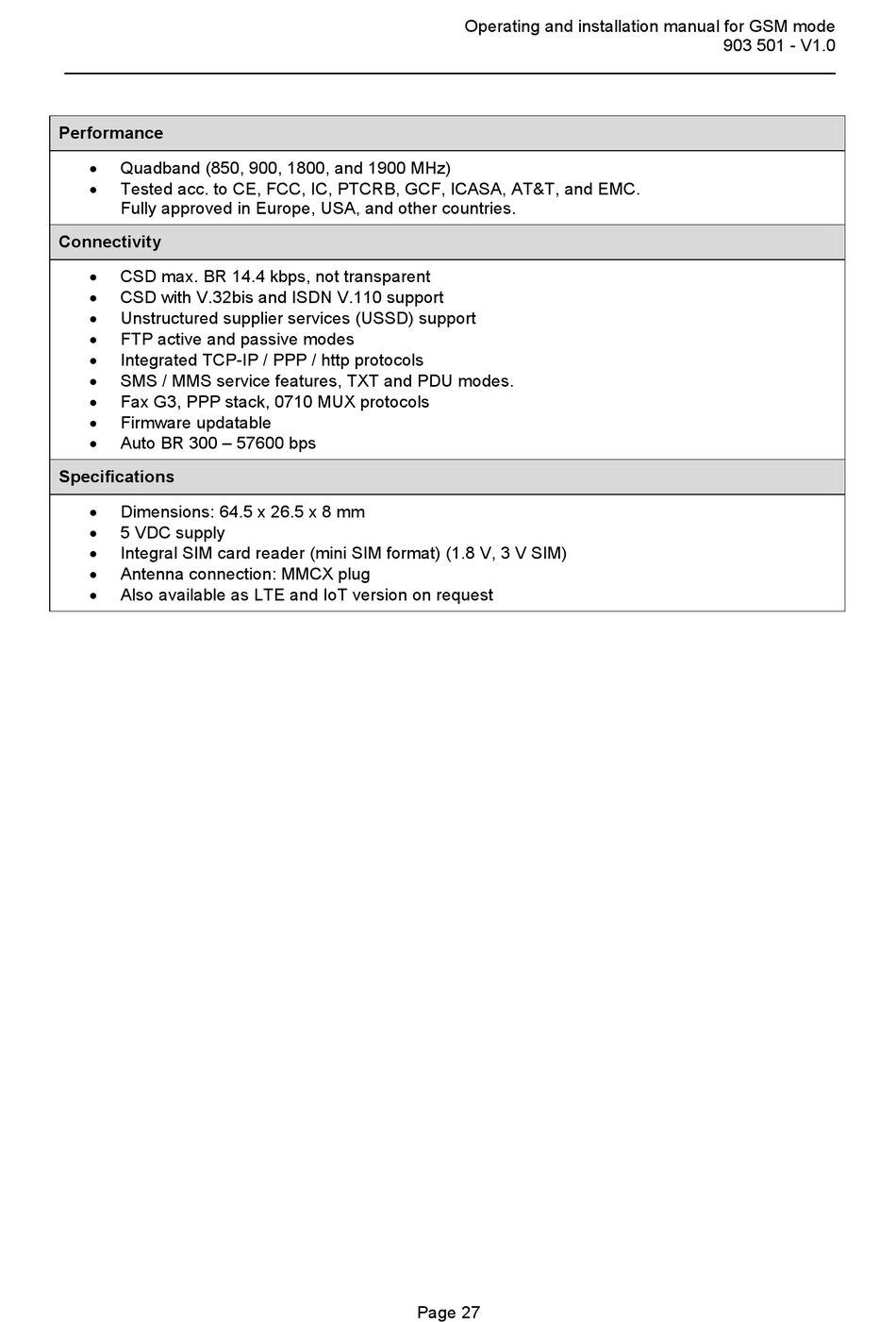

Condor SIM800F Betriebs Und Installationsanleitung Seite 56

_________________________________________________________________________________
Performance
 Quadband (850, 900, 1800, and 1900 MHz)
 Tested acc. to CE, FCC, IC, PTCRB, GCF, ICASA, AT&T, and EMC.
Fully approved in Europe, USA, and other countries.
Connectivity
 CSD max. BR 14.4 kbps, not transparent
 CSD with V.32bis and ISDN V.110 support
Unstructured supplier services (USSD) support

FTP active and passive modes

Integrated TCP-IP / PPP / http protocols

 SMS / MMS service features, TXT and PDU modes.
 Fax G3, PPP stack, 0710 MUX protocols
 Firmware updatable
 Auto BR 300 – 57600 bps
Specifications
 Dimensions: 64.5 x 26.5 x 8 mm
5 VDC supply

Integral SIM card reader (mini SIM format) (1.8 V, 3 V SIM)

 Antenna connection: MMCX plug
 Also available as LTE and IoT version on request
Operating and installation manual for GSM mode
Page 27
903 501 - V1.0
