3.FUNCTION OVERVIEW
3.1 Oscilloscope
▶ 3.1.1 User Interface

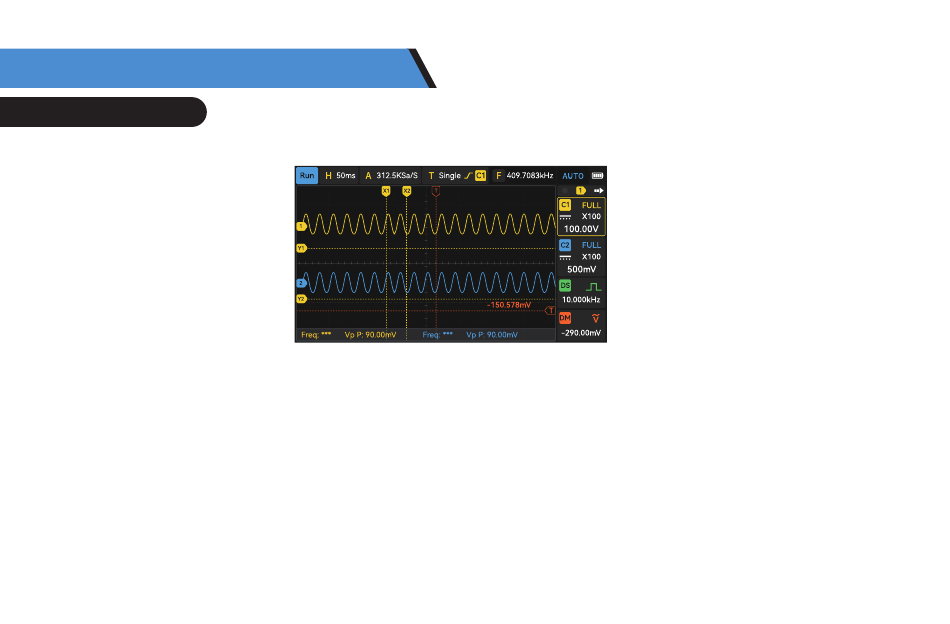

① Run status display: When the status shows "RUN" and is green, the oscilloscope is in running
mode, continuously acquiring and updating the input signal waveform in real time. When it shows
"STOP" and is red, the oscilloscope has stopped real-time acquisition.
② Horizontal time base display: Indicates the time per division on the horizontal axis. This value can
be adjusted using the horizontal knob. The adjustable range is 5 ns/div to 50 s/div.
③ Sampling rate / memory depth display: Shows the current sampling rate and memory depth.Ad-
justing the horizontal knob affects this parameter.
