BURG WÄCHTER secuENTRY easy PINCODE Montageanleitungen Seite 32

inner knob
30 mm ajustment range

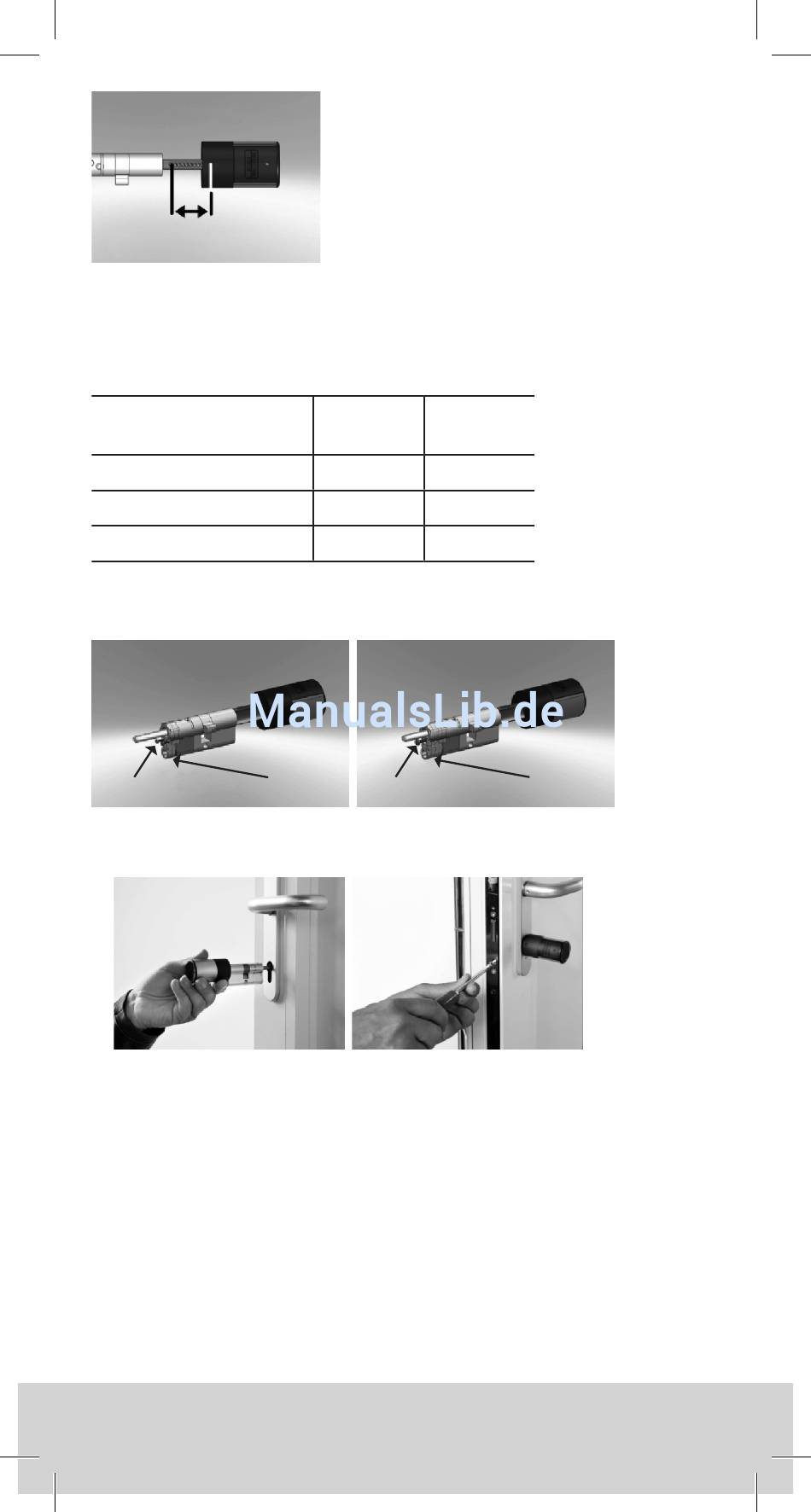

3 Depending on the door thickness, you can affix an appropriate adapter on
the outer side, in order to improve the path for the emergency key.
The following combinations are possible:
Space detent bolt / fitting
(mm) on the outer side
< 43
44 – 53
54 – 60
Tab. 1: Space detent bolt / mounting [mm] on the outer side
and the required adapter.
M2 × 10 Adapter 1
4 Move the secuENTRY easy cylinder from inside to outside through the
mortise lock into the door and then tighten the detent bolt.
5 Shift the inner knob over the shaft until attaining the required
dimension. Please make sure that the clearance between the rotary
knob and the door mounting is at least 1 mm. Then fix the rotary
knob using the hex key.
34 | English
Schematic illustration of
setup of the inner knob
ajustement
Adapter 1 Adapter 2
– –
X –
X X
2,9 × 16 Adapter 2
secuENTRY easy
6
7
8
