Betriebsanleitung User Instructions CENALED ARBEITSPLATZBELEUCHTUNG LED Flexarm-Leuchte LED Gelenkarmleuchte LED Gelenkkopfleuchte WORKPLACE LIGHTING LED flexarm luminaire LED adjustable arm luminaire LED joint head luminiare / 2014 / 35 / EU BA 04/2021...
Sachschäden führen kann. gibt Ihnen zusätzliche Informationen für die sichere und effiziente Verwendung des Produkts. verweist auf die Einhaltung dieser Betriebsanleitung. CE-Kennzeichnung: bestätigt die Konformität mit den geltenden Normen und Rechtsvorschriften. 2 | BA CENALED . BA 04/2021...
Maschinen können durch verschiedene Einflüsse Spannungs- spitzen abgeben. Diese Spannungsspitzen bei der Stromver- sorgung über Maschinen sind zu vermeiden: Verwenden Sie für die CENALED DC ausschließlich geregelte 24V DC Schaltnetz- teile, keine Trafos mit Gleichrichter, da diese durch Induktivitäten Spannungsspitzen abgeben können.
Die 24V DC LED-Leuchte wird mit einem vormontierten 3 m Sensorkabel, PVC ölresis- tent, und 2 offenen Enden zum direkten Anschluss an z.B. eine Maschinensteuerung ausgeliefert. Für weitere Anschlussalternativen finden Sie geignetes Anschlussmate- rial, Leitungen und Zubehör im Zubehörangebot von LED2WORK. 4x Befestigungsbohrungen für M6 4 | BA CENALED . BA 04/2021...
CENALED CENALED SPOT AC - Produktnummern 121012-1x: Die LED-Leuchte mit den Anschlusswerten 100-305V AC hat eine schwarze 3 m Gerä- tezuleitung H05RR mit Schutzkontaktstecker CEE7/7 für einen direkten Anschluss an ein AC-Netz. 6 | Wartung und Pflege Die LED-Leuchte ist für Sie wartungsfrei. Nehmen Sie keine Veränderungen an der Leuchte vor (bis auf die in dieser Betriebsanleitung enthaltenen Informationen zur Montage).

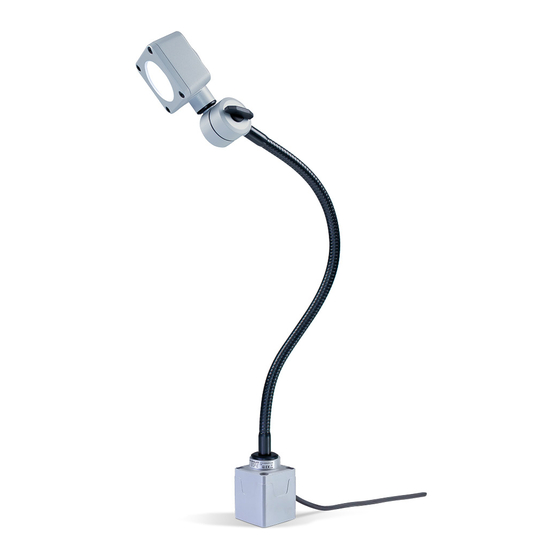

CENALED SPOT Flexarm AC 500 mm 121012-02 CENALED SPOT Gelenkarm DC 121012-12 CENALED SPOT Gelenkarm AC 350 mm (1) / 450 mm (2) 121012-03 CENALED SPOT Gelenkkopf DC 121012-13 CENALED SPOT Gelenkkopf AC 6 | BA CENALED . BA 04/2021...
Swivel range joint ~195° Swivel range joint ~195° Rotaion range of the head ~270° Rotaion range of the head ~270° CENALED 121012-01/121012-11 CENALED 121012-02/121012-12 Swivel range ontop the screw-on base [D] ~300° Swivel range joint ~195° Rotaion range of the head ~270°...
Seite 8
Gives you additional information for the safe and efficient use of the product. Refers to compliance with these operating instructions. CE marking: confirms conformity with applicable standards and regulations. 8 | BA CENALED . BA 04/2021...
Only use regulated 24V DC switched-mode power supplies for CENALED DC, not transformers with rectifiers, as these can give rise to voltage spikes due to inductance. Hot plugging should be avoided (connection of the luminaire to a power supply which is already connected to the mains), since this can lead to the destruction of the LED luminaire.
5 | Connection CENALED SPOT DC - item numbers 121012-0x: The direct current LED luminaire has a sensor cable of three meters, PVC oil resistent, and two open cable ends for a direct connection to a machine control for example. For further connection options, like cables, plugs or materials you can find in the accesso- ries of LED2WORK.
CENALED CENALED SPOT AC - item numbers 121012-1x: The LED luminaire for 100-305V AC has a black H05RR supply cable of three meters and a CEE7/7 schuko plug for direct connection to an AC mains power supply. 6 | Maintenance and Care The LED luminaire is maintenance-free.
Friday 8 am to 12 midday and 1 pm to 3 pm By email: info@led2work.com 10 | Technical data CENALED SPOT DC CENALED SPOT AC Connection values 24 V DC ±10 % 100-305V AC ± 10%, 50-60 Hz Class of protection Max.
