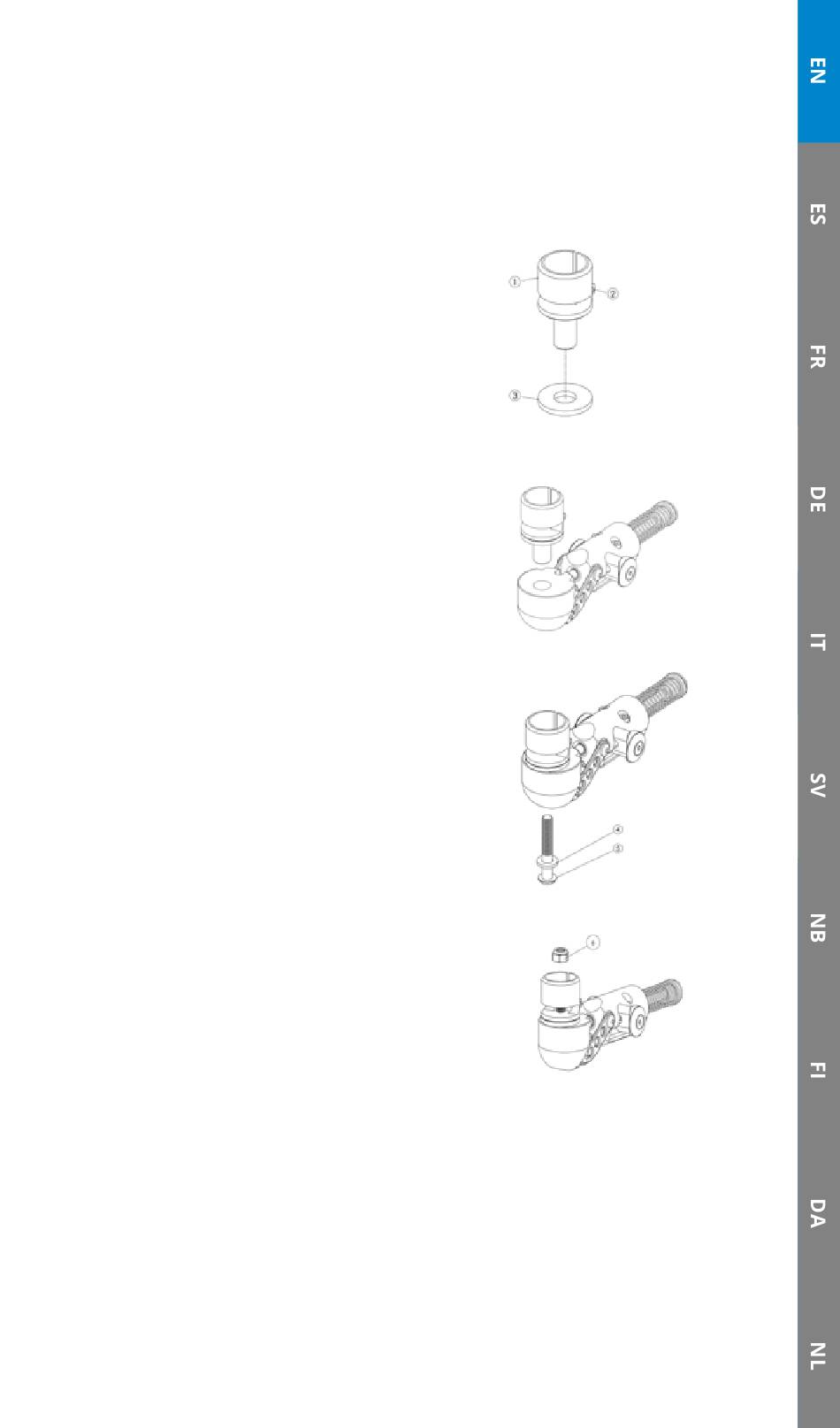

Attaching TH Friction Adapter EndoArm Elbow
631028353- EndoArm Elbow TH Friction Adapter ( Addon)
Step 1
Attach the Nylon Washer 25x2,5x10,5 (3) to the
stud of the EndoArm Elbow TH Friction Adapter
(1) .
Step 2
Insert into the Endoarm Elbow
Step 3
Attach M6x40 Dome Bolt (5) with Nylon Washer
12x1,6x6,4 (4) through the EndoArm Elbow and
thread into the friction adapter
Step 4
From the top attach the M6 Lock nut (6), but do
not tighten yet .
