Commissioning
The decoder is designed for switching a
◆
turnout with double coil drive and has an
output with 3 connections for this purpose.
The connection cables of a point machine with
◆
double coil drive are connected to the three
connections of the output accordingly.
The middle connection is the supply line
◆
with positive voltage pole.
The outer connections are the return line
◆
with negative voltage pole.

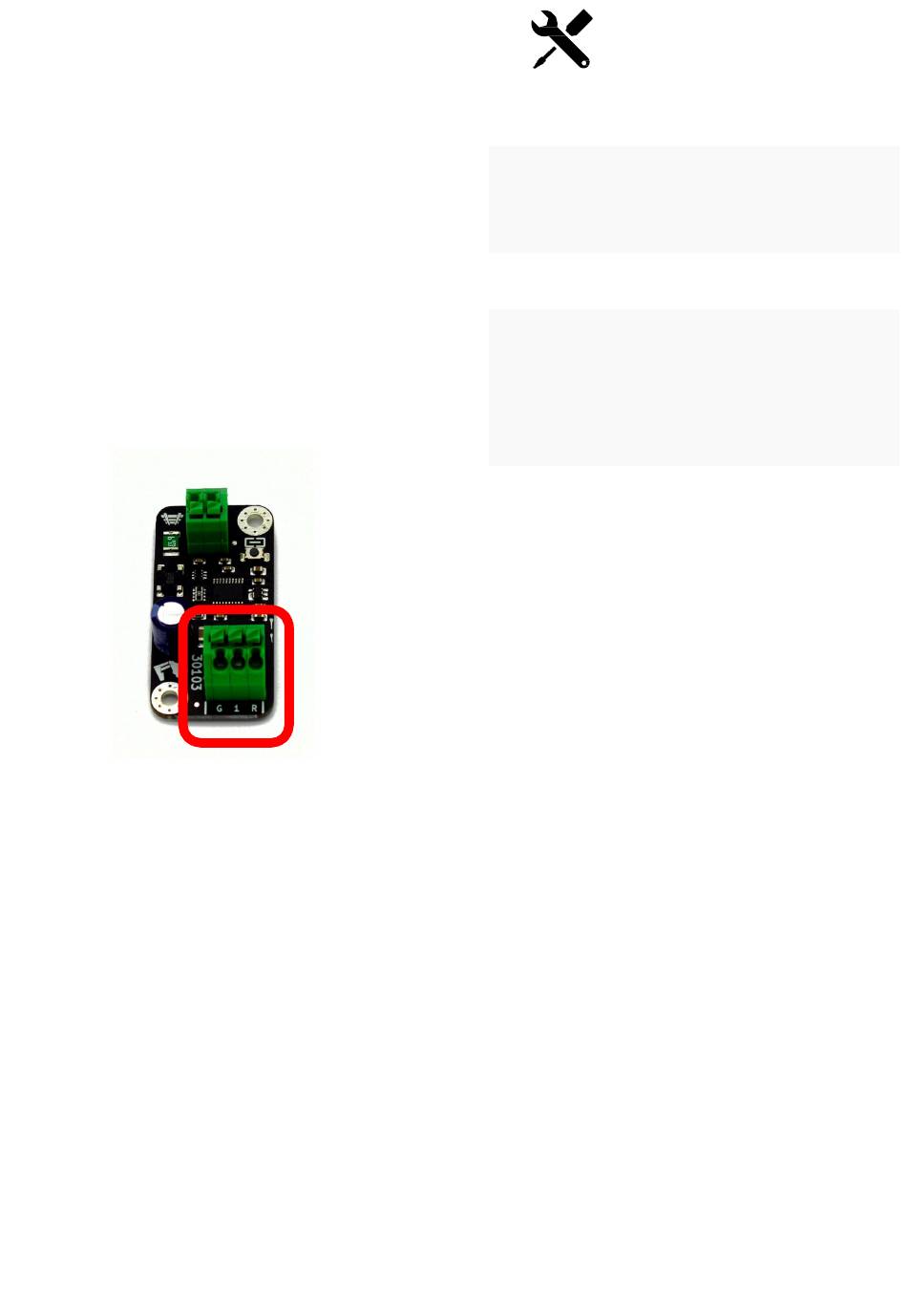

Connect outputs
Performance
9-24V direct voltage
◆
2A current
◆

Configuration

If the decoder is switched via a command, the
◆
output is supplied with voltage depending on
the configuration.
The preset switching time is 400ms.
◆
