Commissioning

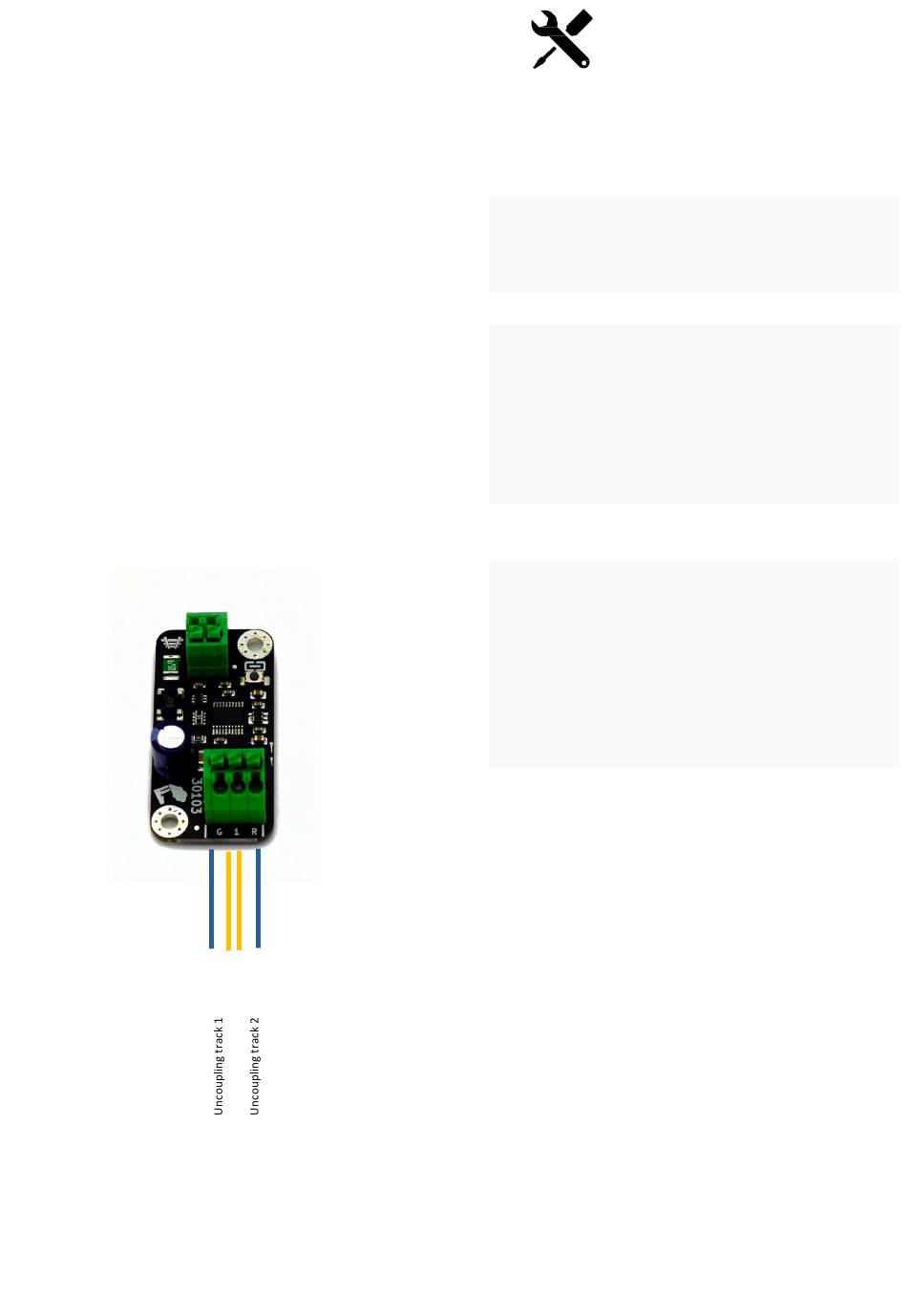

Connecting uncoupling tracks
In contrast to point machines, uncoupling
◆
tracks only have two connection cables.
The decoder has an output with 3 connections.
◆
The middle connection is the supply line
◆
with positive voltage pole.
The G and R connections are each the
◆
return line with a negative voltage pole.
Two uncoupling tracks can be connected
◆
to the output by sharing the middle
connection.
Connect outputs
If the output is switched via a command from the
control center, either connection G or R is switched
through and thus decoupling track 1
or uncoupling track 2 is activated.
Switching time
The preset switching time of the decoder is
◆
400ms.
For uncoupling tracks, it is advisable to set
◆
the switching time to 1000ms, i.e. 1 second.
increase.
Take your time
If the switching time is increased to 1 second,
◆
the uncoupling track remains activated as
long as the button on the central unit is
pressed.
This allows you to precisely control the
◆
uncoupling process.
7
