Installation in the Protec P3000

36
Slide the PRO-Check into the opening located on the front side of the Protec P3000.
►
If the PRO-Check reference leak is inserted properly, it still protrudes approx. 10 mm from
the front panel.

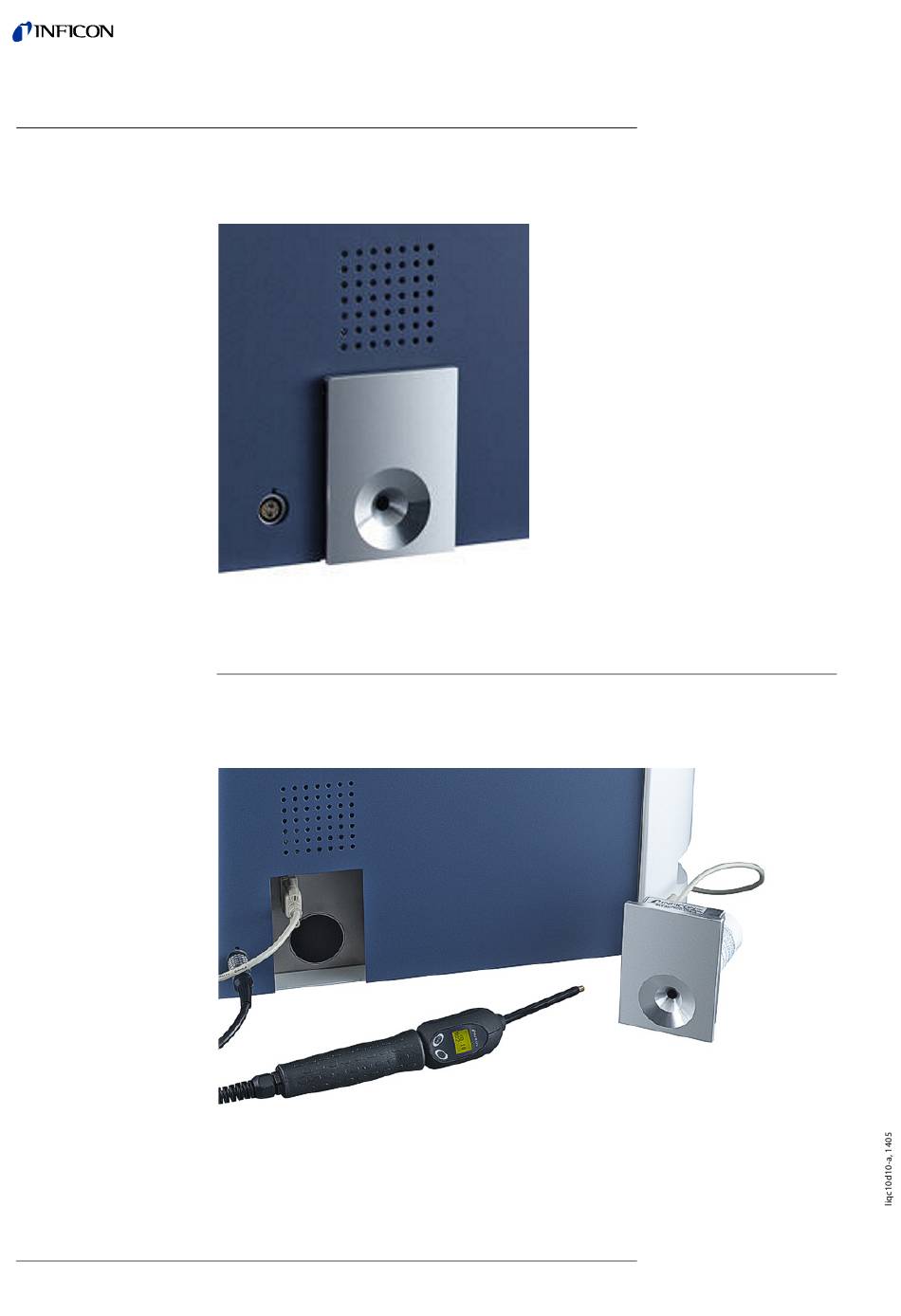

Fig. 2: PRO-Check in the front panel of the Protec P3000
Connection with a 9-pin Sub-D cable
Connect the Sub-D cable to the jack on the rear of the PRO-Check.
►
Connect the Sub-D cable to the jack on the front mounting opening of the
►
Protec P3000.
Fig. 3: PRO-Check is connected by cable
