Commissioning
Automatic learning mo dus
Starting with the first output, the decoder waits in
◆
learning mode for the next command from the
central unit and assigns the address to the output.
The received command is also executed for
◆
confirmation, i.e. the output is switched.
After the first command received, the next
◆
output is automatically selected and the system
waits for the next address.
Once an address has been assigned to all
◆
outputs, programming mode ends
automatically.
Assign addresses
If an output is to be skipped during
◆
addressing, the button can be pressed
again.
If no command is received within 60 seconds
◆
received or the button is pressed, the learning
mode ends automatically.
Addresses
An individual address can be assigned to each
◆
output. The address is freely selectable.
An address can be assigned multiple times.
◆
When the address is called up, all outputs
which are assigned to this address.
Example
1)

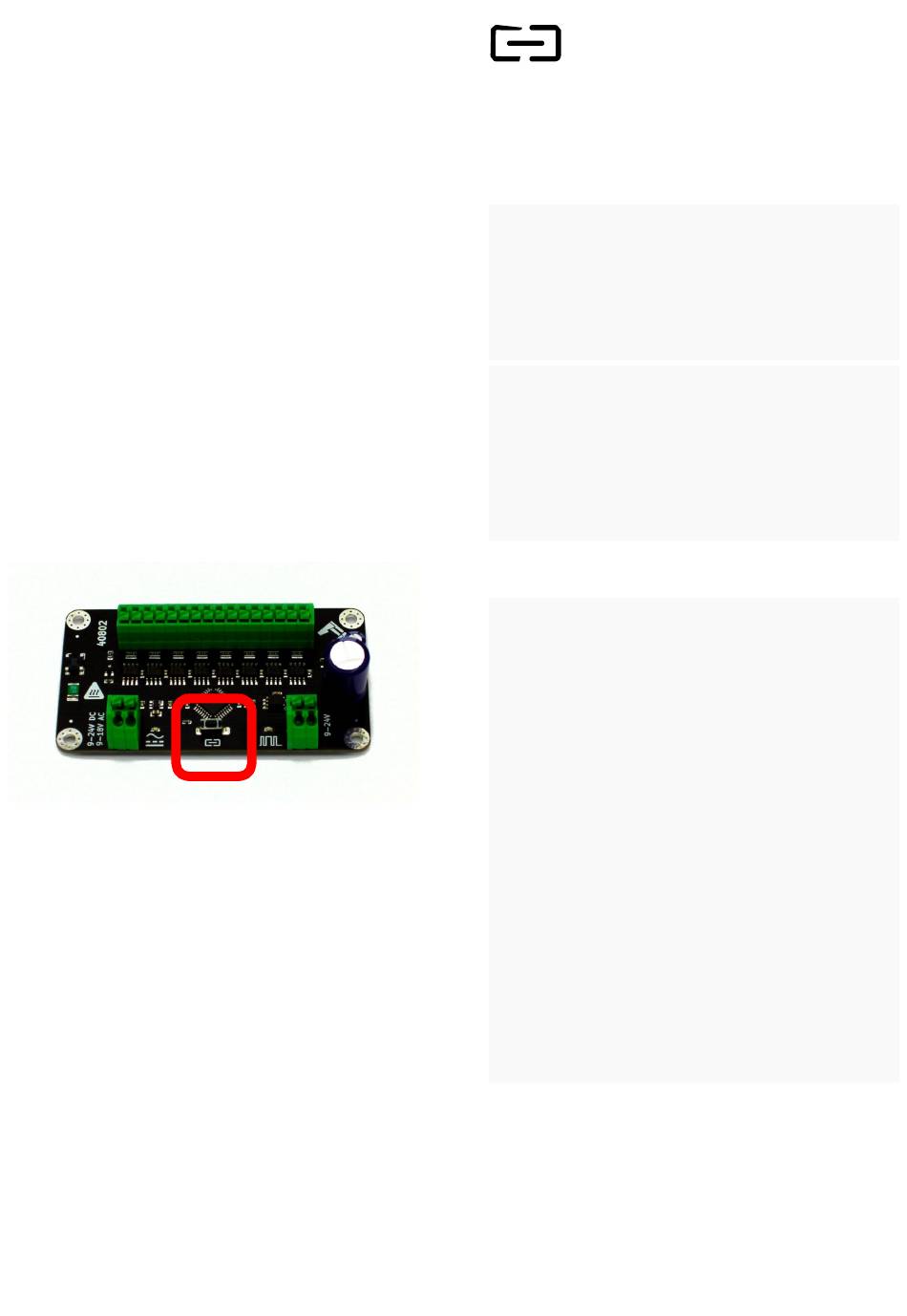

Press the button on the decoder.
2)
The decoder starts with output 1 and waits for
the next command. The blue LED flashes
rhythmically once.
3)
Execute a switch command at the control center,
e.g. switch 22 to red.
4)
The decoder receives the command and assigns
address 22 to the output. The decoder switches
the output to red.
5)
The decoder switches to output 2 and waits for the
next command. The blue LED flashes
rhythmically twice.
6) Steps 3-5 are carried out for each output
7)
The learning mode ends after the last
output. The blue LED lights up again
constant.
