Commissioning
The decoder is designed to control turnouts with
◆
motor drives and has eight outputs for this
purpose.
Each output has two connections to which
◆
the respective motor drive can be connected.

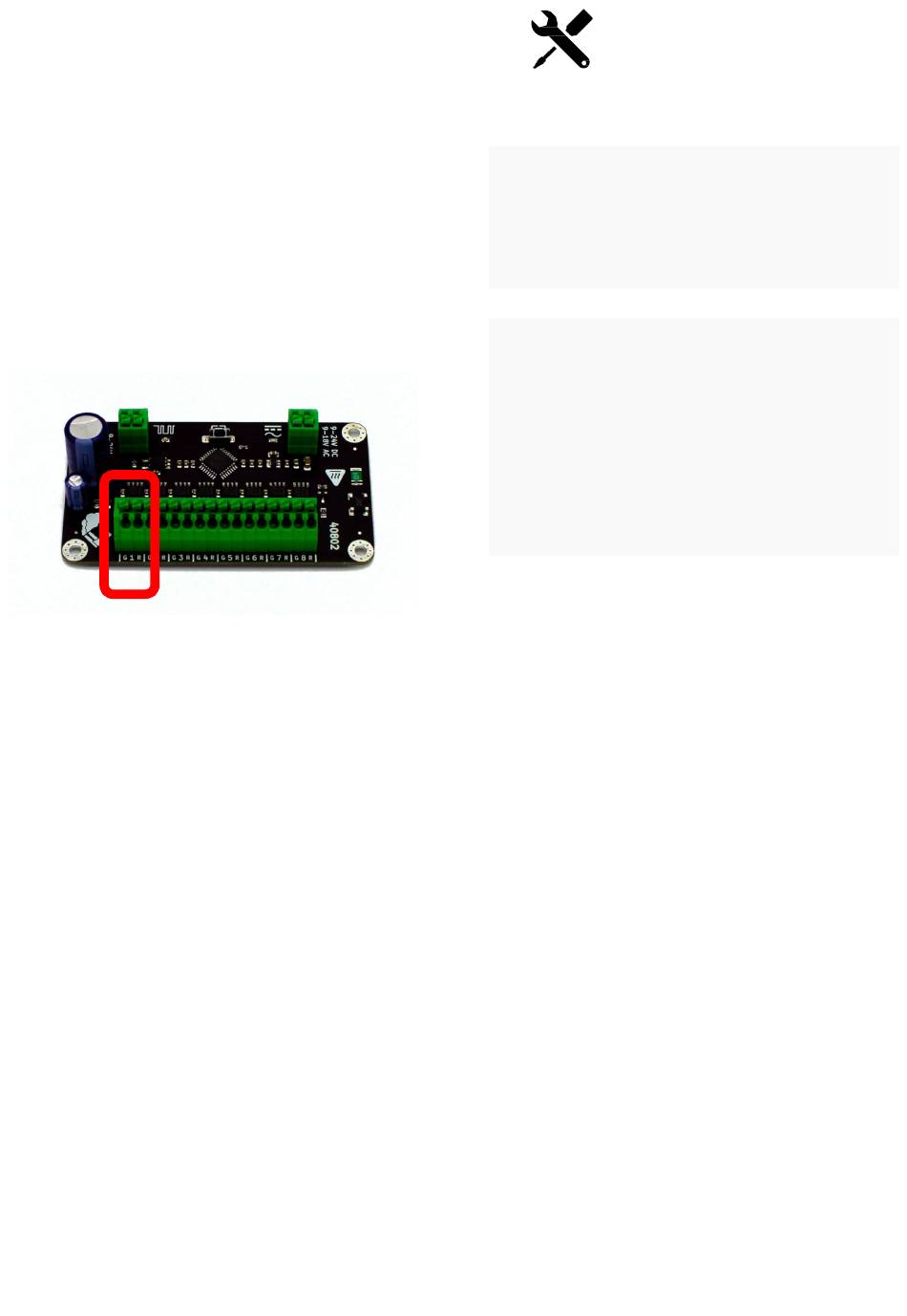

Connect outputs
Performance
9-24V direct voltage
◆
2A current per output
◆
Maximum 2A Total
◆
Switches
If a switch is switched via a command, the
◆
respective output is supplied with voltage
depending on the configuration.
Depending on the command, the polarity of the
◆
connections is swapped in order to adjust the
direction of rotation of the motor drive.
The preset switching time is 4 seconds.
◆
