Commissioning
Automatic learning mo dus
Starting with the first output, the decoder waits
◆
in learning mode for the next command from
the central unit and assigns the address to the
output.
Address assignment is only necessary in
◆
LocoNet and RS-BUS mode. In LocoNet, each
output can be assigned its own address (1-
2048). In RS-BUS, the module address is
specified (1-130). The S88 bus has no
Address assignment. The addresses here depend
on the position in the chain.
After the first command received, the next
◆
output is automatically selected and the
system waits for the next address. (only with
LocoNet)
Once an address has been assigned to all
◆
outputs, programming mode ends
automatically.
Assign addresses
If an output is to be skipped during
◆
addressing, the button can be pressed
again.
If no command is received within 60 seconds
◆
received or the button is pressed, the learning
mode ends automatically.
Addresses
An individual address can be assigned to each
◆
output (LocoNet only). The address is freely
selectable.
An address can be assigned multiple times.
◆
When the address is called up, all outputs
which are assigned to this address.
Example

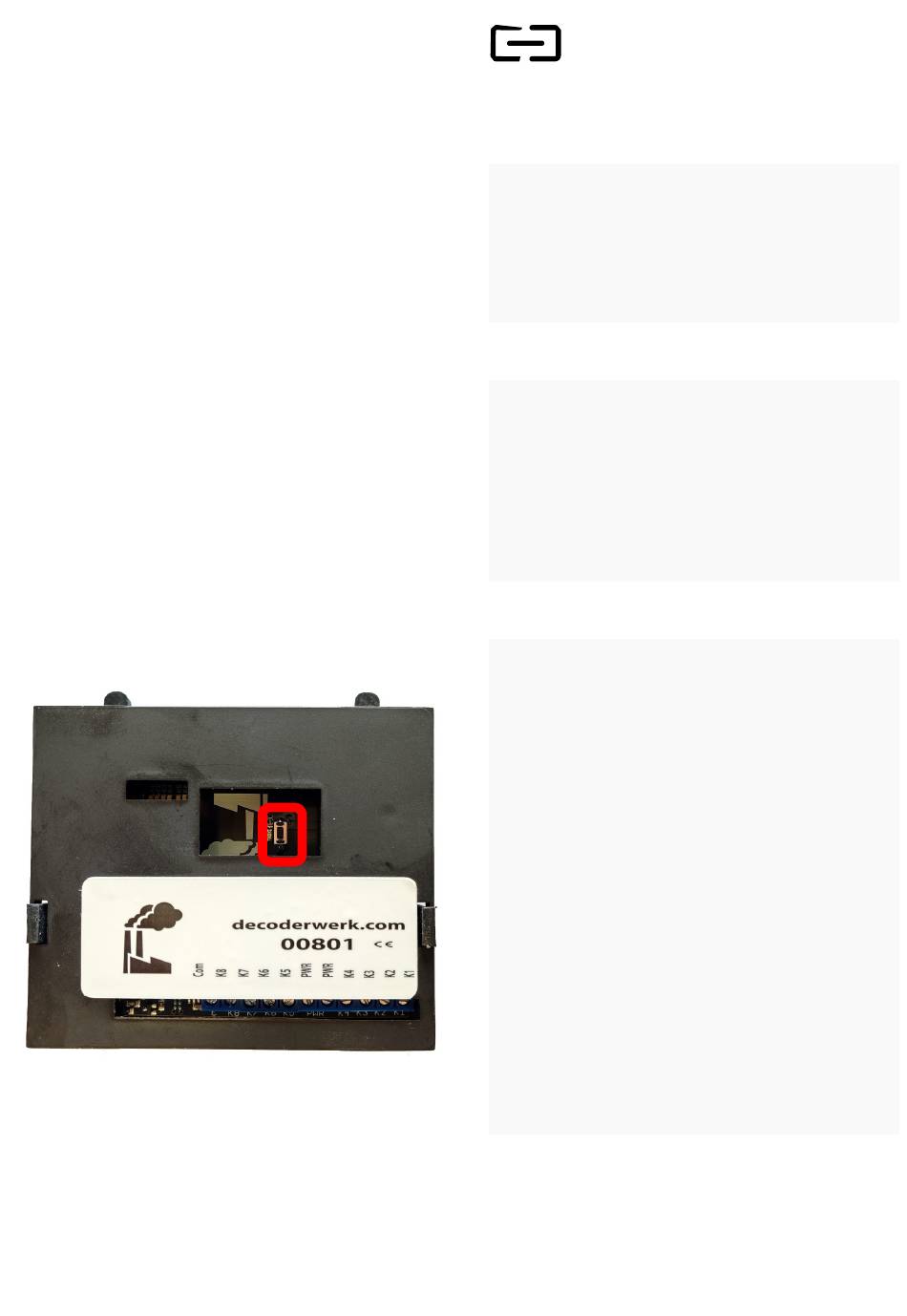

1) Press the button on the decoder.
2) The decoder starts with output 1 and waits
for the next command. The blue LED flashes
rhythmically once.
3) Execute a switch command at the control center,
e.g. switch 22 The switching direction is
irrelevant.
4) The decoder receives the command and
assigns address 22 to the output.
5) The decoder switches to output 2 and waits for
the next command. The red LED flashes
rhythmically twice.
6) Steps 3-5 are carried out for each output
7) The learning mode ends after the last
output. The red LED lights up again
constant.
