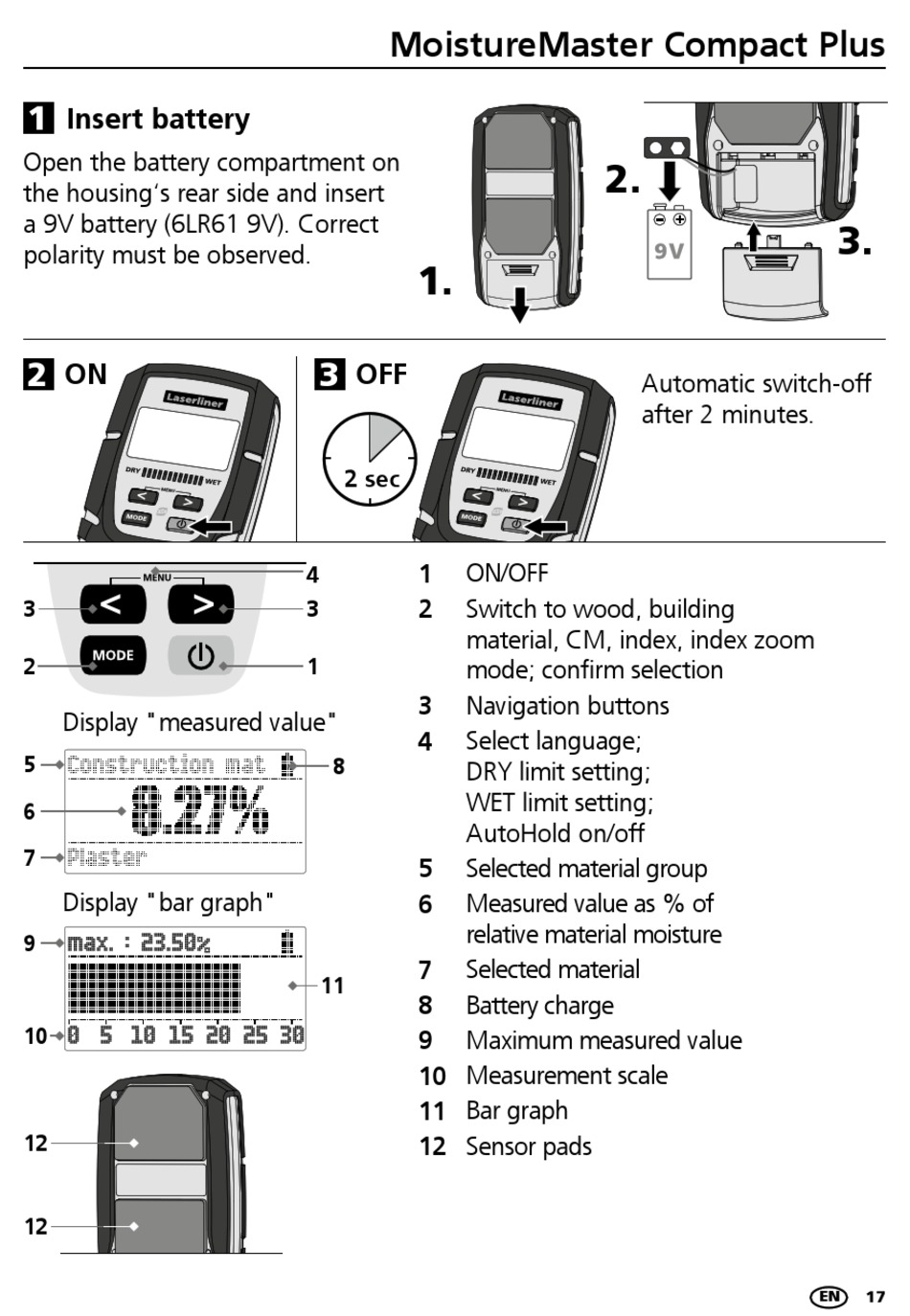

LaserLiner MoistureMaster Compact Plus Bedienungsanleitung Seite 17

1
Insert battery
Open the battery compartment on
the housing's rear side and insert
a 9V battery (6LR61 9V). Correct
polarity must be observed.
2
ON
3
2
Display "measured value"
Construction mat
5
6
Plaster
7
Display "bar graph"
9
10
12
12
MoistureMaster Compact Plus
1.
3
OFF
2 sec
1 ON/OFF
4
Switch to wood, building
2
3
material, CM, index, index zoom
1
mode; confirm selection
3 Navigation buttons
Select language;
4
8
DRY limit setting;
WET limit setting;
AutoHold on/off
5 Selected material group
Measured value as % of
6
relative material moisture
7 Selected material
11
8 Battery charge
Maximum measured value
9
10 Measurement scale
Bar graph
11
12 Sensor pads
2.
Automatic switch-off
after 2 minutes.
3.
17
