Assembly and installation
4.7
Powered relay connector

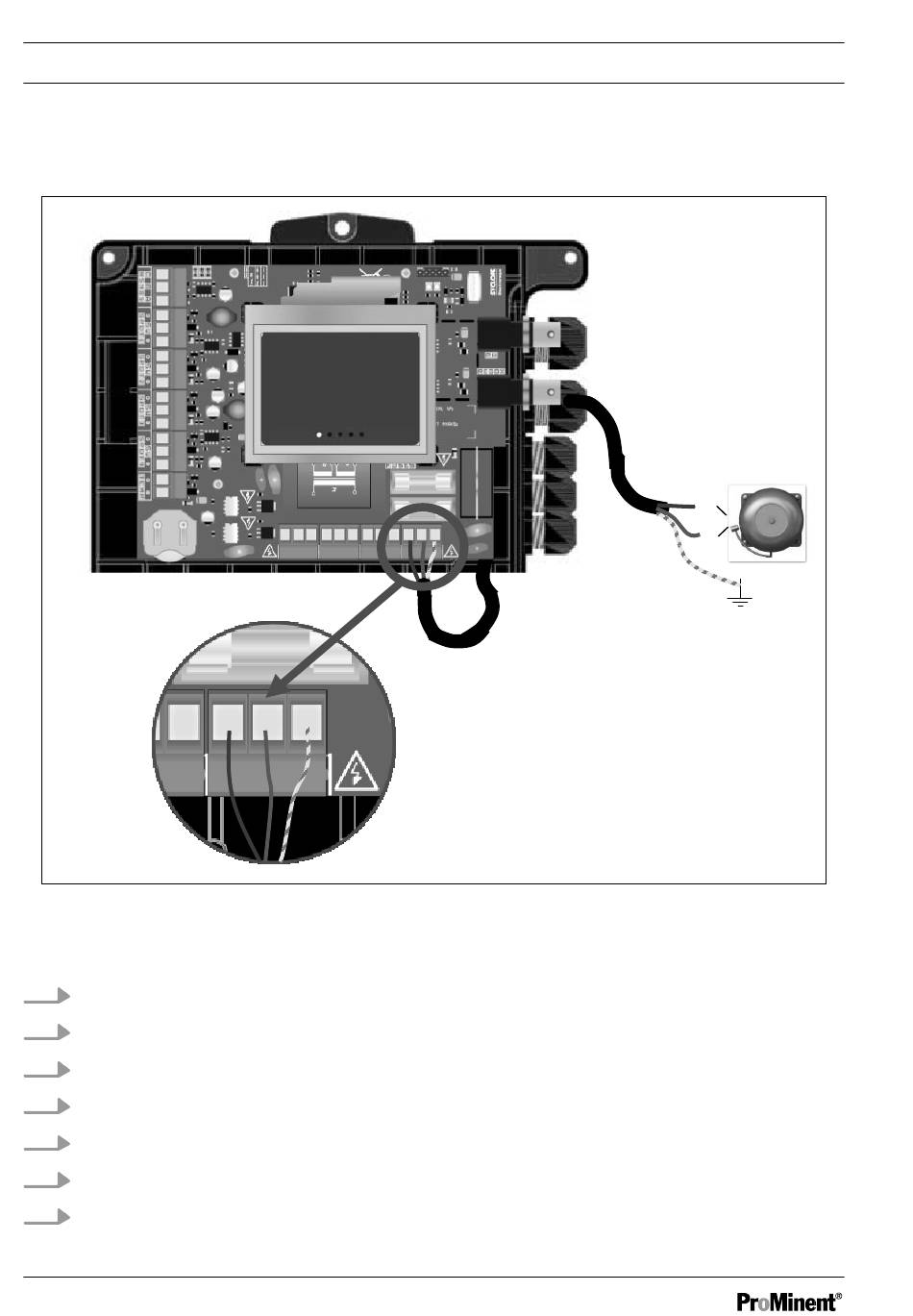

Fig. 10: Powered relay connector
Use a cable with at least 1.5 mm
1.
De-energise the unit.
2.
Remove the front cover
3.
Strip the cable to obtain 7 mm blank cable wires.
4.
Insert the cable through a cable opening.
5.
Connect the cable earth to PE.
6.
Connection Phase to L.
7.
Connection the Neutral wire to N.
24
N PE
L
2
per cable wire.
L
N
PE
A2805
