Assembly and installation
4.6

Potential-free switch connector (e.g. remote control)

SPDT1: The SPDT1 input is assigned to the remote control contact.
SPDT2: The SPDT2 input is assigned to the base valve or the suction lance of the pH storage tank.
SPDT3: The SPDT3 input is assigned to the base valve or the suction lance of the ORP storage
tank.
SPDT1 SPDT2 SPDT3
A2804

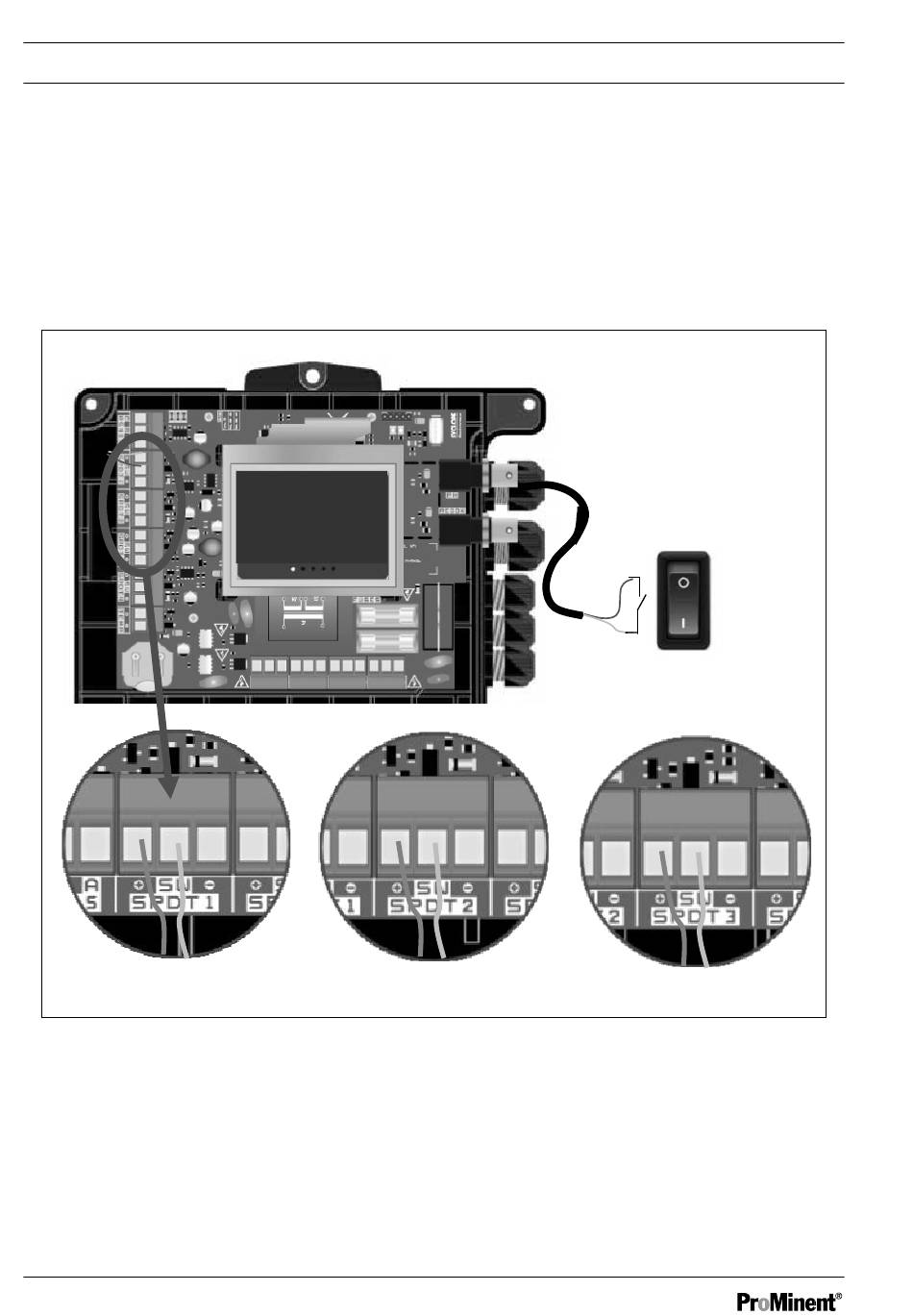

Fig. 9: Potential-free switch connector (remote control)
