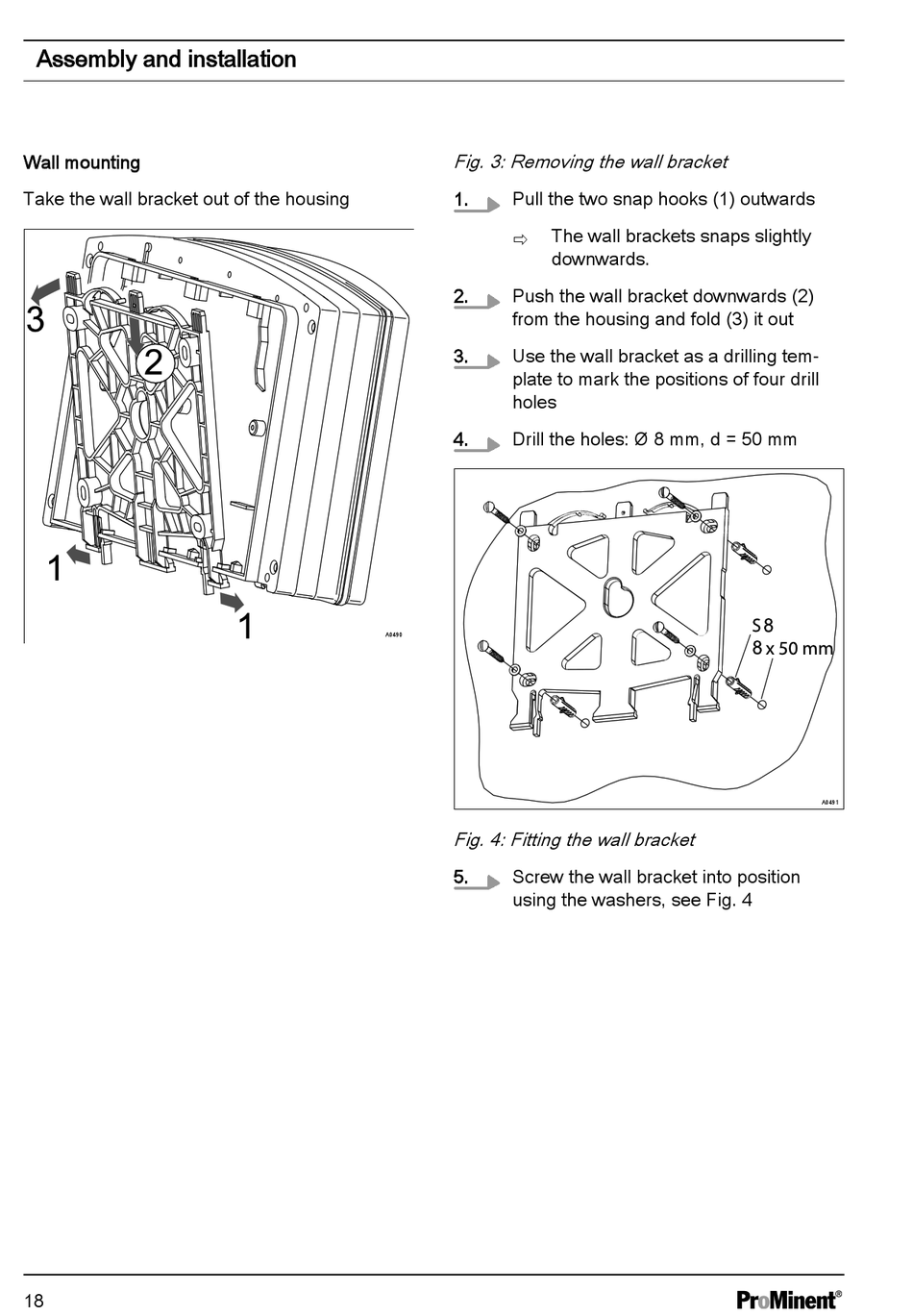

Assembly and installation
Wall mounting
Take the wall bracket out of the housing
18
Fig. 3: Removing the wall bracket
1. Pull the two snap hooks (1) outwards
The wall brackets snaps slightly
ð
downwards.
2. Push the wall bracket downwards (2)
from the housing and fold (3) it out
3. Use the wall bracket as a drilling tem‐
plate to mark the positions of four drill
holes
4. Drill the holes: Ø 8 mm, d = 50 mm
A0490
Fig. 4: Fitting the wall bracket
5. Screw the wall bracket into position
using the washers, see Fig. 4
A0491
