3.2. Adjusting the wheelchair to the user
3.2.1. Seat depth
The wheelchair is adjustable in 4 different seat depths over a range of 75
mm (steps of 25 mm).

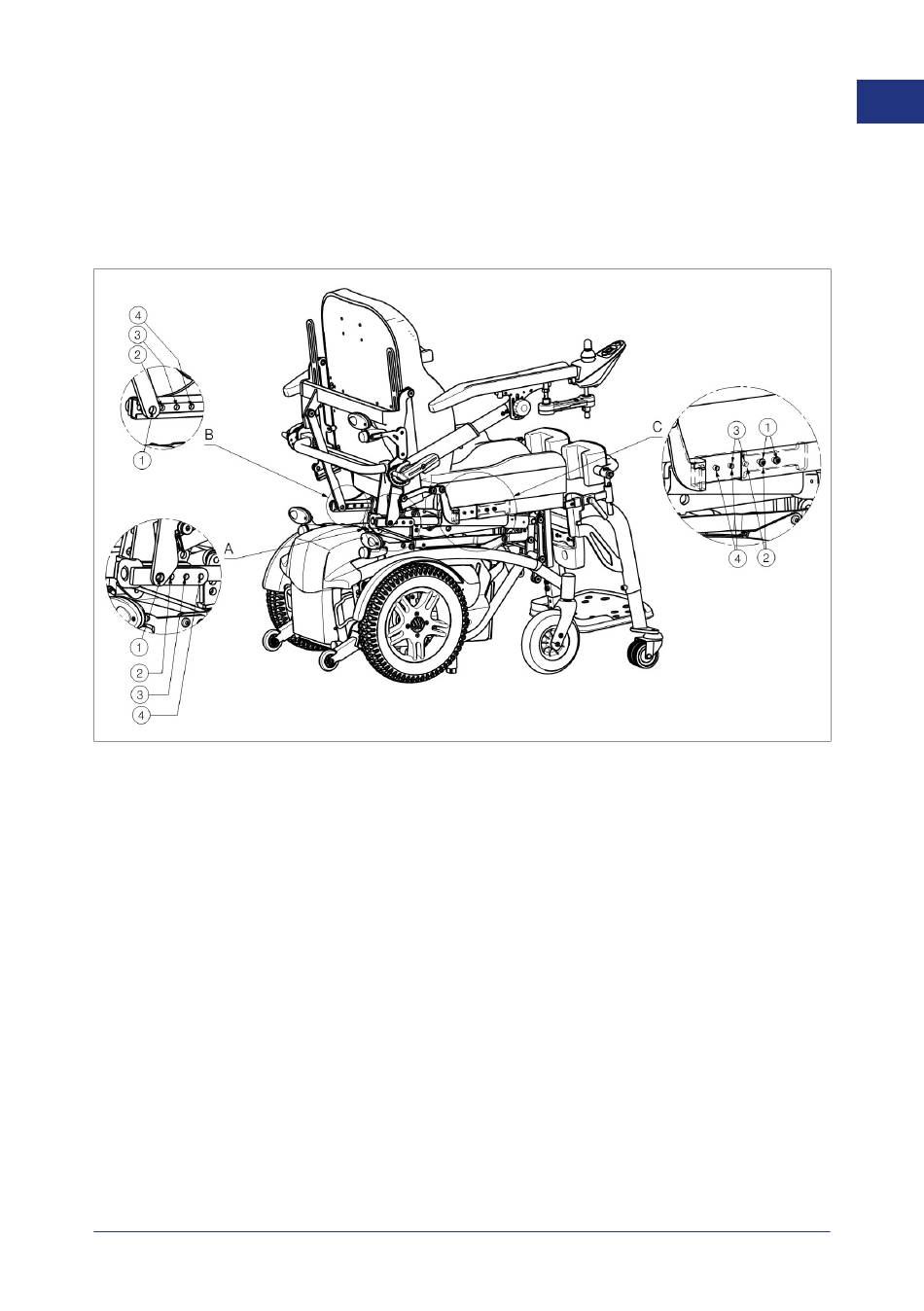

3.2.1.1. Detail A: Adjust the backrest motor.
1. Loosen the screw from the backrest motor.
2. Move the motor more backwards or forwards until the desired position
and until the relevant holes lie above one another so that the fixing
screws can be inserted.
3. Retighten the screw firmly.
3.2.1.2. Detail B: Adjust the telescopic guide.
1. Loosen the screw from the telescopic guide.
2. Move the telescopic guide more backwards or forwards until the
desired position and until the relevant holes lie above one another so
that the fixing screws can be inserted.
3. Retighten the screw firmly.
