7. Make sure that both toothed clamps

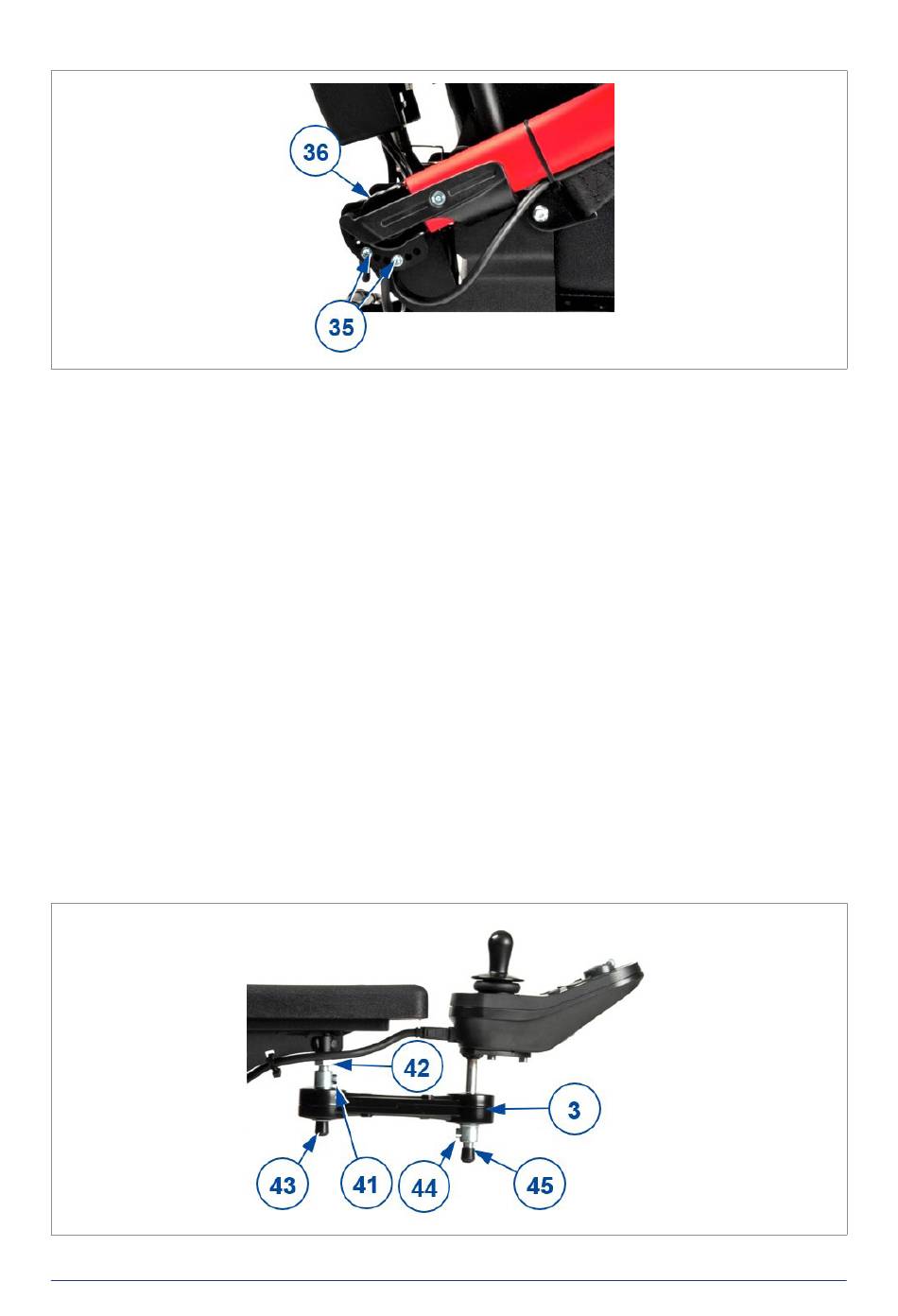

3.2.5. Operating console
3.2.5.1. Mounting position left or right
1. Cut the cable ties and unplug the power cable from the operating
console.
2. Hold the control with its support
(41).
3. Loosen hex nut
4. Mount shaft
5. Mount the control support
6. Make sure all connections are well secured.
7. Guide the cable and plug the cable in the operating console.
8. Tie the cable to the back of the wheelchair subframe and on the
armrest with cable ties. Make sure that the cable is long enough to
make the adjustment of armrest and console possible.
Installation manual | 2025-06
(42) and demount shaft
(43) in the other armrest and lock it with hex nut (42).
(3)
(36) are firmly secured.
(3) while removing M6 socket screw
(43) from the armrest.
with socket screw
12
(41) on the shaft (43).
