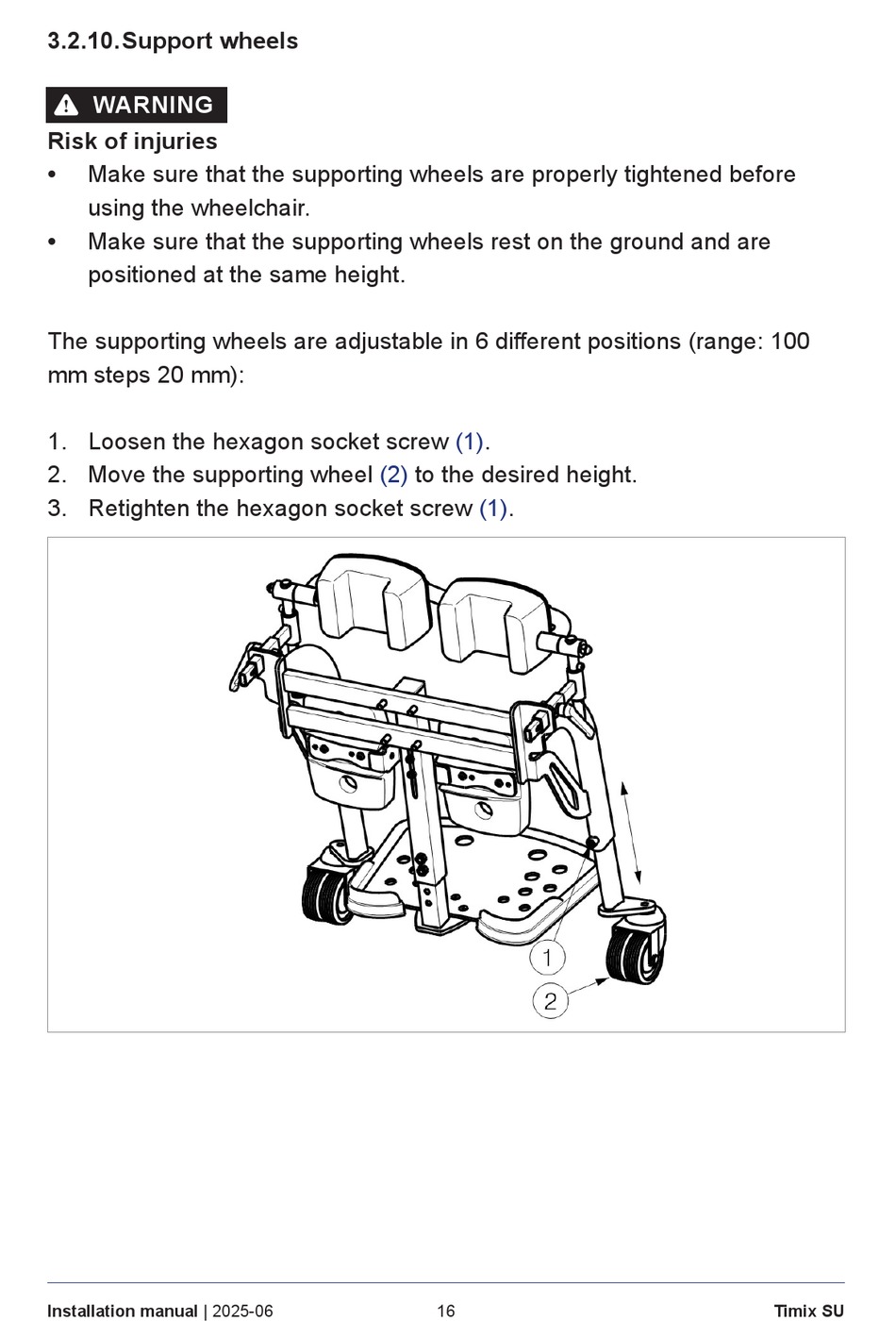

3.2.10. Support wheels
WARNING
6
Risk of injuries
• Make sure that the supporting wheels are properly tightened before
using the wheelchair.
• Make sure that the supporting wheels rest on the ground and are
positioned at the same height.
The supporting wheels are adjustable in 6 different positions (range: 100
mm steps 20 mm):
1. Loosen the hexagon socket screw (1).
2. Move the supporting wheel
3. Retighten the hexagon socket screw (1).
Installation manual | 2025-06
(2) to the desired height.
16 Timix SU
