AIDOO PRO AIR TO WATER AS AN AIR TO WATER GATEWAY

Devices included in the solution:
•
AZAI6WSPxxx - Aidoo Pro Air To Water
•
One of the following devices:
a.
AZX6CCPGAWI - Airzone hydronic production control board
b.
AZX6WSPHUB - Webserver Hub Airzone Cloud Dual

Connection

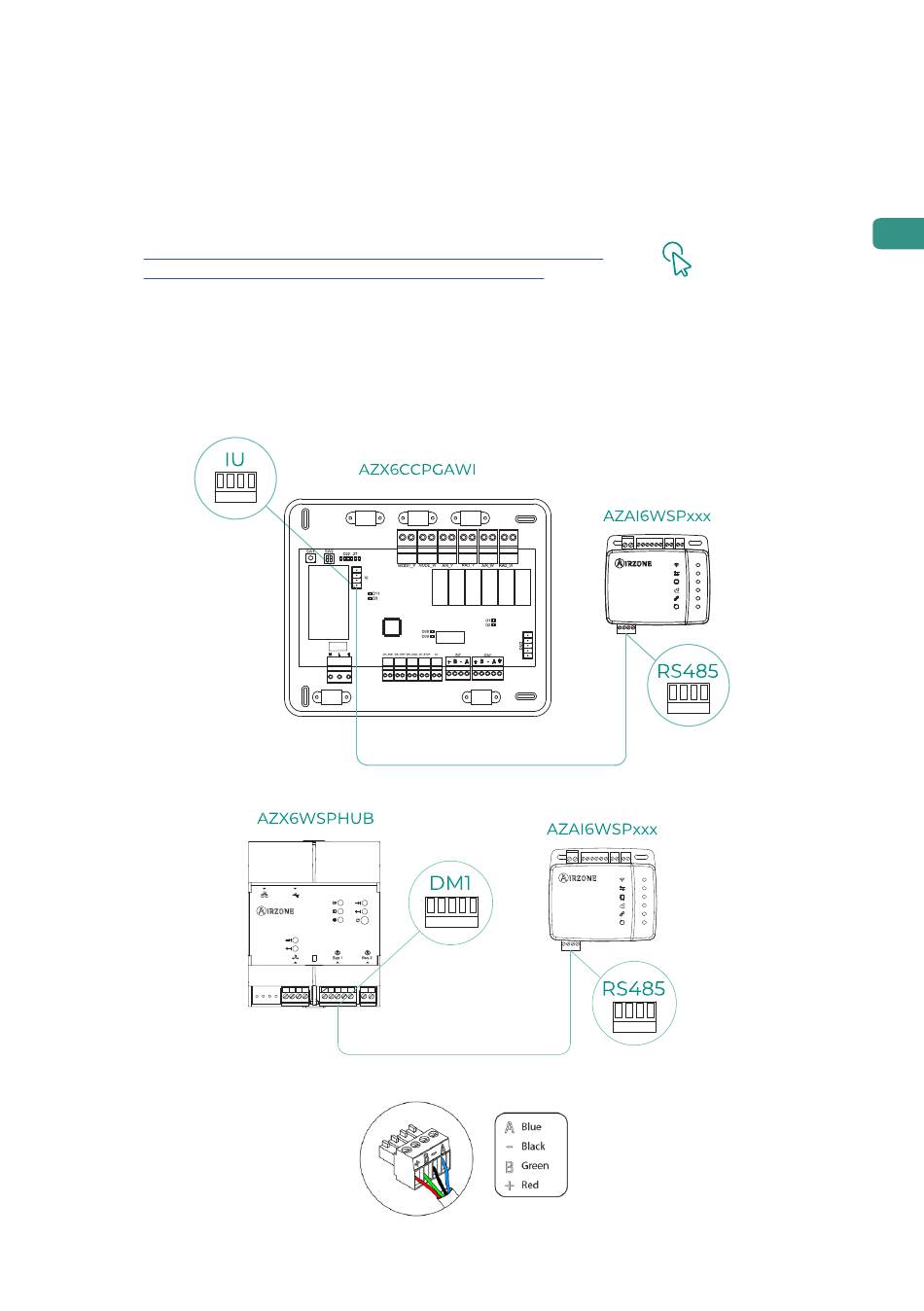

Connect the RS485 port of the Aidoo Pro Air To Water to the IU port of the hydronic production
control board, i.e. where the air to water gateway would normally be connected, or to the DM1
port of the Webserver.
