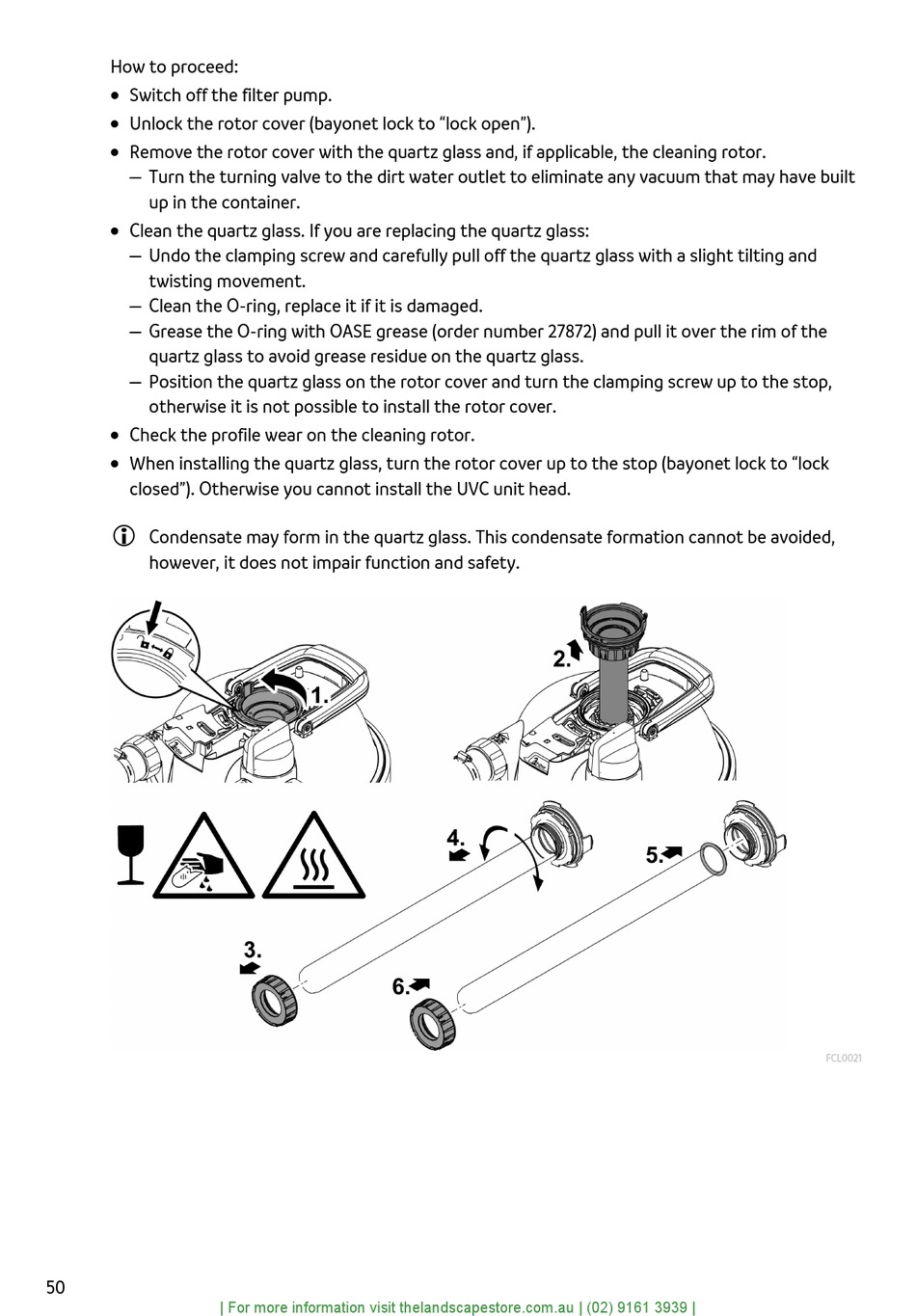

How to proceed:
• Switch off the filter pump.
• Unlock the rotor cover (bayonet lock to "lock open").
• Remove the rotor cover with the quartz glass and, if applicable, the cleaning rotor.
– Turn the turning valve to the dirt water outlet to eliminate any vacuum that may have built
up in the container.
• Clean the quartz glass. If you are replacing the quartz glass:
– Undo the clamping screw and carefully pull off the quartz glass with a slight tilting and
twisting movement.
– Clean the O-ring, replace it if it is damaged.
– Grease the O-ring with OASE grease (order number 27872) and pull it over the rim of the
quartz glass to avoid grease residue on the quartz glass.
– Position the quartz glass on the rotor cover and turn the clamping screw up to the stop,
otherwise it is not possible to install the rotor cover.
• Check the profile wear on the cleaning rotor.
• When installing the quartz glass, turn the rotor cover up to the stop (bayonet lock to "lock
closed"). Otherwise you cannot install the UVC unit head.

Condensate may form in the quartz glass. This condensate formation cannot be avoided,
however, it does not impair function and safety.
50
