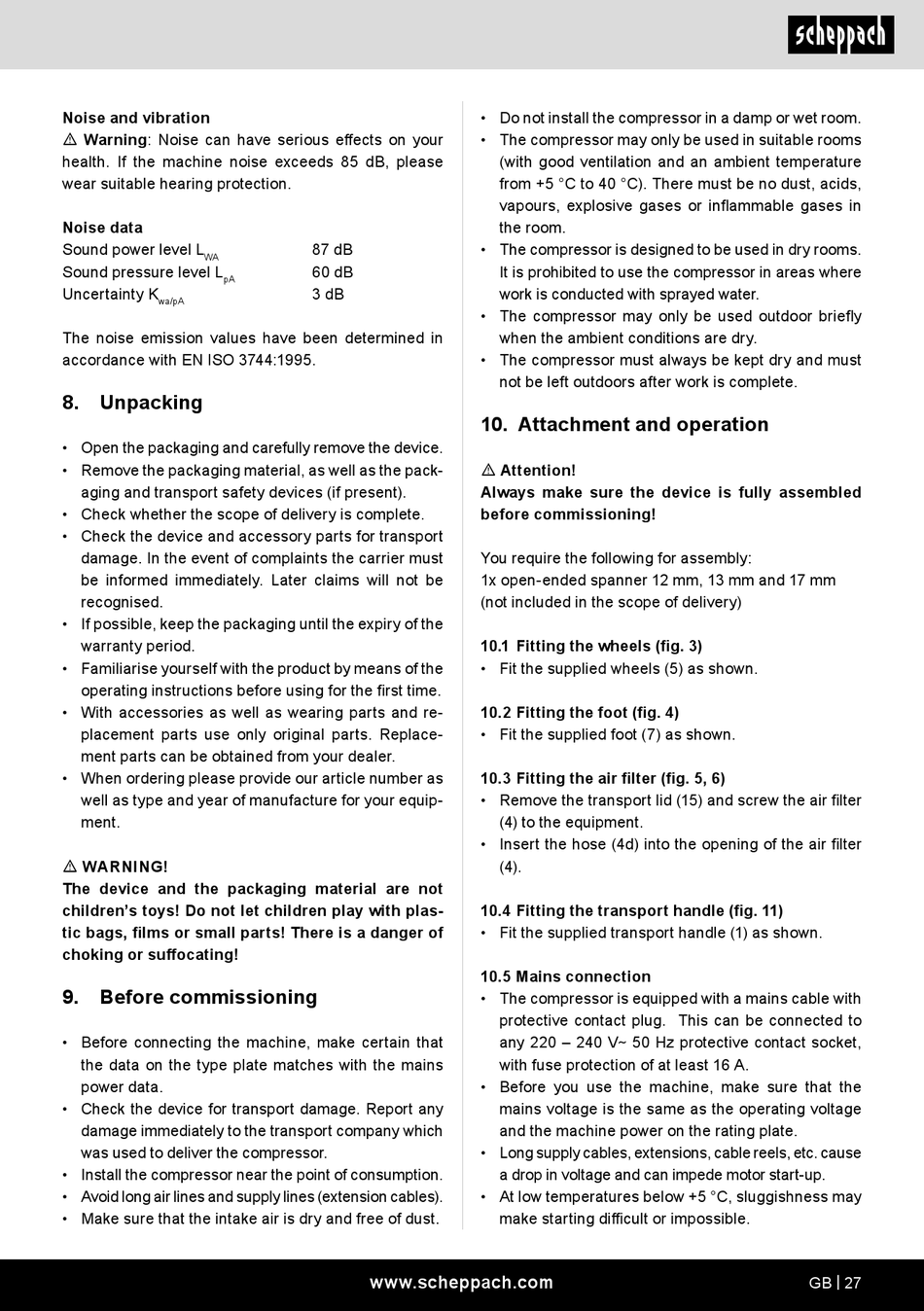

Scheppach HC25Si Originalbetriebsanleitung Seite 27

Noise and vibration
m Warning: Noise can have serious e ects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
The noise emission values have been determined in
accordance with EN ISO 3744:1995.
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the rst time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, lms or small parts! There is a danger of
choking or su ocating!
9. Before commissioning
• Before connecting the machine, make certain that
the data on the type plate matches with the mains
power data.
• Check the device for transport damage. Report any
damage immediately to the transport company which
was used to deliver the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension cables).
• Make sure that the intake air is dry and free of dust.
• Do not install the compressor in a damp or wet room.
• The compressor may only be used in suitable rooms
87 dB • The compressor is designed to be used in dry rooms.
60 dB
3 dB
• The compressor may only be used outdoor brie y
• The compressor must always be kept dry and must
10. Attachment and operation
m Attention!
Always make sure the device is fully assembled
before commissioning!
You require the following for assembly:
1x open-ended spanner 12 mm, 13 mm and 17 mm
(not included in the scope of delivery)
10.1 Fitting the wheels ( g. 3)
• Fit the supplied wheels (5) as shown.
10.2 Fitting the foot ( g. 4)
• Fit the supplied foot (7) as shown.
10.3 Fitting the air lter ( g. 5, 6)
• Remove the transport lid (15) and screw the air lter
• Insert the hose (4d) into the opening of the air lter
10.4 Fitting the transport handle ( g. 11)
• Fit the supplied transport handle (1) as shown.
10.5 Mains connection
• The compressor is equipped with a mains cable with
• Before you use the machine, make sure that the
• Long supply cables, extensions, cable reels, etc. cause
• At low temperatures below +5 °C, sluggishness may
www.scheppach.com
(with good ventilation and an ambient temperature
from +5 °C to 40 °C). There must be no dust, acids,
vapours, explosive gases or in ammable gases in
the room.
It is prohibited to use the compressor in areas where
work is conducted with sprayed water.
when the ambient conditions are dry.
not be left outdoors after work is complete.
(4) to the equipment.
(4).
protective contact plug. This can be connected to
any 220 ‒ 240 V∼ 50 Hz protective contact socket,
with fuse protection of at least 16 A.
mains voltage is the same as the operating voltage
and the machine power on the rating plate.
a drop in voltage and can impede motor start-up.
make starting di cult or impossible.
