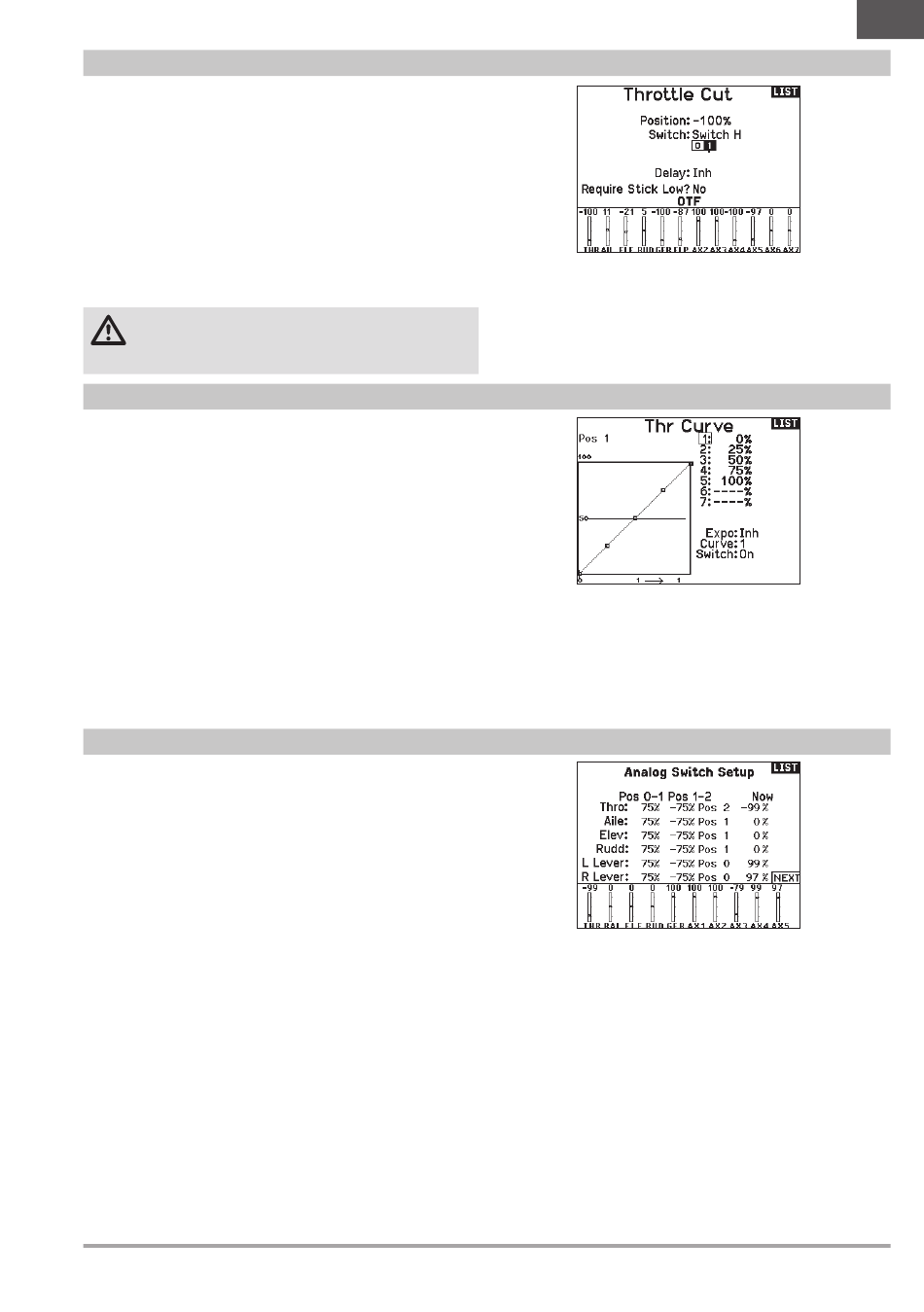

Throttle Cut
The Throttle Cut menu* option enables you to assign a switch
position to stop an engine or motor. Throttle Cut activates
regardless of Flight Mode.
When you activate Throttle Cut, the throttle channel moves to the
pre-programmed position (normally Off).
You may need to use a negative value to move the Throttle channel
to the off position.
Require Stick Low?
When enabled, this option requires the throttle stick to be
reduced to zero after throttle cut is released, before normal
throttle operation will resume. This helps prevent accidental motor
operation when throttle cut is turned off.
CAUTION: Always test the model after making
adjustments to make sure the model responds to
controls as desired.
Throttle Curve
You can use the Throttle Curve
response. A maximum of 7 points are available on the throttle curve.
To add points to a throttle curve:
1. Move the throttle stick to the position where you wish to add
the new point.
2. Scroll to Add Pt. and press the scroll wheel to add the point.
To remove points from a throttle curve:
1. Move the Throttle stick until the cursor is near the point you
wish to remove.
2. Scroll to Remove Pt. and press the scroll wheel once to
remove the point.
If you program multiple throttle curves and you wish to edit one of
the curves, that curve must be active in the Throttle Curve screen
before you can make any changes.
*Not enabled by default in sailplane type. If you need motor control features on a sailplane, select your motor control input stick or
switch in the Sytem Setup ->Sailplane type, select Motor: and change from Inhibit.
Analog Switch Setup
Allows all sticks, knobs, and sliders to be used as a kick point to
turn on functions like mixes. A kick point is the position along the
travel where the stick acts like a switch.
To add a kick point:
1. Move the control stick, lever or knob to the desired kick point
position.
2. Scroll to the desired kick point and press the scroll wheel once
to save the selection.
To delete a kick point, scroll to the desired kick point and press the
Clear button.
