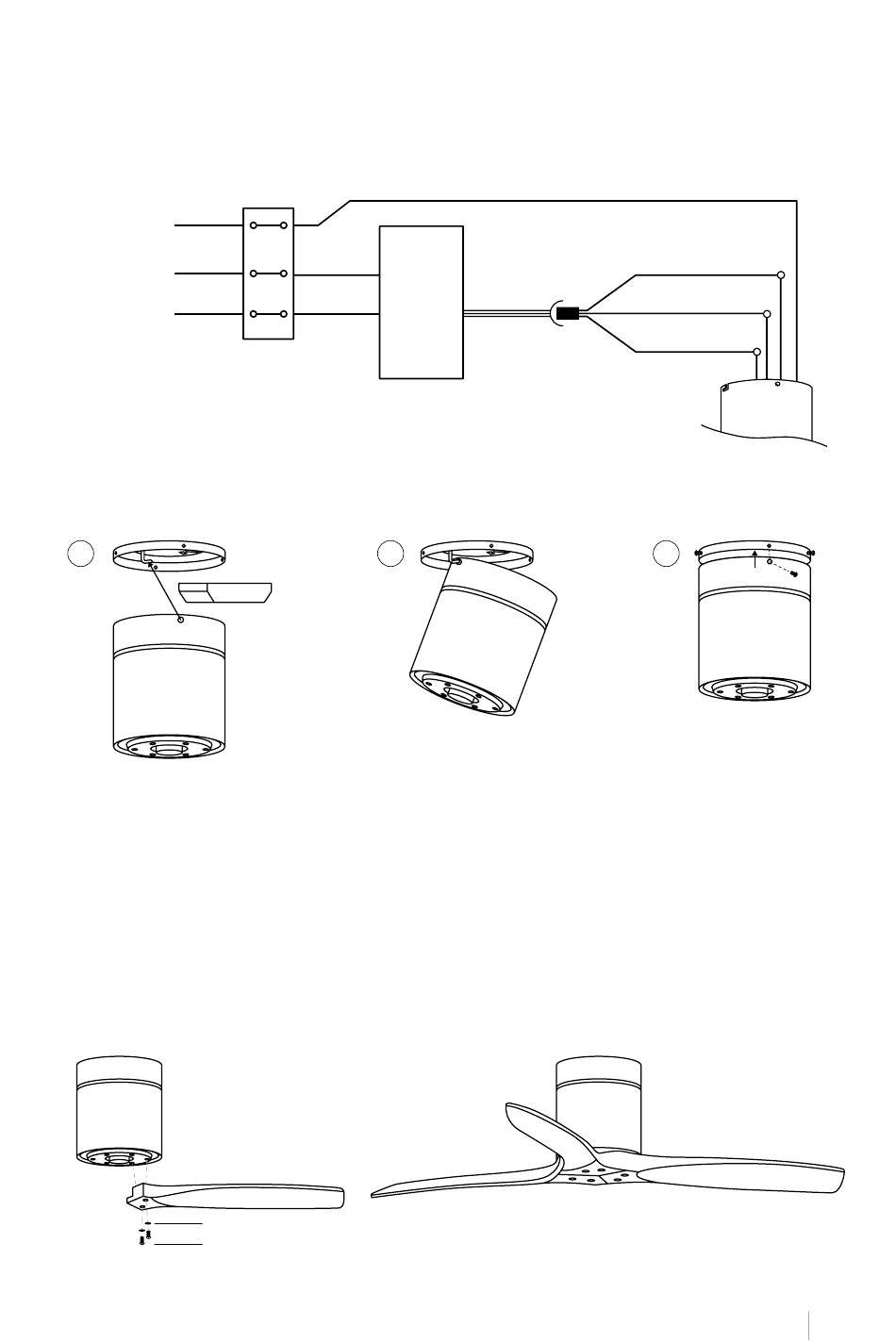

W IRING CON N ECT IO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is tight.
Ground
L
N
RECE IV E R PL ACE ME NT
1
1. Insert the driver inside the motor body.
2. Hook the engine body onto the left hook of the body mount and route the wiring so it does
not get pinched.
3. Position the motor body so that the holes fit and then screw the 4 body bracket screws to
the motor body.
Note: Make sure that the motor body is perfectly installed to the ceiling.
B L ADE AS SE MB LY
WITHOUT LIGHT
Washer
Blade screw
Ground (green/yellow)
L input
(black)
Remote
control
receiver
Input N
(white)
2
DC L motor (gray)
DC L motor (pink)
DC L motor (red)
3
