MOUNTING THE WIRELESS RECEIVER
The installation must be performed by a
qualified electrician!
Attention! Use the device indoors only!
Connection Example 1
The receiver can be installed flush-mounted
GB
or surface-mounted in a junction box, switch
box, or outlet box with a minimum diameter
of 60 mm.
Connection Example 2
For exhaust systems with fan speed control,
the receiver is installed in the fan motor
power line, allowing the lighting to function
independently of the receiver's state
(see diagram).
WARNING: Ensure that the power
consumption of the connected device
is equal to or less than the receiver's
switching capacity.
MOUNTING THE WINDOW
TRANSMITTER

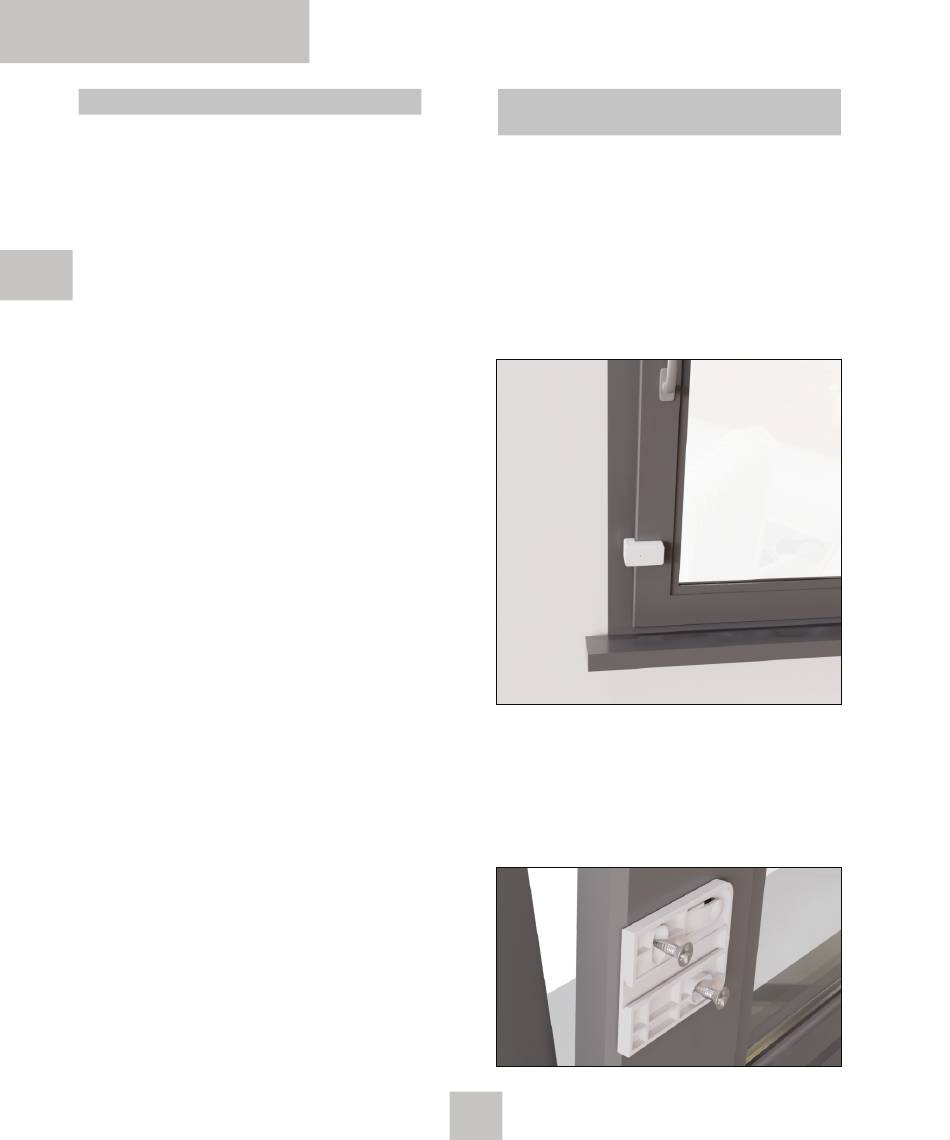

Install the window transmitter on the sash
of the window to be monitored. Ensure the
minimum gap size is maintained (see
"Minimum Window Opening"). Adjust the
distance between the transmitter and the
hinge to influence the opening angle. The
closer the transmitter is to the hinge, the
wider the window must open to be
recognized as open.
1. Secure the mounting plate (5) to the
window using screws.
2. Use the included tool (6) to turn the
pressure switch clockwise until it is
fully inserted into the housing.
