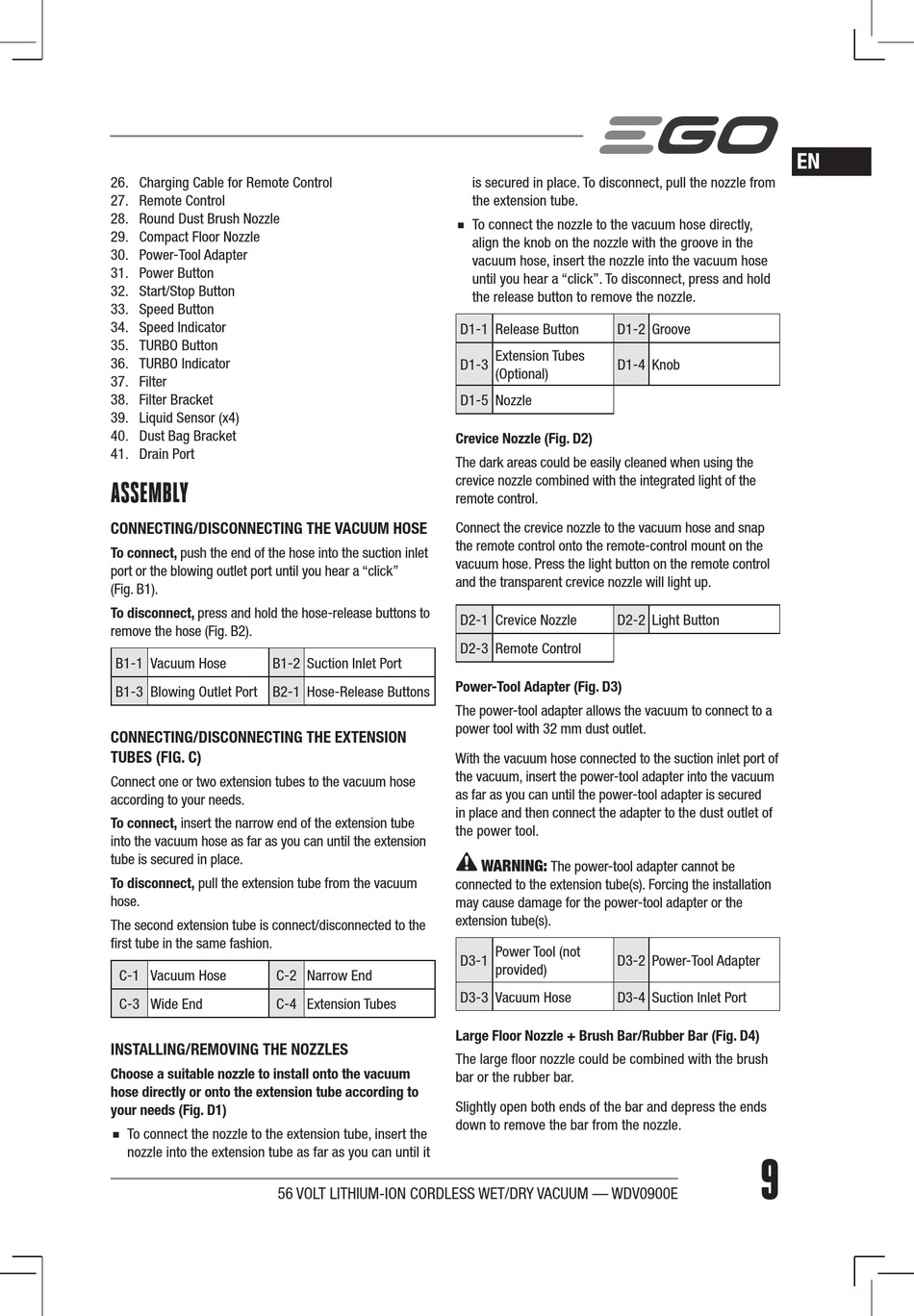

26. Charging Cable for Remote Control
27. Remote Control
28. Round Dust Brush Nozzle
29. Compact Floor Nozzle
30. Power-Tool Adapter
31. Power Button
32. Start/Stop Button
33. Speed Button
34. Speed Indicator
35. TURBO Button
36. TURBO Indicator
37. Filter
38. Filter Bracket
39. Liquid Sensor (x4)
40. Dust Bag Bracket
41. Drain Port
ASSEMBLY
CONNECTING/DISCONNECTING THE VACUUM HOSE
To connect, push the end of the hose into the suction inlet
port or the blowing outlet port until you hear a "click"
(Fig. B1).
To disconnect, press and hold the hose-release buttons to
remove the hose (Fig. B2).
B1-1 Vacuum Hose B1-2 Suction Inlet Port
B1-3 Blowing Outlet Port B2-1 Hose-Release Buttons
CONNECTING/DISCONNECTING THE EXTENSION
TUBES (FIG. C)
Connect one or two extension tubes to the vacuum hose
according to your needs.
To connect, insert the narrow end of the extension tube
into the vacuum hose as far as you can until the extension
tube is secured in place.
To disconnect, pull the extension tube from the vacuum
hose.
The second extension tube is connect/disconnected to the
first tube in the same fashion.
C-1 Vacuum Hose C-2 Narrow End
C-3 Wide End C-4 Extension Tubes
INSTALLING/REMOVING THE NOZZLES
Choose a suitable nozzle to install onto the vacuum
hose directly or onto the extension tube according to
your needs (Fig. D1)
◾
To connect the nozzle to the extension tube, insert the
nozzle into the extension tube as far as you can until it
56 VOLT LITHIUM-ION CORDLESS WET/DRY VACUUM — WDV0900E
is secured in place. To disconnect, pull the nozzle from
the extension tube.
◾
To connect the nozzle to the vacuum hose directly,
align the knob on the nozzle with the groove in the
vacuum hose, insert the nozzle into the vacuum hose
until you hear a "click". To disconnect, press and hold
the release button to remove the nozzle.
D1-1 Release Button D1-2 Groove
Extension Tubes
D1-3 D1-4 Knob
(Optional)
D1-5 Nozzle
Crevice Nozzle (Fig. D2)
The dark areas could be easily cleaned when using the
crevice nozzle combined with the integrated light of the
remote control.
Connect the crevice nozzle to the vacuum hose and snap
the remote control onto the remote-control mount on the
vacuum hose. Press the light button on the remote control
and the transparent crevice nozzle will light up.
D2-1 Crevice Nozzle D2-2 Light Button
D2-3 Remote Control
Power-Tool Adapter (Fig. D3)
The power-tool adapter allows the vacuum to connect to a
power tool with 32 mm dust outlet.
With the vacuum hose connected to the suction inlet port of
the vacuum, insert the power-tool adapter into the vacuum
as far as you can until the power-tool adapter is secured
in place and then connect the adapter to the dust outlet of
the power tool.
WARNING:
The power-tool adapter cannot be
connected to the extension tube(s). Forcing the installation
may cause damage for the power-tool adapter or the
extension tube(s).
Power Tool (not
D3-1 D3-2 Power-Tool Adapter
provided)
D3-3 Vacuum Hose D3-4 Suction Inlet Port
Large Floor Nozzle + Brush Bar/Rubber Bar (Fig. D4)
The large floor nozzle could be combined with the brush
bar or the rubber bar.
Slightly open both ends of the bar and depress the ends
down to remove the bar from the nozzle.
