To install the bar, push the ends of the bar into the holes
of the nozzle until you hear a "click".
D4-1 Large Floor Nozzle
D4-3 Rubber Bar
INSTALLING/REMOVING THE POWER HEAD
ASSEMBLY
To install, push the lower parts of the dust tank latches,
lower the power head assembly onto the dust tank, and
then push the upper parts of the dust tank latches
(Fig. E1 & E2).
To remove, push the lower parts of the dust tank, and
then lift the power head assembly (Fig. E3).
INSTALLING/REMOVING THE DUST BAG
1. Unlock the dust tank and lift the power head
assembly.
2. To install, insert only the plate of the dust bag into
the slot of the dust bag bracket until the plate falls
down the ribs. Unfold the dust bag manually before
collecting dust or debris (Fig. F1).
To remove, slightly lift the plate over the ribs and
then pull the plate from the slot to remove the dust
bag (Fig. F2).
F1-1 Dust Bag Bracket
F1-3 Dust Bag
F2-1 Ribs
OPERATION
APPLICATION
You may use this product for the purposes listed below:
◾
Sucking in liquid waste or dry dust when the suction
inlet port is used.
◾
Functioning as a blower when the blowing outlet port
is used.
ATTACHING/DETACHING THE BATTERY PACK
Use only with EGO's battery packs and chargers listed in
Fig. A3.
Refer to corresponding battery packs and chargers
manuals for more details.
Fully charge before first use.
10

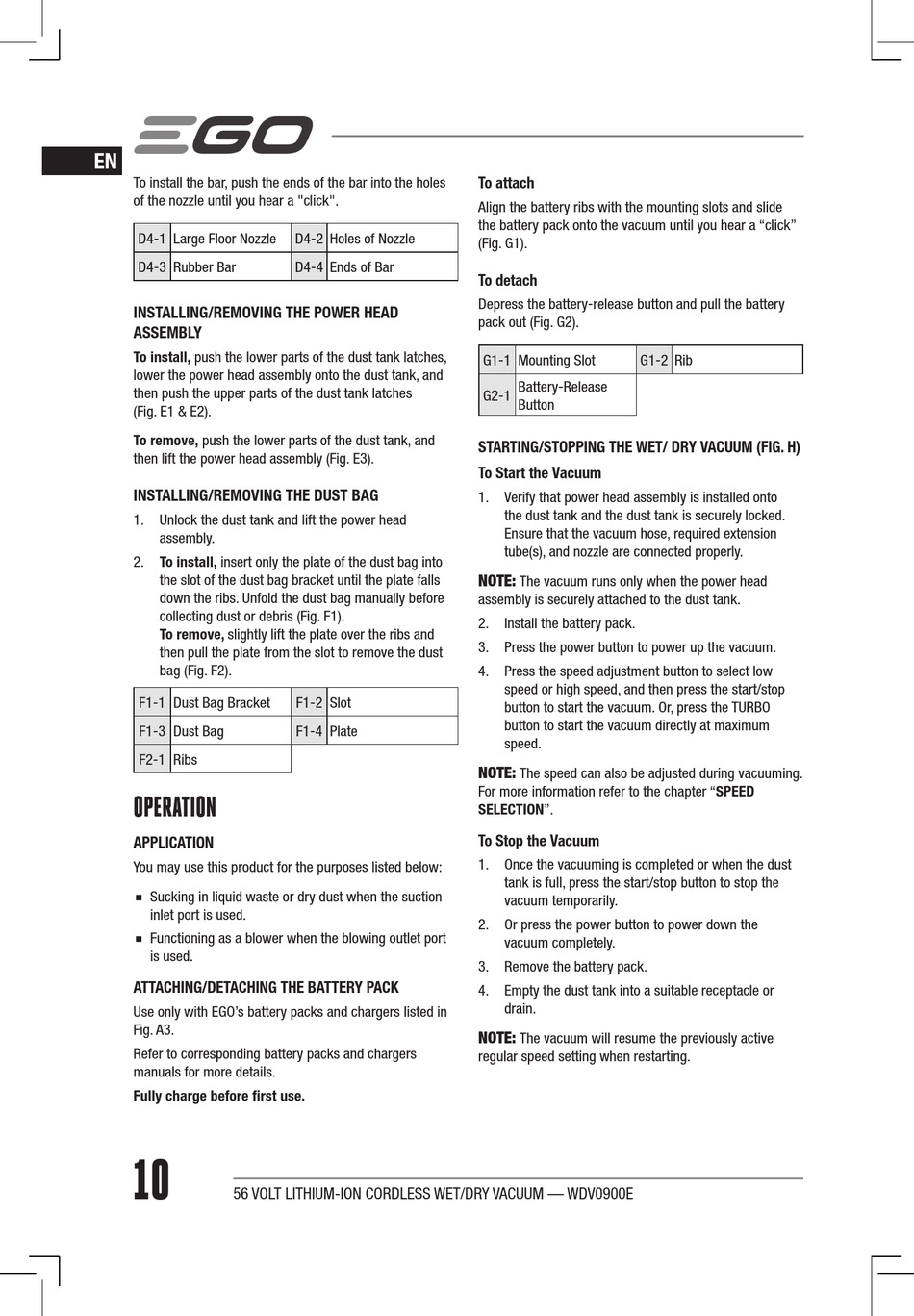

56 VOLT LITHIUM-ION CORDLESS WET/DRY VACUUM — WDV0900E
D4-2 Holes of Nozzle
D4-4 Ends of Bar
F1-2 Slot
F1-4 Plate
To attach
Align the battery ribs with the mounting slots and slide
the battery pack onto the vacuum until you hear a "click"
(Fig. G1).
To detach
Depress the battery-release button and pull the battery
pack out (Fig. G2).
G1-1 Mounting Slot
G1-2 Rib
Battery-Release
G2-1
Button
STARTING/STOPPING THE WET/ DRY VACUUM (FIG. H)
To Start the Vacuum
1. Verify that power head assembly is installed onto
the dust tank and the dust tank is securely locked.
Ensure that the vacuum hose, required extension
tube(s), and nozzle are connected properly.
NOTE:
The vacuum runs only when the power head
assembly is securely attached to the dust tank.
2. Install the battery pack.
3. Press the power button to power up the vacuum.
4. Press the speed adjustment button to select low
speed or high speed, and then press the start/stop
button to start the vacuum. Or, press the TURBO
button to start the vacuum directly at maximum
speed.
NOTE:
The speed can also be adjusted during vacuuming.
For more information refer to the chapter "SPEED
SELECTION".
To Stop the Vacuum
1. Once the vacuuming is completed or when the dust
tank is full, press the start/stop button to stop the
vacuum temporarily.
2. Or press the power button to power down the
vacuum completely.
3. Remove the battery pack.
4. Empty the dust tank into a suitable receptacle or
drain.
NOTE:
The vacuum will resume the previously active
regular speed setting when restarting.
